Description

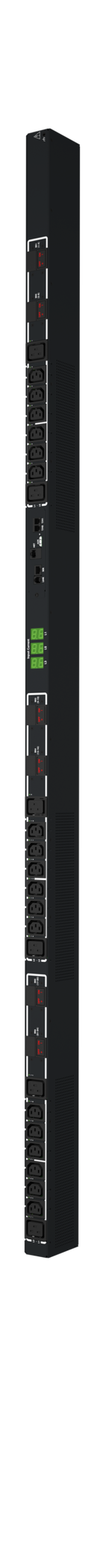

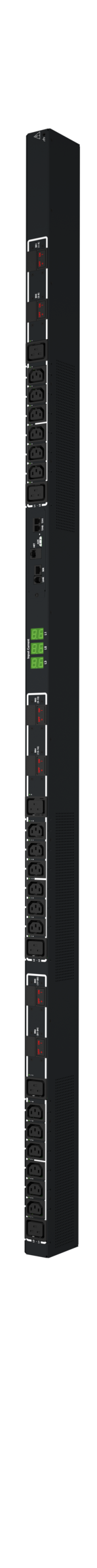

The Server Technology® PRO2 C1WG24VT-YQBA54F2 Switched POPS PDU (Primary) is engineered to deliver reliable, intelligent power distribution for high-density data center environments. With Per Outlet Power Sensing (POPS®), IT personnel gain real-time visibility into current, voltage, power, power factor, crest factor, and energy usage at each outlet, ensuring precise load management.
This PDU features 24 outlets (18x C13, 6x C19), supports 208V Wye 60A input, and offers branch circuit protection with UL-rated breakers. Its built-in network monitoring enables secure access via HTTP(S), SSH, Telnet, SNMP, and more. The hot-swap network card, temperature/humidity monitoring, and star multi-linking capability provide flexibility, redundancy, and reliability.
Designed for modern data centers, the C1WG24VT operates safely in 60°C environments, includes high-retention locking outlets, and offers flexible mounting options with color-coded PDU choices. Backed by a 2-year limited warranty, this PDU is ideal for enterprises demanding accurate metering, outlet control, and resilient infrastructure.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Series | PRO2 |
| Model / SKU | C1WG24VT-YQBA54F2 (Primary) |
| PDU Type | Switched POPS (Per Outlet Power Sensing) |
| Outlets | (18) x IEC 60320 C13, (6) x IEC 60320 C19 |
| Input Voltage | 208V Wye, 50/60 Hz |
| Input Plug | IEC 60309 3P+N+G, 60A, 9Hr |
| Input Current / Rated | 60A / 48A |
| Power Capacity | 17.3 kW |
| Branch Circuit Protection | 6x UL 489 compliant 20A trip circuit breakers |
| Dimensions (HxWxD) | 70.0" x 1.75" x 3.5" (1778 x 45 x 89 mm) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -30°C to 80°C (-22°F to 176°F) |
| Humidity Range | 8%–90% RH non-condensing |
| Elevation | Operating: 6,500 ft / Storage: 50,000 ft |
| Network Interfaces | 10/100/1000 Mbps Ethernet (RJ-45), RS-232 serial |
| Protocols | HTTP/HTTPS, SSH, Telnet, SNMPv2c/v3, LDAP/LDAPS, RADIUS, TACACS+, FTP/SFTP |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (extended options available) |
