Description

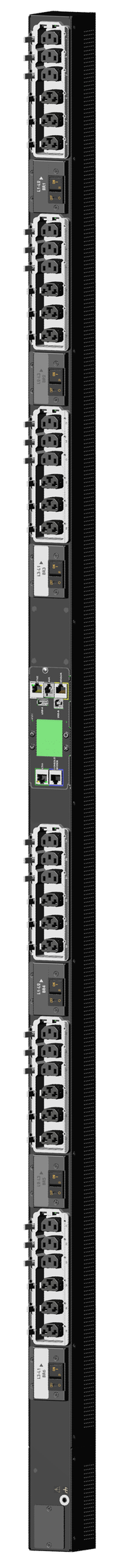

The Server Technology® PRO3X Switched POPS PDU (C3WG36RL-DQJE2MT2) delivers next-generation power distribution and monitoring for demanding data center environments. Built on the advanced Xerus Technology Platform, it combines PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing) for precise billing-grade measurement of power metrics at every level—inlet, outlet, and branch circuit.
Equipped with HDOT Cx outlets, this PDU supports both C14 and C20 plugs, offering maximum flexibility. The RamLock locking mechanism ensures reliable connections, while multi-unit linking and cascading simplifies management with up to 16 PDUs controlled via a single IP. The multi-color LCD, hot-swappable controller, and robust environmental monitoring (temperature, humidity, airflow, water, dry contact, etc.) make it ideal for mission-critical operations.
With outlet-level switching, administrators can remotely cycle power to outlets for server reboots or disable unused receptacles. Designed for durability, it supports safe operation in 60°C environments, includes flexible mounting options, and complies with UL/IEC 62368-1 safety standards.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand Group) |
| Product Line | PRO3X |
| Model / Part Number | C3WG36RL-DQJE2MT2 |
| Product Type | Switched POPS PDU |
| Input Voltage | 208V, 50/60Hz |
| Input Plug | IEC 60309, 3P+G, 60A, 9Hr |
| Input Current (Rated/Max) | 48A / 60A |
| Input Power Capacity | 17.3 kW |
| Outlets | 18 × IEC C13 (≤12A @208V L-L) 18 × HDOT Cx (≤16A @208V L-L) |
| Outlet Features | RamLock locking, Outlet-level switching |
| Branch Circuit Protection | (6) 2-pole, 20A UL 489 breakers, 10 kAIC |
| Monitoring | PIPS® (inlet) + POPS® (outlet) + Branch current monitoring |
| Communications | Dual Gigabit Ethernet, RS-232, USB-A/B, Wi-Fi (optional) |
| Protocols Supported | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, Syslog, LDAP(S), RADIUS, FTP/SFTP |
| Environmental Sensors | Supports up to 12 Legrand DX2 SmartSensors |
| Operating Temp | 32°F to 140°F (0°C to 60°C) |
| Dimensions (HxWxD) | 70.0 × 2.2 × 2.5 in (1778 × 56 × 64 mm) |
| Weight | [Refer to datasheet if required] |
| Certifications | UL 62368-1, CSA 62368-1, FCC Class A, CAN ICES-003 Class A |
| Country of Origin | United States |
| Warranty | Standard 2-year limited; extended support available |
