Description

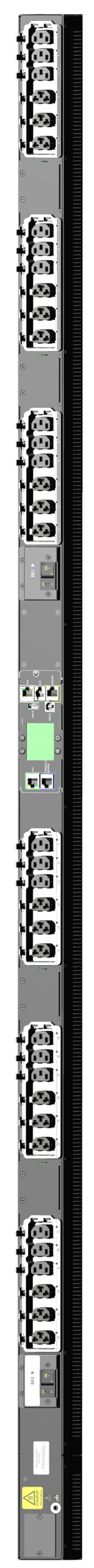

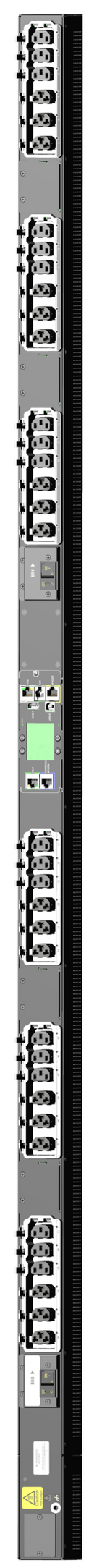

The Server Technology PRO3X C3WG36RL-2CJE2MT4 Switched POPS PDU is a next-generation intelligent power distribution unit designed for enterprise-grade data centers. Built on the Xerus Technology Platform, it integrates advanced monitoring, outlet control, and environmental sensing to maximize uptime and efficiency.
Featuring RamLock HDOT outlets, this PDU provides hybrid Cx receptacles that support both C13 and C19 plugs, offering unmatched flexibility. With Per Inlet Power Sensing (PIPS®) and Per Outlet Power Sensing (POPS®), administrators gain precise visibility into load, voltage, power, and energy consumption.
Engineered for reliability, the unit supports multi-unit linking, hot-swappable controllers, and environmental monitoring with Legrand DX2 SmartSensors. Its high-temperature rating (up to 60°C) ensures safe operation in demanding rack environments. With branch circuit protection, outlet-level control, and multi-color LCD monitoring, the PRO3X delivers best-in-class power distribution for mission-critical IT infrastructure.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO3X |
| Model / SKU | C3WG36RL-2CJE2MT4 |
| Product Type | Switched POPS PDU |
| Outlets | 18 × IEC 60320 C13, 18 × Cx (hybrid C13/C19) |
| Input Voltage | 208V AC |
| Input Plug | NEMA L6-30P |
| Input Current | 30A (Rated 24A) |
| Power Capacity | 5 kW |
| Frequency | 50/60 Hz |
| Branch Circuit Protection | UL 489 compliant magnetic-hydraulic circuit breakers, 2-pole, 20A trip |
| Monitoring | PIPS® (per-inlet), POPS® (per-outlet), branch current monitoring |
| Outlet Control | Individual & group switching (reboot, power off unused outlets) |
| Communications | Dual Gigabit Ethernet, RS-232, USB-A/B, Sensor & Aux ports, optional Wi-Fi |
| Protocols | HTTP/HTTPS, SSH, Telnet, SNMP v2/v3, LDAP/LDAPS, RADIUS, Syslog |
| LCD Display | Multi-color LCD with power usage & alerts |
| Environmental Monitoring | Supports up to 12 daisy-chained DX2 SmartSensors (temperature, humidity, airflow, leak detection, etc.) |
| Physical Dimensions | 70.0″ H × 2.2″ W × 2.5″ D (1778 × 56 × 64 mm) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited parts & labor (extended options available) |
