Description
The Server Technology PRO2 C2WG12SM-EPJA2D3 Switched POPS PDU delivers reliable power distribution with advanced monitoring and outlet-level control for high-density data centers. Featuring PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing) technologies, this unit ensures billing-grade accuracy for current, voltage, power, and energy measurements.

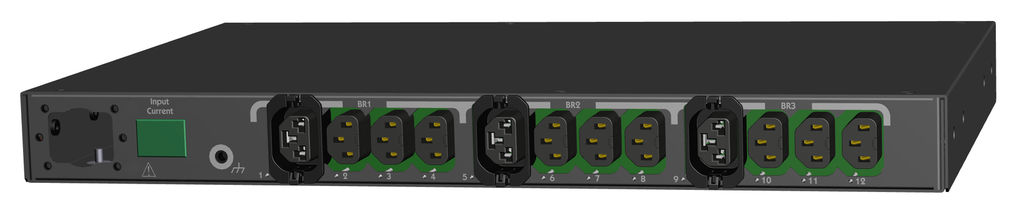

Equipped with HDOT Cx hybrid outlets, the PDU accommodates both C14 and C20 plugs, offering maximum flexibility and secure connections. With built-in network monitoring, hot-swap network cards, and multi-linking capabilities, IT teams can manage multiple circuits using one IP address. Additional features include branch circuit protection, SNMP-based alerts, and support for environmental monitoring via external probes.
Designed for mission-critical uptime, the C2WG12SM-EPJA2D3 provides outlet control for server reboots, high-retention locking outlets, and a rugged build tested for 60°C environments.
| Category | Details |
|---|---|
| Manufacturer | Server Technology, Inc (Legrand) |
| Product Series | PRO2 Switched POPS |
| Model | C2WG12SM-EPJA2D3 (Primary) |
| Form Factor | 1U rack-mountable |
| Input Voltage | 230V, 50/60Hz |
| Input Plug | IEC 230V/32A 2P+PE 6Hr |
| Input Current | 32A |
| Power Capacity | 7.3 kW |
| Outlets | 9 × IEC 60320 C13 (≤10A @230V) 3 × Cx Hybrid Outlets (≤16A @230V) |
| Monitoring | PIPS® (per inlet) and POPS® (per outlet) measurements Branch current monitoring |
| Communications | 10/100/1000 Ethernet (RJ-45), RS-232, SNMP v2/v3, HTTP/HTTPS, SSH, Telnet, FTP/SFTP |
| Environmental Support | 2 × temperature/humidity probe inputs (optional EMTH-2-10 sensors) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Storage Temp | -30°C to 80°C (-22°F to 176°F) |
| Dimensions (HxWxD) | 1.75 in × 17.2 in × 11.57 in (45mm × 437mm × 294mm) |
| Branch Protection | UL 489 magnetic-hydraulic circuit breakers, ≤16A trip, 10 kAIC |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Warranty | 2-year limited warranty, with extended support options available |
