Description

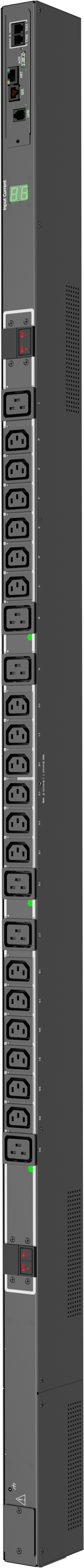

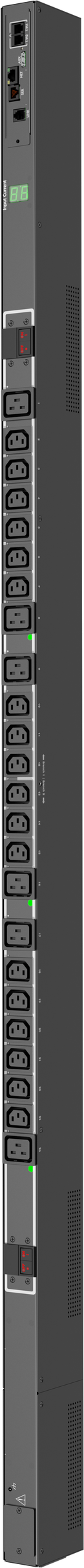

The Server Technology® PRO2 STV-6541K Switched POPS PDU (Primary) delivers advanced power distribution, control, and monitoring for high-density data center environments. Equipped with PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing) technology, it provides highly accurate measurements of current, voltage, active/apparent power, crest factor, power factor, and energy—both at the inlet and outlet levels.
This PDU enables outlet-level switching, allowing IT administrators to remotely cycle power, reboot equipment, or turn off unused receptacles for greater efficiency. With built-in network monitoring, SNMP alerts, and support for environmental sensors, the STV-6541K enhances visibility and control of rack power infrastructure.
Designed with high-retention locking outlets, branch circuit protection, and a high temperature rating up to 60°C, this PDU ensures safety, reliability, and performance in mission-critical deployments. As a Primary unit, it can link with up to three PRO2 “Link” PDUs for expanded network access, all managed through a single IP.
Key Features
-
Switched POPS PDU with per-outlet power monitoring and control
-
PIPS® & POPS® technology for billing-grade accuracy
-
Network monitoring & SNMP alerts via web GUI/CLI
-
Outlet-level switching for remote power management
-
Branch circuit protection with UL-rated breakers
-
High-retention locking outlets for secure connections
-
Hot-swappable network card with backup via linked units
-
High temperature rating – safe operation up to 60°C
-
Flexible mounting options and six color-coded configurations
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Switched POPS |
| Model / SKU | STV-6541K (Primary) |
| Product Type | Rackmount Power Distribution Unit (PDU) |
| Input Voltage | 230 V AC |
| Input Plug | IEC 60309 2P+PE, 32A, 6Hr |
| Input Current | 32A rated |
| Power Capacity | 7.3 kW |
| Frequency | 50/60 Hz |
| Outlets | 24 total: (18) IEC C13 ≤ 10A @ 230V, (6) IEC C19 ≤ 16A @ 230V |
| Outlet Control | Individual and group switching |
| Monitoring | Per Inlet (PIPS®), Per Outlet (POPS®), and Branch Circuit |
| Branch Circuit Protection | 2-pole, 20A trip breakers (UL 489 / IEC 60947-2 compliant) |
| Network Interfaces | 10/100/1000 Mbps Ethernet, RS-232 serial |
| Protocols Supported | HTTP/HTTPS, SSHv2, Telnet, SNMP v2c/v3, LDAP(S), RADIUS, TACACS+, FTP/SFTP |
| Environmental Monitoring | Supports up to (2) temperature/humidity probes |
| Dimensions | 64.0" H x 1.75" W x 3.5" D (1626 x 45 x 89 mm) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Certifications | EN/IEC 62368-1, CE, UKCA, RoHS, EMC compliant |
| Warranty | 2-year limited, extended support available |
