Description

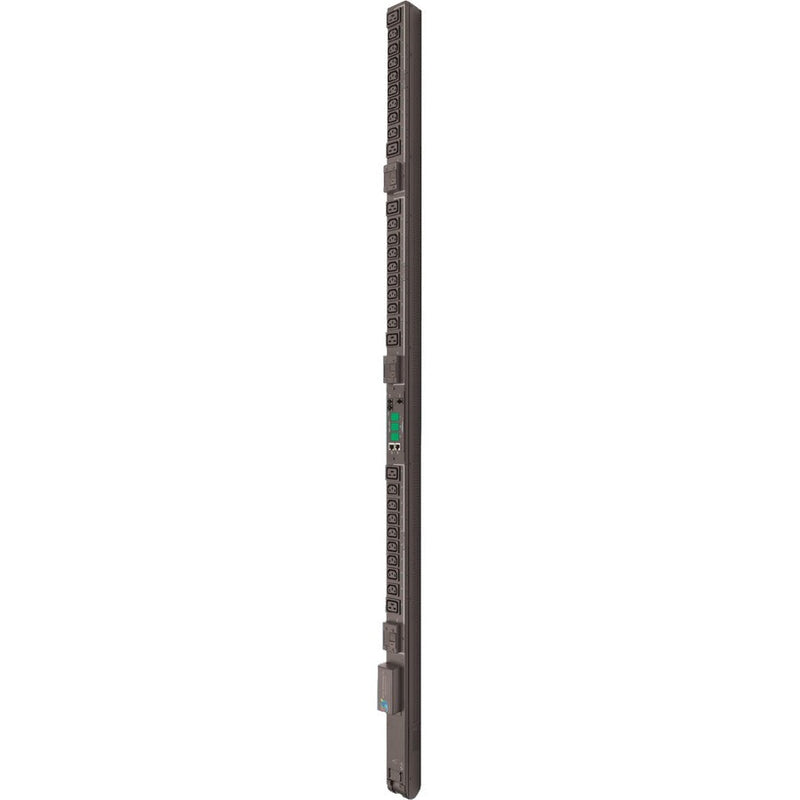

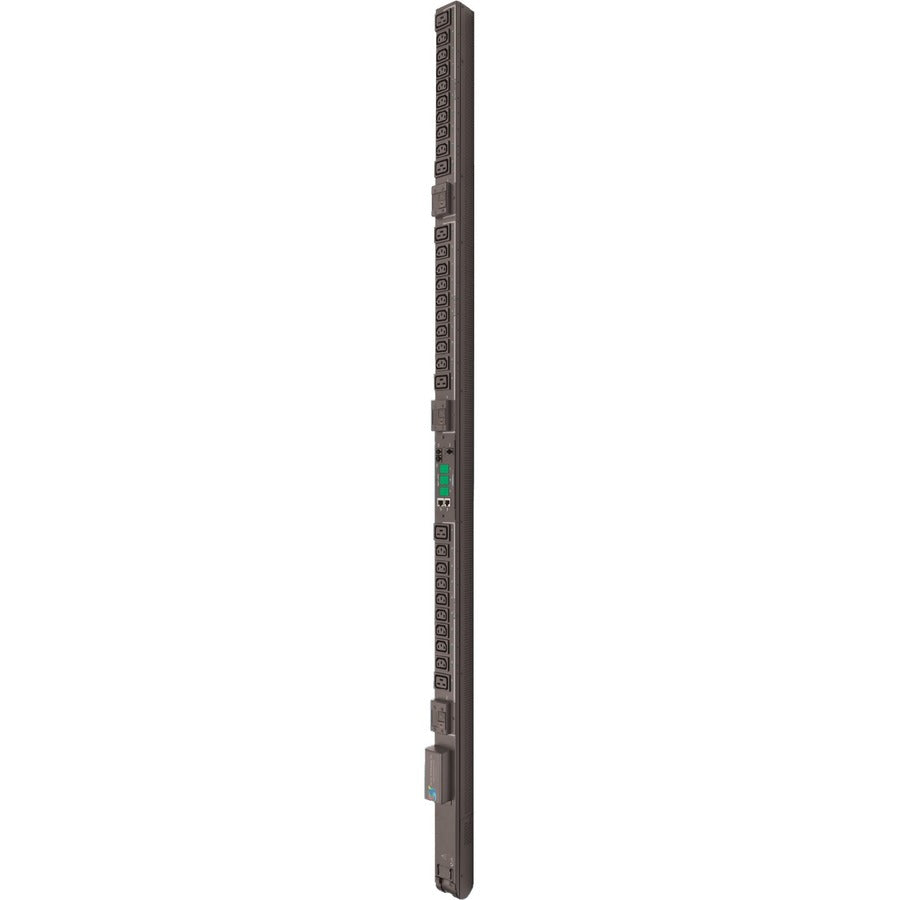

The Server Technology® PRO2 Switched PDU (STV-4502M Primary) delivers advanced power distribution and control for high-density data centers. Equipped with 30 outlets (24 x IEC C13, 6 x IEC C19), this 208V, 30A three-phase rackmount PDU features Per Inlet Power Sensing (PIPS®) for highly accurate billing-grade measurement of current, voltage, power, power factor, crest factor, and accumulated energy.
Designed for reliability, the STV-4502M supports redundant networking with hot-swappable cards, environmental monitoring with temperature/humidity probes, and outlet-level switching to remotely control connected devices. With its flexible mounting, rotatable Power Pivot™ cord, branch circuit protection, and high-retention locking outlets, this PDU ensures safe and efficient operation in demanding 60°C environments.
Whether deployed as a standalone Primary unit or linked to Expansion PDUs, the STV-4502M provides the intelligence, control, and reliability required for today’s mission-critical IT infrastructure.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 Switched PDU |
| Model / SKU | STV-4502M (Primary) |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | NEMA L21-30P |
| Input Current | 30A (24A rated) |
| Power Capacity | 8.6 kW |
| Outlets | 24 × IEC C13 (≤12A each @208V L-L), 6 × IEC C19 (≤16A each @208V L-L) |
| Branch Circuit Protection | UL 489 compliant 2-pole, 20A breakers; 3 branches |
| Monitoring Technology | PIPS® Per Inlet Power Sensing, POPS® per outlet, branch current monitoring |
| Networking & Control | HTTP/HTTPS, SSH, Telnet, SNMP v2c/v3, LDAP(S), TACACS+, RADIUS, FTP/SFTP |
| Sensors | Supports 2 × temperature/humidity probes (3m) |
| Display | Auto-flip LED per-phase current display |
| Physical Dimensions | 69.0 × 2.2 × 2.25 in (1753 × 56 × 58 mm) |
| Environment (Operating) | 0°C to 60°C; 8–90% RH non-condensing; up to 2 km elevation |
| Environment (Storage) | -30°C to 80°C; up to 15 km elevation |
| Certifications | UL 62368-1, CSA 62368-1, FCC Part 15 Class A, ICES-003 Class A |
| Warranty | Standard 2-year limited parts & labor (extendable) |
