Description

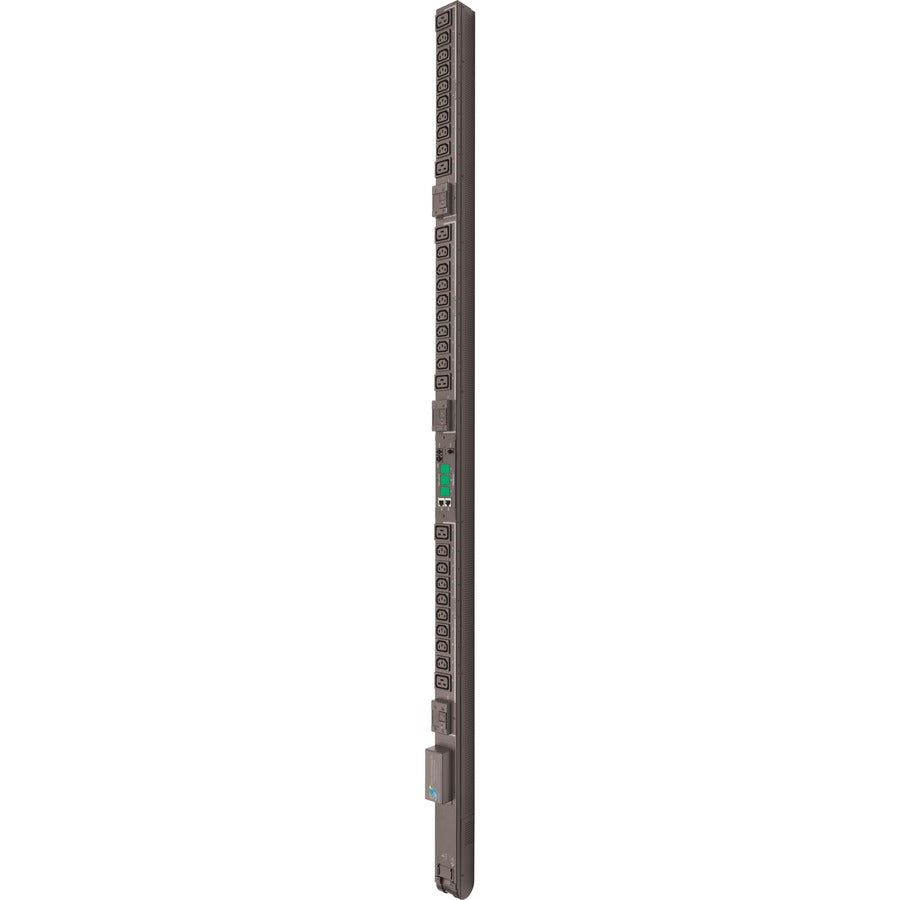

The Server Technology® PRO2 Switched POPS PDU (STV-6502E Primary) delivers intelligent power distribution, advanced outlet-level control, and precise per-inlet and per-outlet power monitoring for mission-critical data centers. Equipped with PIPS® (Per Inlet Power Sensing) and POPS® (Per Outlet Power Sensing), this PDU provides billing-grade accuracy for current, voltage, power, energy, and power factor measurements.
Designed for maximum uptime and flexibility, the STV-6502E supports hot-swappable network cards, Star Multi-Linking of up to four PDUs under one IP address, and SNMP-based alerts for load balancing, branch current monitoring, and environmental conditions. With high retention locking outlets, branch circuit protection, and a rotatable Power Pivot™ cord, it ensures reliable deployment in high-density racks.
The unit features 30 outlets (24 × C13, 6 × C19), a NEMA L15-30P plug, and is engineered for operation in data centers up to 60°C. Backed by Server Technology’s industry-leading support and a standard 2-year warranty, this PDU is ideal for enterprises seeking secure, scalable, and efficient rack power distribution.
| Category | Specification |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO2 |
| Product Type | Switched POPS PDU (Primary) |
| SKU / Part Number | STV-6502E |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | NEMA L15-30P |
| Input Current (Rated) | 24A (30A max) |
| Input Power Capacity | 8.6 kW |
| Outlets | 24 × IEC 60320 C13 (≤12A @208V, 15A peak)6 × IEC 60320 C19 (≤16A @208V, 20A peak) |
| Branch Circuit Protection | UL 489 magnetic-hydraulic circuit breakers, 2-pole, 20A trip, 3 branches |
| Monitoring & Control | PIPS® & POPS® per inlet/outlet monitoring; SNMP v2c/v3; HTTP/HTTPS; SSH; Telnet; CLI |
| Environmental Sensors | Supports 2 × external temperature/humidity probes |
| Dimensions (H×W×D) | 69.0 in × 2.2 in × 2.25 in (1753 mm × 56 mm × 58 mm) |
| Operating Temp. | 32°F to 140°F (0°C to 60°C) |
| Storage Temp. | -22°F to 176°F (-30°C to 80°C) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Network Interface | 10/100/1000 Mbps Ethernet, RS-232 serial, IPv4/IPv6 support |
| Warranty | 2-Year Limited (extended options available) |
| Optional Accessories | EMTH-2-10 probes, EMCU-1-1C environmental monitor, PRO2Link kits, StartUp Stick, cable retention devices |
