Description

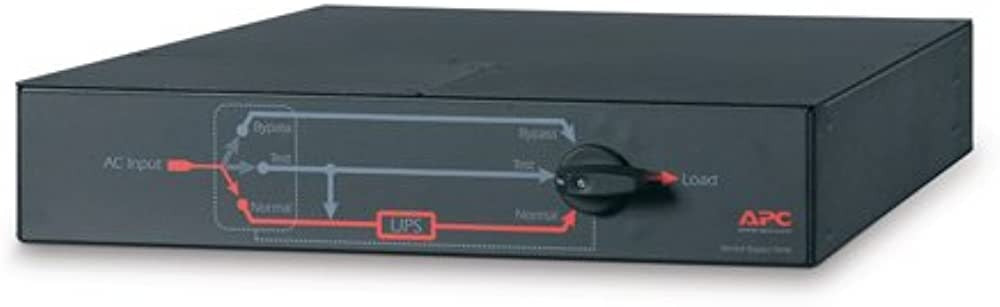

The APC SBP3000RM2U Maintenance Bypass Panel is a rack-mounted service bypass solution designed to maintain continuous power to critical equipment during UPS maintenance or replacement. Installed between the utility power source and the UPS, this bypass panel allows connected loads to be safely transferred to utility power without downtime.
Built for reliability in data centers, network closets, and edge deployments, the SBP3000RM2U supports up to 3000 VA load capacity in a compact 2U rackmount form factor. It features a durable circuit-breaker-protected design, standard NEMA input/output connections, and high operational efficiency. Ideal for environments where uptime is critical, this maintenance bypass panel simplifies servicing while keeping essential systems online.
| Specification | Details |
|---|---|
| Brand | APC |
| Model | SBP3000RM2U |
| Product Type | Maintenance Bypass Panel |
| Rack Height | 2U |
| Mounting Type | Rack-mounted |
| Input Voltage | 100–120 V |
| Output Voltage | 100–120 V |
| Input Connection | NEMA L5-30P |

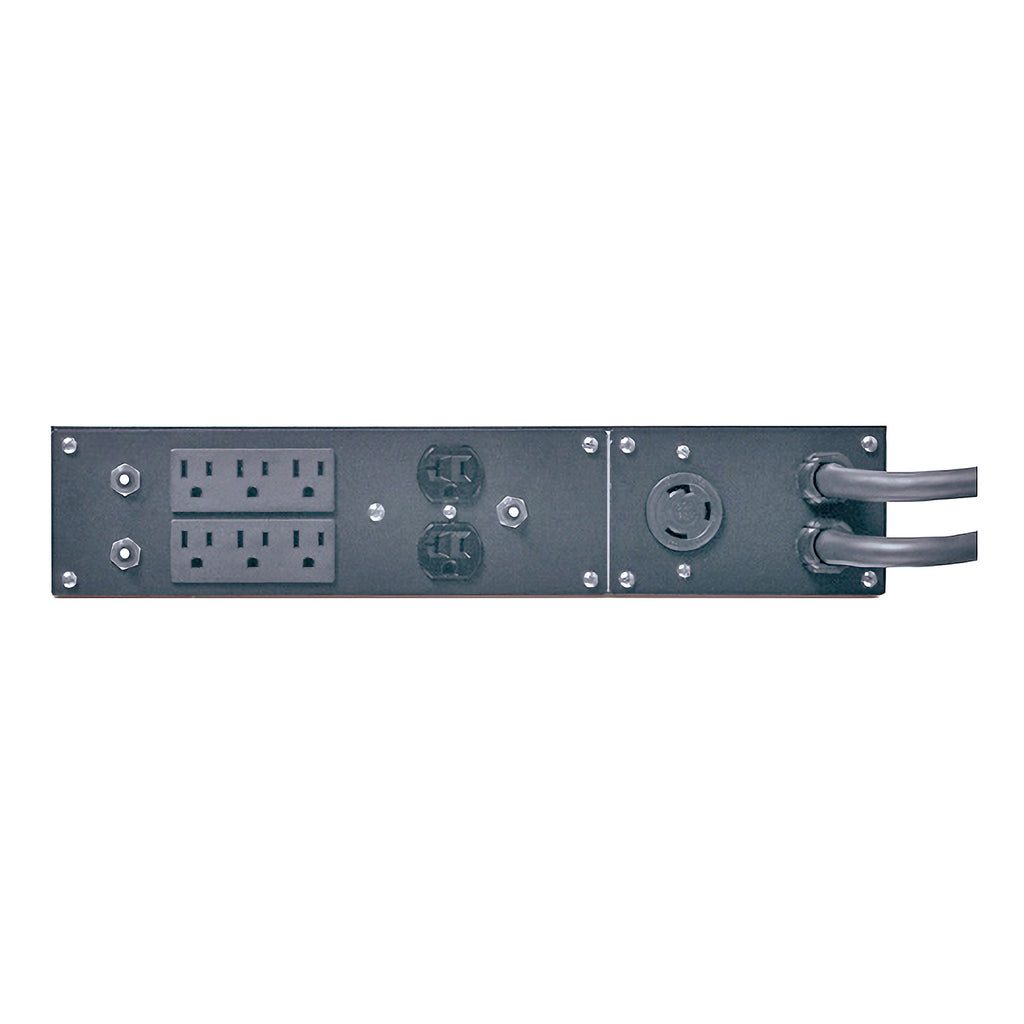

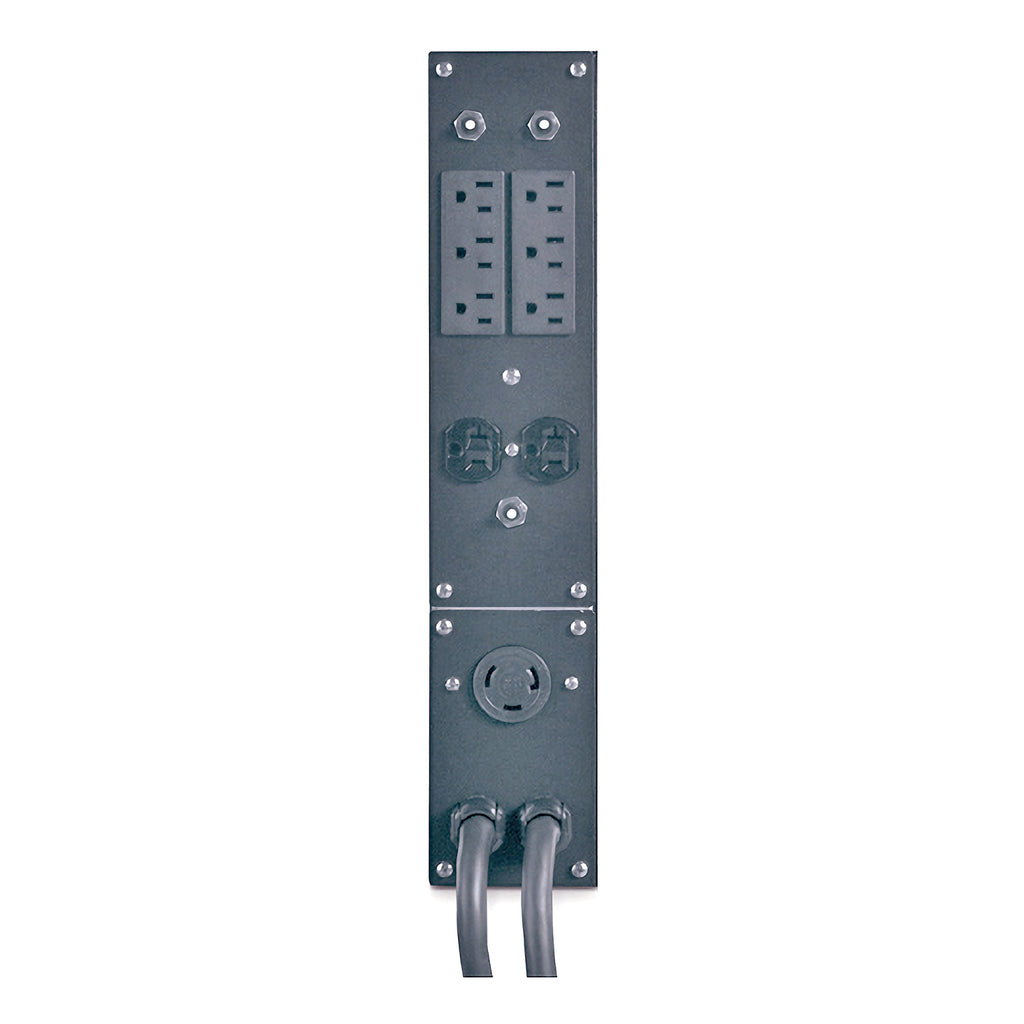

| Output Receptacles | 6 × NEMA 5-15R, 2 × NEMA 5-20R |
| Load Capacity | 3000 VA |
| Maximum Current | 30 A |
| Input Frequency | 50/60 Hz |
| Protection | Circuit Breaker |
| Efficiency | 99% |
| Cable Length | 10 ft (3.05 m) |
| Color | Black |
| Dimensions (H × W × D) | 3.5 × 17.0 × 25.5 in |
| Net Weight | 30.07 lb |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Warranty | 2 Years |
