Description
The Brocade 32Gb/s SWL SFP+ (SKU XBR-000413) is a high-performance, hot-swappable optical transceiver engineered for next-generation Fibre Channel fabrics. Designed to deliver exceptional speed, reliability, and end-to-end compatibility, it connects servers, switches, and storage systems at up to 32 Gb/s, ensuring consistent low-latency throughput for mission-critical workloads.
Optimized for Brocade 32 Gb/s directors and switches, this short-wavelength module supports multi-rate operation at 8 Gb/s, 16 Gb/s, and 32 Gb/s. It features an 850 nm VCSEL transmitter, industry-standard LC duplex interface, and real-time digital diagnostics (SFF-8472) for proactive link monitoring.
Qualified through Brocade’s rigorous certification process, the 32Gb/s SWL SFP+ minimizes downtime, eliminates interoperability issues, and helps data-center teams maintain high-availability infrastructures. It’s compliant with RoHS, IEC 60825-1 Class 1, and all major Fibre Channel specifications for enterprise environments demanding superior reliability and performance.
| Category | Specification |
|---|---|

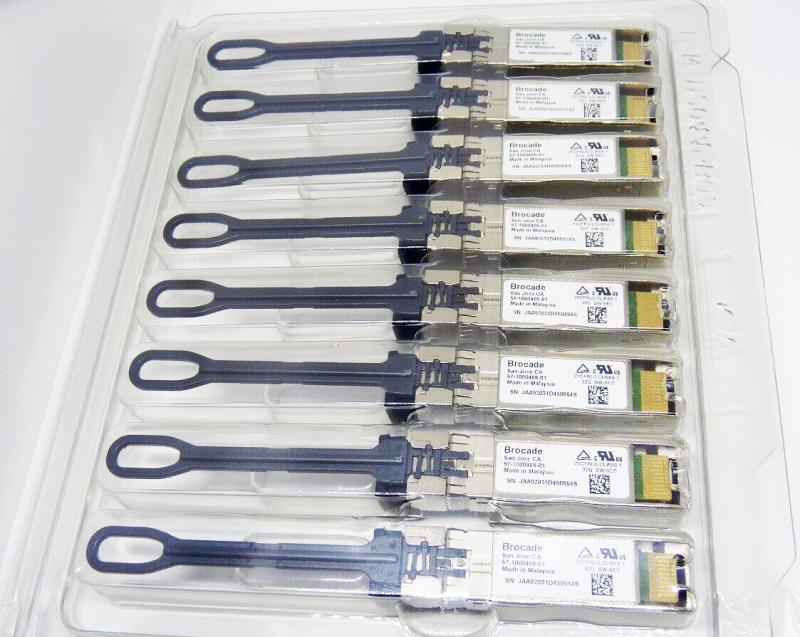

| Model | Brocade 32Gb/s SWL SFP+ – 8 Pack |
| SKU | XBR-000413 |
| Form Factor | SFP+ (optical transceiver) |
| Interface | LC duplex connector |
| Wavelength | 850 nm (VCSEL laser) |
| Supported Speeds | 8.5 / 14.025 / 28.05 Gb/s Fibre Channel (auto-sensing) |
| Link Distance | Up to 100 m (OM4 fiber) @ 32 Gb/s Up to 190 m (OM5 fiber) @ 8 Gb/s |
| Tx Parameters | Avg Power –6.7 to 1.6 dBm • Wavelength 840–860 nm • Spectral Width 0.57 nm |
| Rx Parameters | Avg Power ≤ 2 dBm • Unstressed Sensitivity –10.2 dBm • Optical Return Loss ≥ 12 dB |
| Digital Diagnostics | Monitors Tx/Rx power, laser bias, temperature, and voltage (SFF-8472 DDM) |
| Power Dissipation | 1.0 W (max) |
| Operating Temperature | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Compliance & Safety | UL/CSA 60950, EN 60825 Class 1, RoHS compliant |
| Dimensions (W × H × D) | 14.8 × 12.2 × 56.7 mm (0.58 × 0.48 × 2.23 in) |

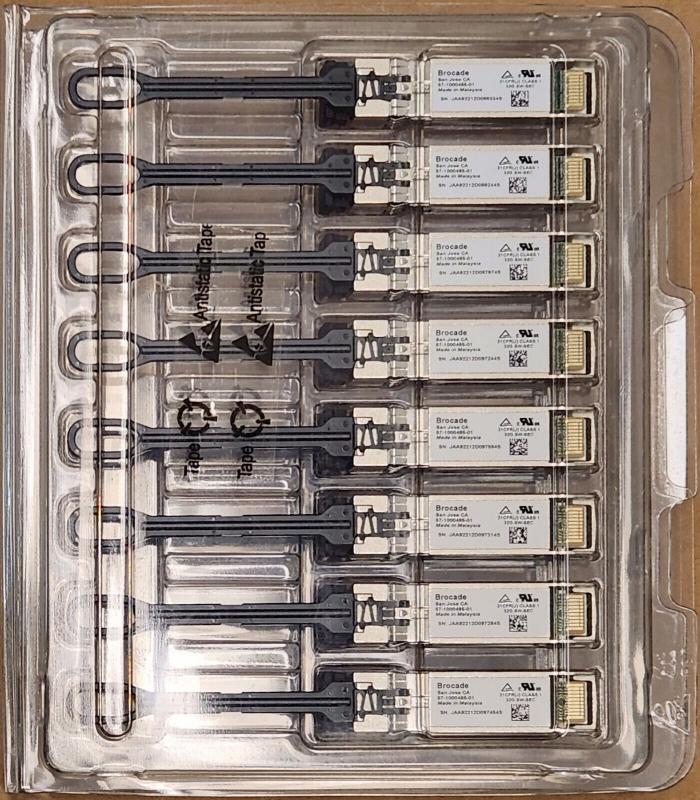

| Package Quantity | 8 Transceivers per pack |
