Description

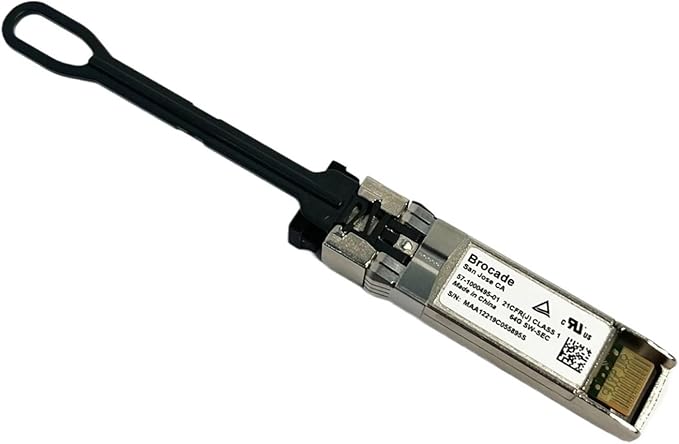

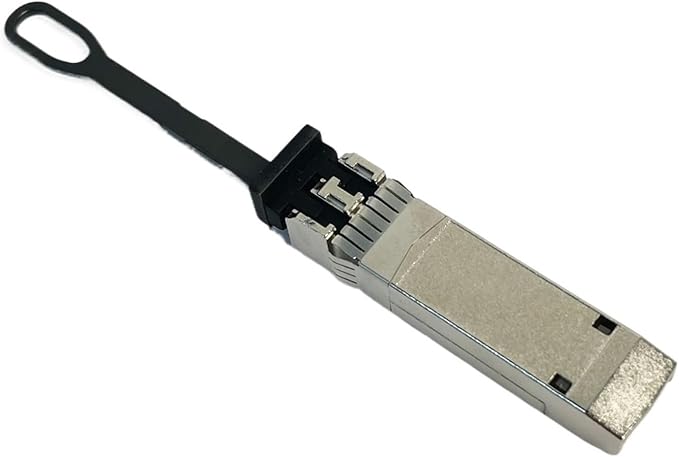

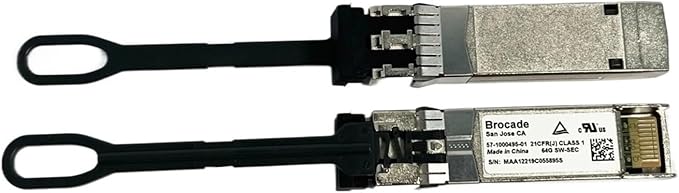

The Brocade XBR-000462 64G SWL SFP+ transceiver delivers next-generation Fibre Channel and Ethernet connectivity with industry-leading performance and reliability. Designed for seamless integration with Brocade Gen 7 directors and switches, this short-wavelength optical module supports data rates of 16G, 32G, and 64G Fibre Channel, as well as 10/25/50 Gb Ethernet operation.
Featuring an 850 nm VCSEL transmitter and LC duplex connector, the module enables high-speed serial links up to 100 m on OM4 multimode fiber. Built to rigorous Broadcom qualification and certification standards, it ensures maximum uptime for mission-critical data-center environments.
The XBR-000462 is hot-swappable, low-voltage (3.3 V), and compliant with FC-PI-7, IEEE 802.3cd, and SFF-8472 diagnostics. Supporting real-time monitoring of transmit/receive power, temperature, bias current, and voltage, it enables proactive maintenance and consistent optical performance.
Ideal for organizations consolidating infrastructure and modernizing SAN environments, this Brocade 64G SWL SFP+ is the foundation for reliable, scalable, and high-performance connectivity.
| Category | Specification |
|---|---|
| Part Number | XBR-000462 (1-Pack) |
| Form Factor | SFP+ (Hot-pluggable, LC duplex connector) |
| Type | Short Wavelength (SWL) Optical Transceiver |
| Compatible Platforms | Brocade Gen 7 Directors and Switches |
| Supported Protocols | 64G/32G/16G Fibre Channel, 50GbE/25GbE/10GbE |
| Data Rate | Up to 57.8 Gb/s (Full Duplex, Auto-sensing) |
| Wavelength Range | 840 nm – 860 nm |
| Transmit (Tx) Power | −7.5 dBm to 4 dBm |
| Receive (Rx) Sensitivity | −7 dBm (200 µW) |
| Connector Type | LC Duplex |
| Fiber Type | Multimode (OM3/OM4/OM5) |
| Maximum Distance | Up to 100 m (OM4 @ 64G FC) |
| Power Dissipation | 1.6 W (typical) |
| Voltage | 3.3 V DC |
| Compliance | FC-PI-7, IEEE 802.3cd, SFF-8472, SFF-8402 |
| Diagnostics | Digital Optical Monitoring (DOM) |
| Laser Type | 850 nm VCSEL, Class 1 Eye-safe |
| Operating Temperature | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage Temperature | −40 °C to 85 °C (−40 °F to 185 °F) |
| Dimensions (W × H × D) | 14.8 mm × 12.21 mm × 56.7 mm |
| Regulatory Compliance | UL/CSA 62368, EN 60950, EN 60825 Class 1 |
| Environmental Compliance | RoHS Compliant |
| Manufacturer | Brocade / Broadcom Inc. |
