Description
The Sharp LD-A1381F is a 138-inch all-in-one direct view LED display designed to deliver impactful Full HD visuals in a streamlined, user-friendly package. With its 1.5mm pixel pitch and up to 4 trillion displayable colors, it produces stunningly detailed and vibrant imagery.
Unlike traditional LED walls, this model integrates a powerful System-on-Chip (SoC) running Android 13, allowing for content scheduling, playlist creation, and third-party app installation without external controllers. The LD-A1381F also includes integrated 18W speakers, Crestron Connected compatibility, and Sharp’s NaViSet Administrator™ software for centralized remote management.

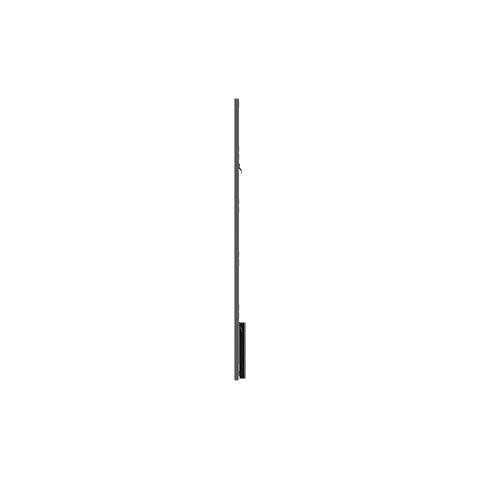

Its slim ADA-compliant design (less than 4 inches deep) ensures easy installation and safe deployment in public spaces. With a front-serviceable design, quick setup, and minimal maintenance needs, the Sharp LD-A1381F is ideal for conference rooms, boardrooms, education spaces, and other environments requiring a professional-grade display solution.
| Category | Details |
|---|---|
| Panel Technology | Direct View LED |
| Pixel Configuration | 3-1 SMD (Black) |
| Viewable Size | 138" diagonal |
| Native Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 1.5mm |
| Brightness | 500 cd/m² (typical) |
| Contrast Ratio | 6500:1 (typical) |
| Viewing Angle | 80°/80° horizontal, 70°/70° vertical |
| Color Processing | Up to 14-bit |
| Displayable Colors | Over 4 trillion |
| Refresh Rate | 3840 Hz |
| Lifetime | 100,000 hours |
| Input Terminals | HDMI 2.0 ×3, USB-C (DP-Alt Mode) |
| Control Interfaces | LAN (1000Mbit), 3.5mm Mini Jack IR Remote, RS-232C |
| Data Ports | USB 3.0 ×2, USB 2.0 ×1, USB-C (upstream) |
| Output Terminals | 3.5mm Mini Jack, SPDIF Optical |
| Speakers | Integrated 18W × 2 |
| Power Consumption | 1450W (typical) |
| Power Cord | NEMA 5-20P, 5m (16.4 ft) |
| Dimensions (W×H×D) | 120.63" × 72.17" × 2.96" (3064mm × 1833mm × 75.3mm) |
| Weight | 331 lbs / 150 kg |
| Operating System | Android 13 |
| Processor | ARM Cortex-A55 1.5GHz Quad Core |
| Storage | 32GB ROM (including OS) |
| Memory | 4GB |
| Operating Temp. | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 10% to 80% |
| Warranty | 2 Years |
| Ships With | Remote control, wall mount |
