Description

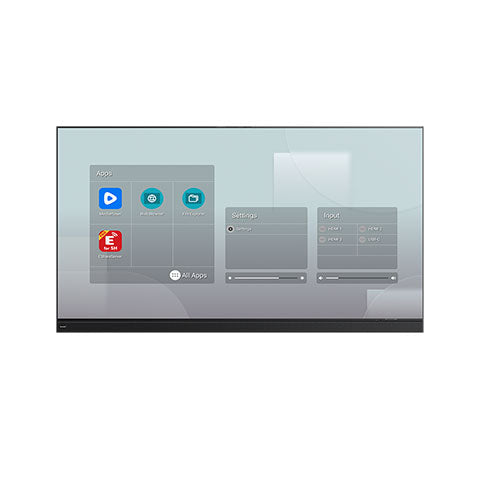

The Sharp LD-A1651F All-in-One Direct View LED Display delivers powerful, seamless performance in a stunning 165-inch Full HD (1920 × 1080) format. Designed for simplicity and impact, this all-in-one solution eliminates the need for external components by integrating powerful System-on-Chip (SoC) technology, built-in speakers, and remote control functionality.
Ideal for boardrooms, conference halls, and large meeting spaces, the LD-A1651F combines brilliant LED imagery, ADA-compliant slim design, and Crestron Connected® AV integration for effortless deployment. With front-serviceable maintenance, NaViSet Administrator™ software, and flexible media playback options, it provides a user-friendly, future-ready display experience.
From plug-and-play setup to long-lasting performance with a 100,000-hour lifetime, this display is engineered for businesses and organizations seeking impactful, worry-free visual solutions.
| Category | Specification |
|---|---|
| Model | Sharp LD-A1651F |
| Display Technology | Direct View LED |
| Viewable Size | 165" diagonal |
| Resolution | Full HD 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 1.9mm |
| Brightness | 500 cd/m² (typical) |
| Contrast Ratio | 6500:1 (typical) |
| Viewing Angle | 80°/80° (H), 70°/70° (V) |
| Color Processing | Up to 14-bit, 4+ trillion colors |
| Refresh Rate | 3840 Hz |
| Lifetime | 100,000 hours |
| Inputs | HDMI 2.0 ×3, USB-C (DP-Alt Mode) |
| Control | LAN (1000Mbit), RS-232C, IR Remote, 3.5mm Jack |
| USB Ports | USB 3.0 ×2, USB 2.0 ×1, USB-C (Up/Downstream) |
| Outputs | 3.5mm Mini Jack, SPDIF Optical |
| Speakers | Integrated 18W ×2 |
| Power Consumption | 2150W (typical) |
| Power Cord | NEMA L5-30P, 5m (16.4 ft) |
| Dimensions (W×H×D) | 144.65 × 85.67 × 2.96 in (3674 × 2176 × 75.3 mm) |
| Weight (Net) | 459 lbs (208 kg) |
| Internal Player | Android 13, ARM Cortex-A55 Quad Core, 4GB RAM, 32GB ROM |
| Operating Temp. | 0–40°C (32–104°F) |
| Operating Humidity | 10%–80% |
| Included | Remote control, wall mount |
| Warranty | 2 Years Limited Warranty |
