Description

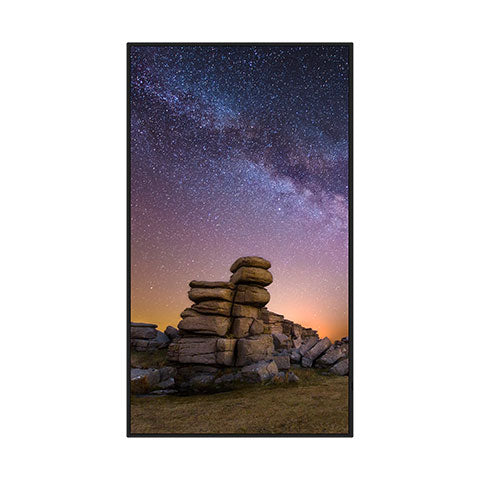

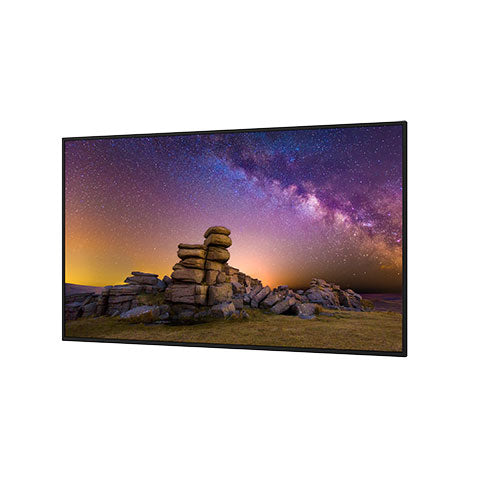

The Sharp MultiSync® PN-M552 is a 55-inch 4K UHD professional display engineered for high-impact digital signage in demanding environments. Designed with an all-metal chassis, advanced cooling, and 24/7 reliability, it ensures uninterrupted performance for mission-critical spaces such as healthcare, finance, command centers, retail, and corporate environments.
Featuring SpectraView™ Engine technology, the PN-M552 delivers factory-calibrated color accuracy, uniformity, and long-lasting brightness stability. Its modular design supports Intel® Smart Display Modules (SDM) and Raspberry Pi Compute Module 4, providing seamless integration and scalable functionality without clutter.
With 550 cd/m² brightness, anti-glare high-haze glass, and wide viewing angles, the PN-M552 ensures vivid, lifelike images even in high-ambient light. Connectivity is simplified with dual HDMI 2.0, DisplayPort 1.4, USB-C (65W Power Delivery), and LAN/RS-232C for advanced remote management. Built-in USB hubs and daisy-chaining capabilities further streamline deployment for multi-display setups.
Backed by a 3-year advanced replacement warranty, the Sharp PN-M552 is a commercial-grade display solution built for professional use where reliability, security, and visual impact are non-negotiable.
| Category | Details |
|---|---|
| Model | Sharp MultiSync® PN-M552 |
| Display Size | 54.6" (55-inch class) |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typical) | 550 cd/m² |
| Contrast Ratio | 1200:1 |
| Panel Technology | IPS with 25% haze (anti-glare) |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Gamut | 72% NTSC |
| Displayable Colors | Over 1.07 Billion (10-bit dithered) |
| Orientation | Landscape / Portrait (CCW Rotation) |
| Inputs | HDMI 2.0 ×2, DisplayPort 1.4 ×2, USB-C (DP-Alt mode, 65W PD) |
| Outputs | HDMI ×1, DisplayPort ×1, Audio 3.5mm Out |
| Control Interfaces | LAN (100Mbit), RS-232C, IR Remote |
| USB Hub | USB-C upstream, USB-A 2.0 (Service), USB-A 3.2, USB-C downstream |
| Audio | Integrated 10W ×2 speakers, optional SP-RM3a |
| Power Consumption | 105W (typ.), 155W (max brightness), 355W (all max) |
| Standby Power | 0.5W (network) / 2W (normal) |
| Dimensions (W × H × D) | 1235.6 × 709.3 × 59.5 mm (48.7 × 27.9 × 2.3 in.) |
| Weight | 20.5 kg (45.2 lbs.) |
| Bezel Width | 11.0 mm (L/R/T), 13.9 mm (B) |
| Mounting (VESA) | 300 × 300 mm, 4 × M6 |
| Sensors | Ambient light sensor, temperature sensor; optional human sensor |
| Operating Conditions | 0–40°C, 20–80% humidity, up to 3000m altitude |
| Warranty | 3 years Advanced Replacement |
| Optional Accessories | SP-RM3a speakers, PN-ST431 / ST-43M stand, WMK-3298T wall mount, SDM option cards, Raspberry Pi Compute Module 4 |
