Description

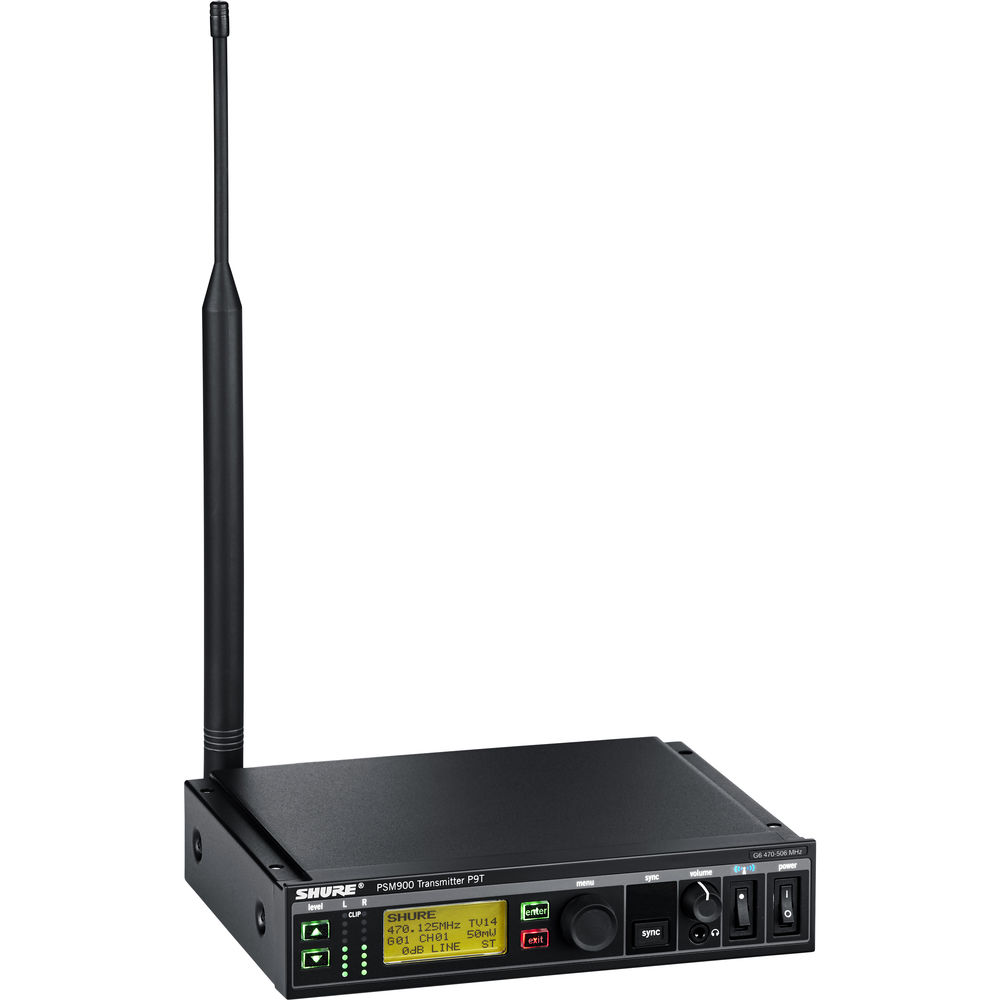

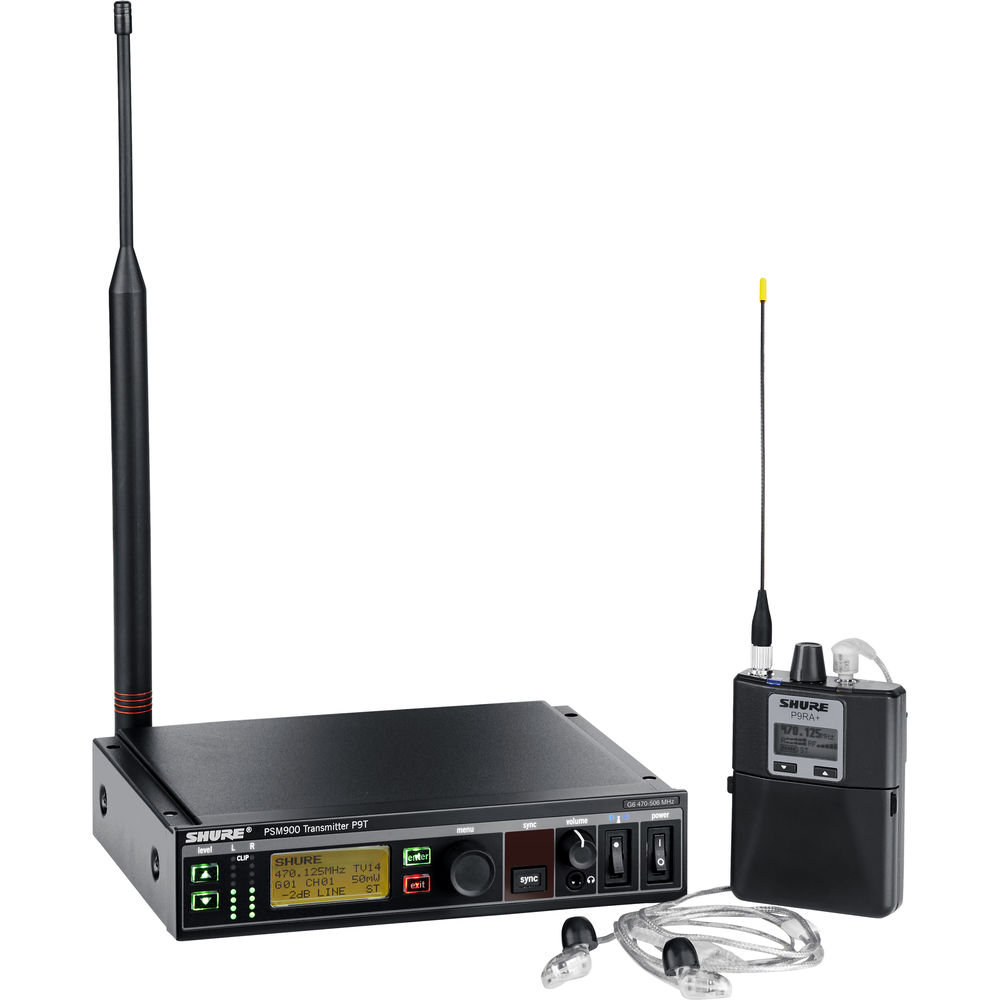

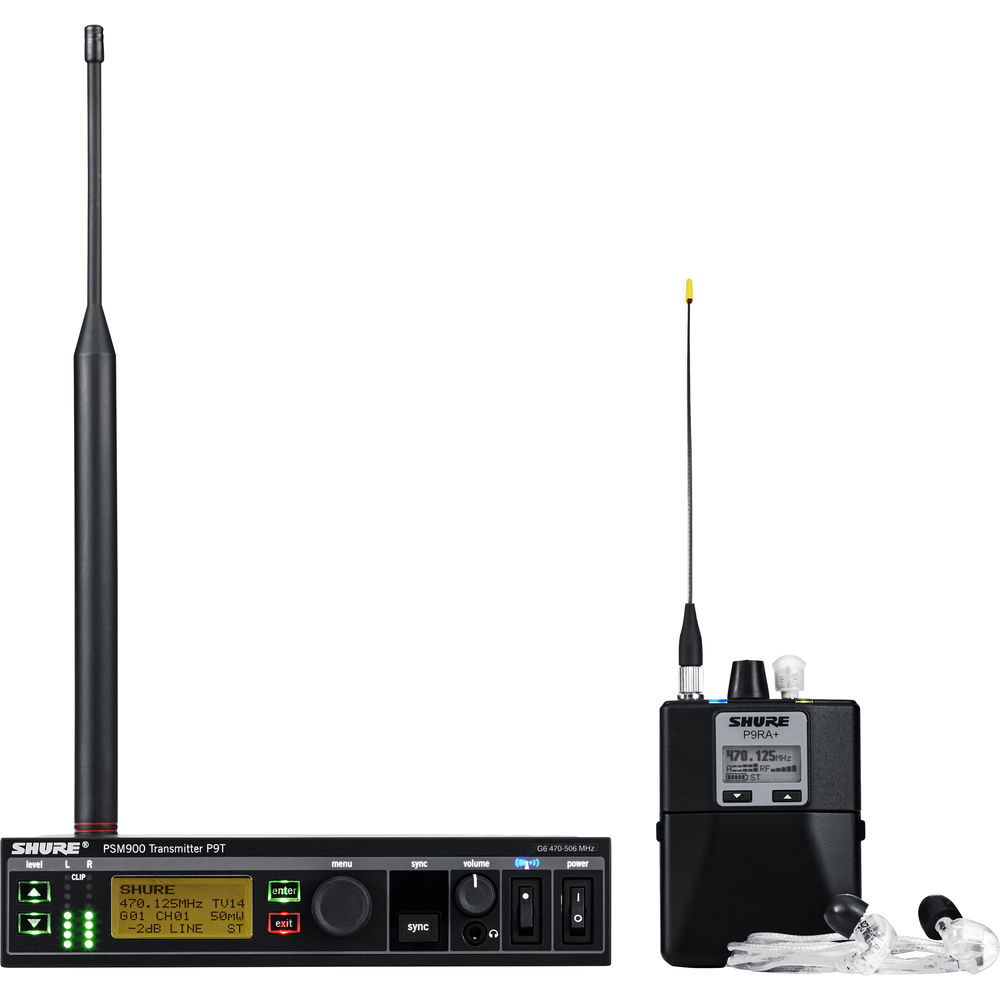

The Shure PSM 900 Wireless Personal Monitor System delivers professional-grade in-ear monitoring with exceptional audio clarity, RF stability, and stage-ready reliability. This complete system includes the P9T half-rack wireless transmitter, P9RA+ bodypack receiver, and SE425-CL sound isolating earphones, providing performers, engineers, and broadcast professionals with a powerful and flexible monitoring solution.

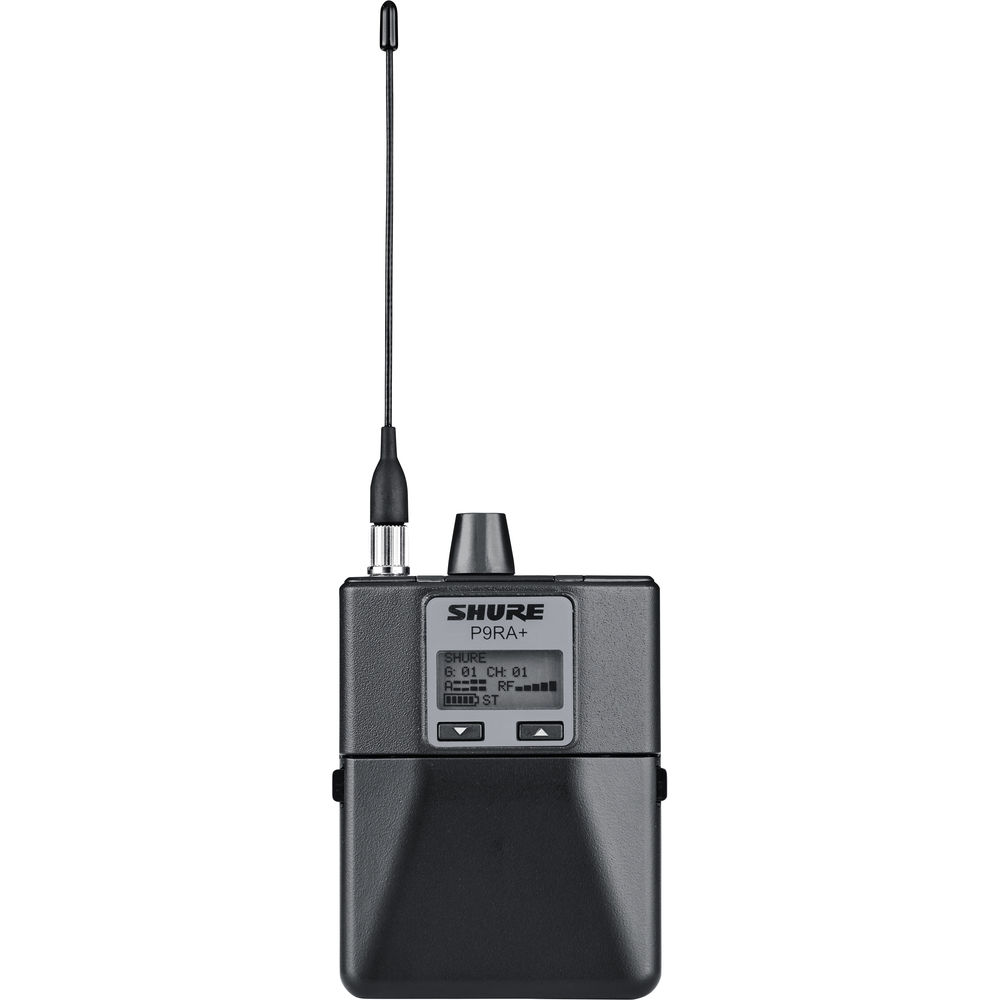

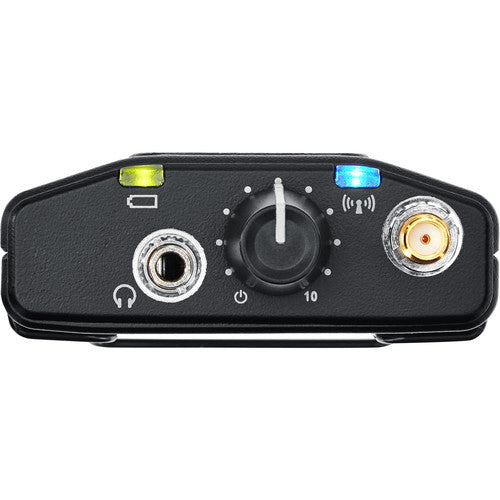

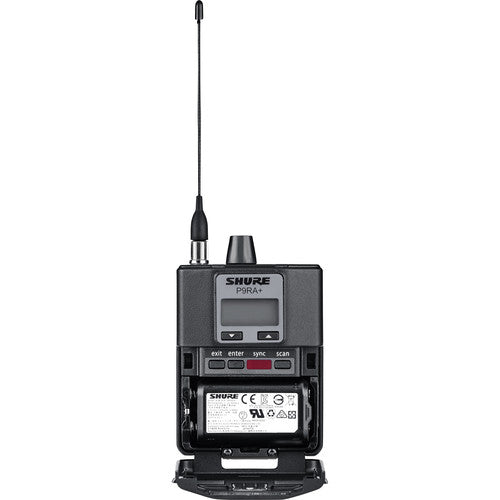

Engineered for demanding live environments, the P9RA+ receiver enhances RF performance with advanced filtering, improved headroom, and superior stereo separation for a cleaner, more consistent signal. CueMode technology allows quick access to multiple mixes, while Scan and Sync simplifies setup through fast IR-based pairing. The integrated 4-band parametric EQ ensures precise sound customization, and the volume limiter helps protect hearing without sacrificing performance.

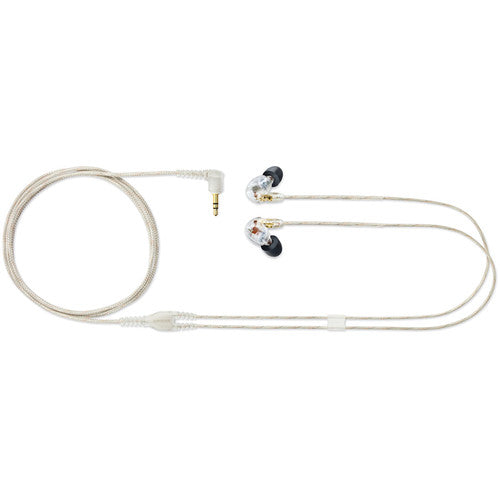

The included SE425-CL earphones feature dual high-definition MicroDrivers for detailed, full-range audio, paired with excellent sound isolation to reduce ambient noise. With robust construction, intuitive controls, and flexible connectivity, the PSM 900 system is built to deliver consistent, high-quality monitoring for touring, live production, and professional audio applications.
| Specification | Details |
|---|---|
| System Type | Wireless In-Ear Personal Monitoring System |
| Included Components | P9T Transmitter, P9RA+ Bodypack Receiver, SE425-CL Earphones |
| Frequency Band | G7: 506 to 542 MHz |
| Operating Range | Up to 300 ft (90 m) typical |
| RF Sensitivity | 2.2 μV (20 dB SINAD) |
| RF Gain | Active, 31 dB dynamic adjustment |
| RF Filter Range | -3 dB at 30.5 MHz from center frequency |
| Image Rejection | Greater than 90 dB |
| Adjacent Channel Rejection | Greater than 70 dB |
| Intermodulation Attenuation | Greater than 70 dB |
| Blocking | Greater than 80 dB |
| Squelch Threshold | 22 dB SINAD (±3 dB) |
| Audio Output Power | 100 mW per output at 16 ohms |
| Equalization | 4-band parametric EQ with adjustable gain and Q |
| Volume Limiter | Adjustable from 0 to -48 dB in 3 dB steps |
| Volume Lock | Adjustable from 0 to -70 dB |
| Audio Connector | 3.5 mm stereo output |
| Battery Type | 2 x AA batteries or compatible rechargeable battery |
| Battery Life | 4 to 6 hours continuous use |
| Receiver Dimensions | 3.3 x 2.6 x 0.9 in (8.3 x 6.5 x 2.2 cm) |
| Receiver Weight | 5.4 oz (154 g) without batteries |
| Transmitter Design | Half-rack mountable |
| Transmitter Inputs | XLR/TRS combo inputs |
| Earphone Type | Dual-driver sound isolating in-ear monitors |
| Noise Isolation | Up to 37 dB ambient noise reduction |
| Cable Type | Detachable Kevlar-reinforced MMCX cable |

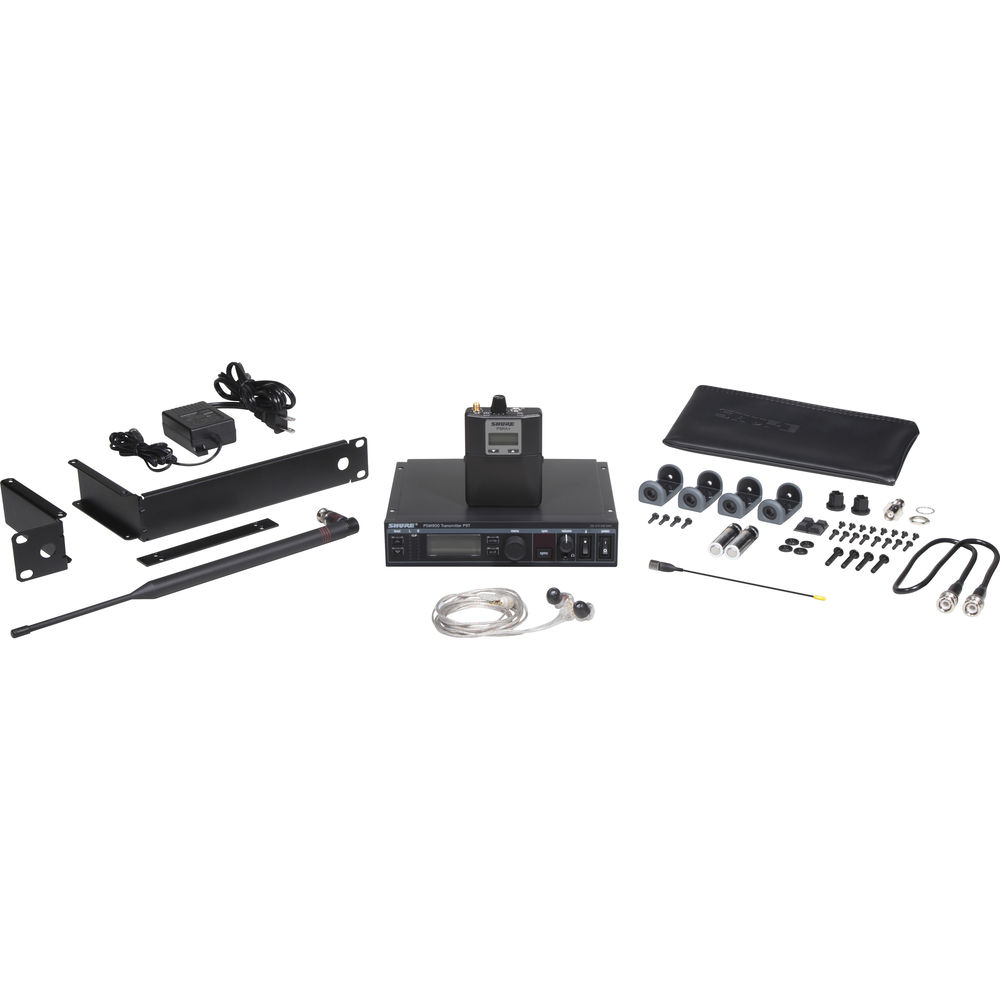

| Included Accessories | Rackmount kit, antennas, power supply, ear tips, carrying case |
