Description

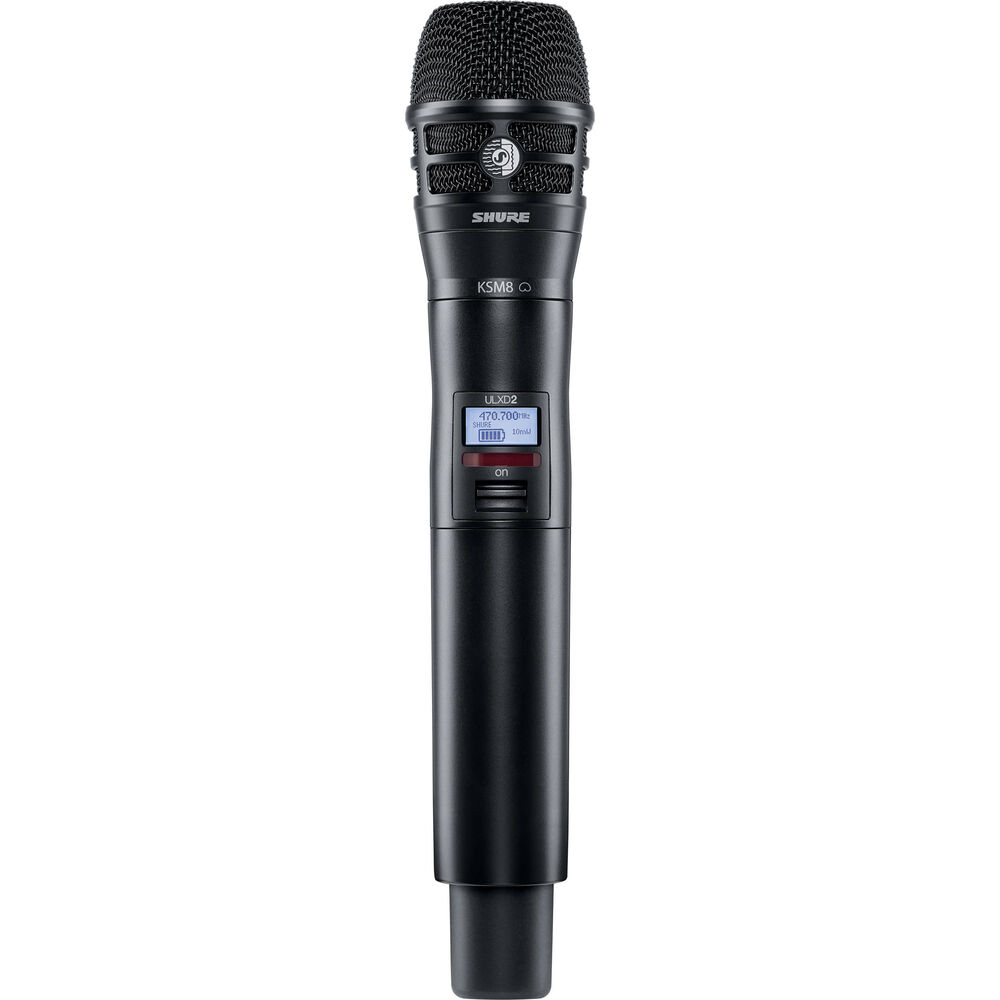

The Shure ULXD2/K8B Digital Handheld Wireless Microphone Transmitter is engineered for professional audio environments where clarity, reliability, and security are critical. Designed for seamless integration with ULX-D wireless systems, this handheld transmitter features the advanced KSM8 dual-diaphragm dynamic capsule, delivering consistent, natural vocal reproduction with minimized proximity effect and excellent off-axis rejection.
Built with a rugged yet lightweight aluminum housing, the ULXD2/K8B ensures dependable performance in demanding live events, corporate presentations, houses of worship, and broadcast applications. Its AES 256-bit encryption secures transmissions, while 24-bit/48 kHz digital audio guarantees pristine sound quality across its full operating range.
The interchangeable capsule design offers flexibility for different vocal applications, while intelligent features such as automatic gain adjustment, IR sync, and a backlit LCD streamline setup and operation. With selectable RF output power and extended battery options, this transmitter is optimized for both performance scalability and operational efficiency.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | G57: 470 to 608 MHz |
| Number of RF Channels | 5520 |
| Max Operating Range | Up to 328 ft (100 m) |
| Latency | < 2.9 ms |
| Encryption | AES 256-bit |
| RF Output Power | Selectable: 1 / 10 / 20 mW |
| Transmitter Type | Handheld |
| Capsule Included | KSM8 Dual-Diaphragm Dynamic |
| Capsule Design | Interchangeable |
| Polar Pattern | Cardioid |
| Frequency Response (Mic) | 40 Hz to 16 kHz |
| System Frequency Response | 30 Hz to 20 kHz |
| Gain Range | 0 to 21 dB (3 dB steps) |
| Automatic Gain Control | Yes |
| Sync Method | Infrared (IR) |
| Display | Backlit LCD |
| Controls | Power / Mute Switch with Lock Function |
| Antenna | Internal Single-Band Helical |
| Battery Type | 2x AA (included) or SB900B Rechargeable (optional) |
| Battery Life | Up to 11 hours (AA), up to 8.5 hours (rechargeable) |
| Charging Compatibility | External charging contacts for dock chargers |
| Housing Material | Aluminum |
| Dimensions | 10.1 x 2 in (256 x 51 mm) |
| Weight | 12 oz (340 g) without batteries |
| Included Accessories | Swivel adapter, 2 AA batteries, storage bag |
