Description

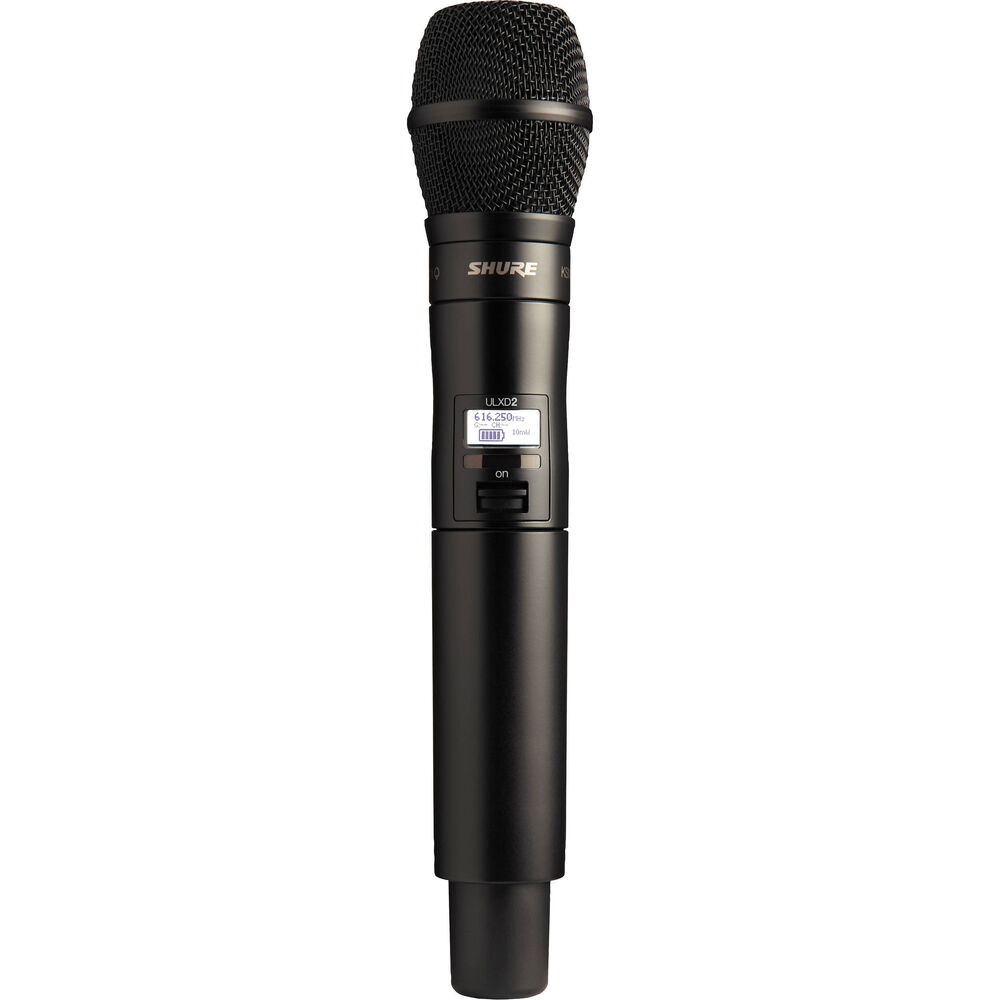

The Shure ULXD2/KSM9 digital handheld wireless microphone transmitter is built for professional-grade vocal performance, delivering exceptional clarity, reliability, and flexibility in demanding live environments. Designed for seamless integration with ULX-D wireless systems, this transmitter features a premium KSM9 condenser capsule with dual-diaphragm architecture, capturing every vocal nuance with precision and consistency.
Engineered for versatility, the KSM9 capsule offers switchable cardioid and supercardioid polar patterns, allowing sound engineers to adapt quickly to different stage conditions. Whether optimizing for warmth and natural tone or maximizing isolation in high-noise environments, the ULXD2/KSM9 ensures superior gain before feedback and minimal off-axis coloration.
With 24-bit/48 kHz digital audio, AES 256-bit encryption, and an ultrawide 138 MHz tuning range, this transmitter delivers pristine sound quality and secure, interference-resistant performance. The rugged aluminum housing, intuitive controls, and advanced power management options make it a dependable choice for touring professionals, houses of worship, corporate events, and broadcast applications.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | G57: 470 to 608 MHz |
| Audio Resolution | 24-bit / 48 kHz |
| Max Operating Range | Up to 100 m (328 ft) |
| RF Output Power | Selectable: 1 mW, 10 mW, 20 mW |
| RF Channel Frequencies | 5520 |
| Max Transmitters per Band | Up to 47 |
| Latency | Less than 2.9 ms |
| Encryption | AES 256-bit secure transmission |
| Capsule Type | KSM9 dual-diaphragm condenser |
| Polar Patterns | Cardioid, Supercardioid |
| Frequency Response | 50 Hz to 20 kHz |
| Maximum SPL | 152 dB |
| Sensitivity | -51 dBV/Pa at 1 kHz |
| Gain Range | 0 to 21 dB in 3 dB steps |
| Automatic Gain Control | Yes, proprietary gain ranging |
| Sync Method | Infrared (IR) |
| Display | Backlit LCD with menu navigation |
| Muting | Power switch doubles as mute |
| Antenna | Fixed single-band helical |
| Battery Type | 2 AA batteries included or optional SB900B rechargeable |
| Battery Life | Up to 11 hours (AA) or 8.5 hours (rechargeable) |
| Charging Capability | External charging contacts for docked charging |
| Housing Material | Aluminum |
| Dimensions | 256 x 51 mm |
| Weight | 340 g without batteries |
| Included Accessories | Swivel adapter, 2 AA batteries, storage bag |
| Compatibility | Shure ULX-D wireless systems and interchangeable Shure capsules |
