Description

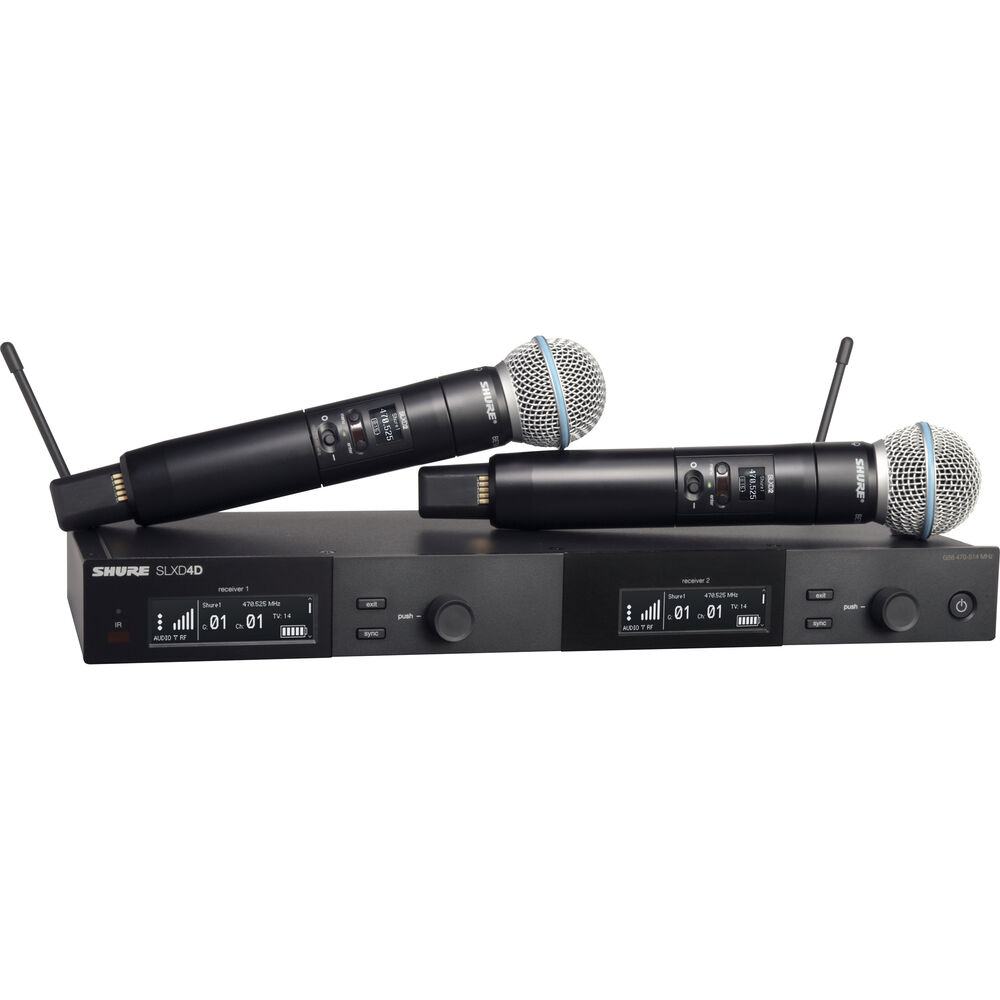

The Shure SLXD24D/SM58 is a professional dual-channel digital wireless microphone system designed for reliable, high-quality audio in live performance, presentations, and installed AV environments. Featuring two handheld transmitters equipped with industry-standard SM58 cardioid capsules, this system delivers clear, warm vocal reproduction with excellent feedback rejection.
Operating in the H55 UHF band (514 to 558 MHz), the system provides stable RF performance with Digital Predictive Switching Diversity to minimize dropouts and interference. With up to 1760 selectable frequencies and support for up to 32 simultaneous channels, it is ideal for scalable setups in conference rooms, houses of worship, and event venues.

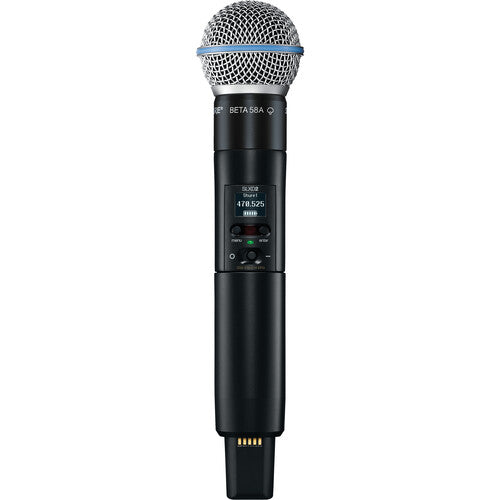

The SLXD4D dual-channel receiver offers an intuitive LCD interface, Ethernet networking for coordinated frequency scanning, and flexible output options including XLR and 1/4" connections. The handheld transmitters feature durable aluminum construction, OLED displays, and up to 8 hours of operation using AA or optional rechargeable batteries.
Engineered for ease of use and dependable performance, the SLX-D system ensures consistent, high-fidelity audio with minimal setup time.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Frequency Band | H55: 514 to 558 MHz |
| RF Frequency Count | 1760 selectable frequencies |
| Audio Channels | Dual-channel (2 channels) |
| Included Transmitters | 2 x Handheld |
| Microphone Capsule | SM58 Dynamic Cardioid |
| Diversity | True Diversity with Digital Predictive Switching |
| Max Operating Range | Up to 328 ft (100 m) |
| Max Systems per Band | Up to 32 simultaneous channels |
| Dynamic Range | 120 dBA (typical) |
| Latency | 3.2 ms |
| Receiver Type | Tabletop or Rackmount (1U with included hardware) |
| Receiver Outputs | 2 x XLR balanced, 2 x 1/4" TRS balanced |
| Network Connectivity | 1 x RJ45 Ethernet (DHCP/Manual IP) |
| Receiver Display | Backlit LCD |
| Transmitter RF Power | Selectable 1 mW / 10 mW |
| Transmitter Display | OLED |
| Frequency Response | 20 Hz to 20 kHz (system dependent) |
| Microphone Frequency Response | 50 Hz to 15 kHz |
| Polar Pattern | Cardioid |
| Max SPL | 146 dB |
| Battery Type | 2 x AA or Shure SB903 rechargeable (optional) |
| Battery Life | Up to 8 hours |
| Charging Support | External charger required for rechargeable battery |
| Sync Method | Infrared (IR) |
| Mobile App Support | Yes (ShurePlus Channels for iOS/Android) |
| Antenna | 2 x removable external BNC antennas |
| Power Supply | 15 VDC adapter (included), 100–240V AC input |
| Receiver Dimensions | 7.8 x 6 x 1.7 in |
| Transmitter Dimensions | 6.9 x 1.5 in |
| Receiver Weight | 3.1 lb |
| Transmitter Weight | 5.2 oz |
| Construction | Metal receiver, aluminum transmitters |
