Description

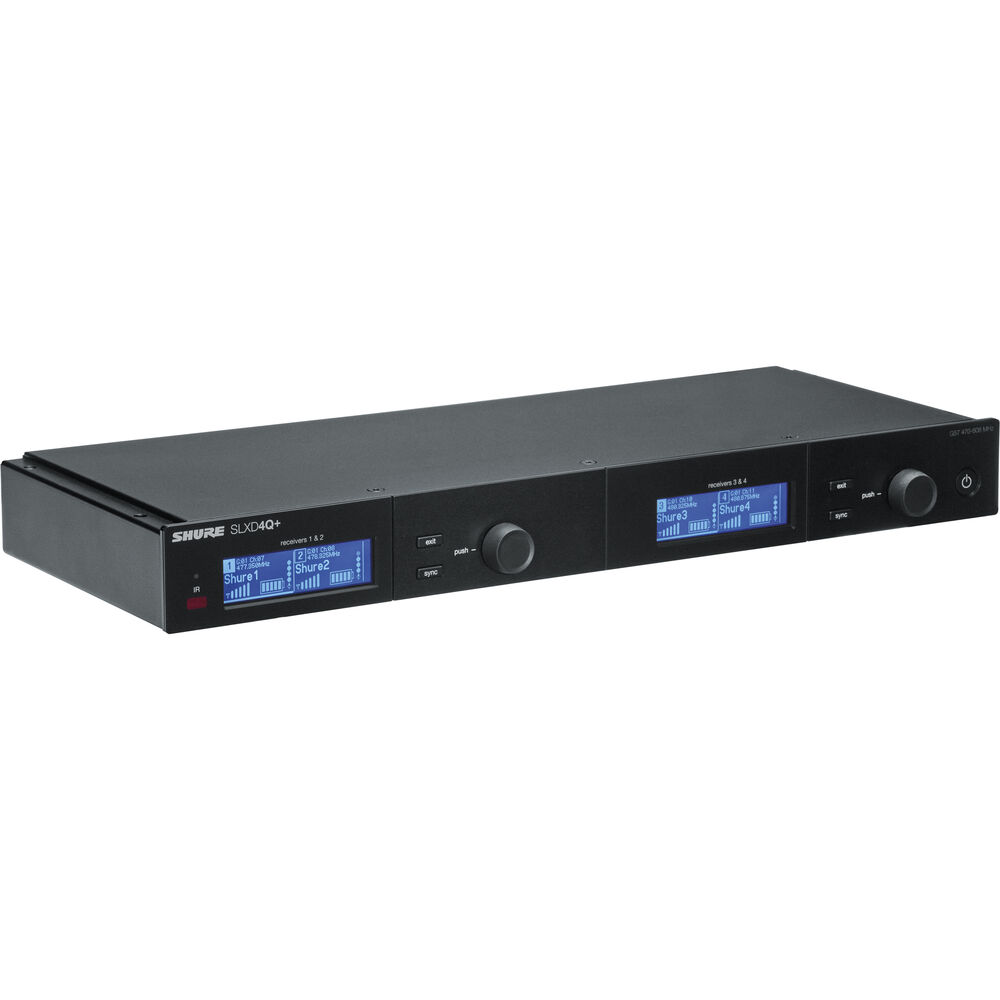

The Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver delivers high-performance, scalable wireless audio in a full-rack format designed for professional environments. Built on the SLX-D+ platform, this receiver combines four independent channels into a single rack space, streamlining deployment while reducing cabling and hardware requirements.
Engineered for live sound, broadcast, installed AV systems, and houses of worship, the SLXD4Q+ provides pristine 24-bit digital audio with over 118 dB of dynamic range. Its wide 138 MHz tuning range ensures flexible frequency coordination across regions, while support for high channel density allows multiple systems to operate reliably in crowded RF environments.
With ShowLink Ease technology, users benefit from seamless two-way communication between receiver and transmitters, enabling automatic synchronization, remote adjustments, and real-time frequency management without physical access. Integration with Wireless Workbench software and mobile control apps further enhances monitoring, configuration, and system optimization.
Built-in Digital Feedback Reduction enhances clarity and stability by automatically detecting and suppressing feedback. AES-256 encryption ensures secure wireless transmission, while RF cascade and audio summing capabilities allow for easy system expansion and simplified signal routing.
Housed in a rugged steel chassis and designed for reliability in demanding environments, the SLXD4Q+ is a powerful, flexible solution for multi-channel wireless audio systems.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Frequency Band | G57: 470 to 608 MHz |
| Receiver Type | Rackmount (1U, full-rack width) |
| Number of Channels | 4 |
| Dynamic Range | 118 dB |
| Audio Resolution | 24-bit digital |
| Latency | 2.8 ms |
| Max Operating Range | Up to 100 m (328 ft) |
| RF Tuning Range | Up to 138 MHz (region dependent) |
| Max Systems per Band | Up to 11 (6 MHz) / 14 (8 MHz) |
| Diversity | True diversity |
| Encryption | AES-256 |
| Frequency Coordination | Automatic frequency management |
| ShowLink Ease | Remote transmitter control and sync |
| Digital Feedback Reduction | Built-in DFR processing |

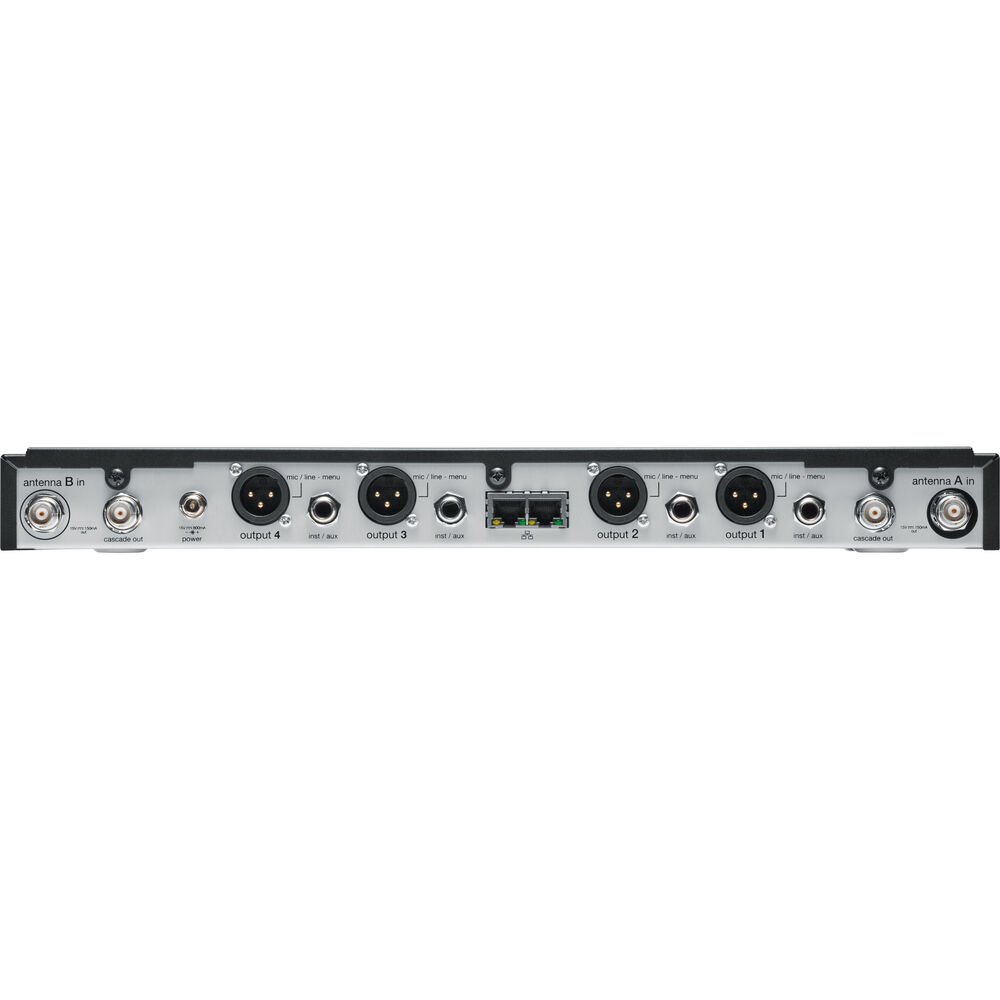

| Audio Outputs | 4x XLR balanced, 4x 1/4" TS unbalanced |
| Network Connectivity | 2x RJ45 Ethernet |
| Antenna | 2x removable 1/4-wave antennas |
| Display | Backlit LCD |
| Gain Range | -18 to +42 dB |
| Frequency Response | 20 Hz to 20 kHz (+1/-2 dB) |
| Mobile App Support | iOS and Android |
| Mounting | Rackmount hardware included (1U) |
| Power Supply | 15 VDC adapter (included) |
| Construction | Steel chassis |
| Dimensions | 15.5 x 6 x 1.7 in |
| Weight | 3.9 lb (without antennas) |
| Transmitter Compatibility | SLX-D+ handheld, bodypack, and plug-on transmitters |
| Included Items | Rackmount kit, antennas, BNC cables, power adapter |
| Compliance | TAA compliant |
