Description

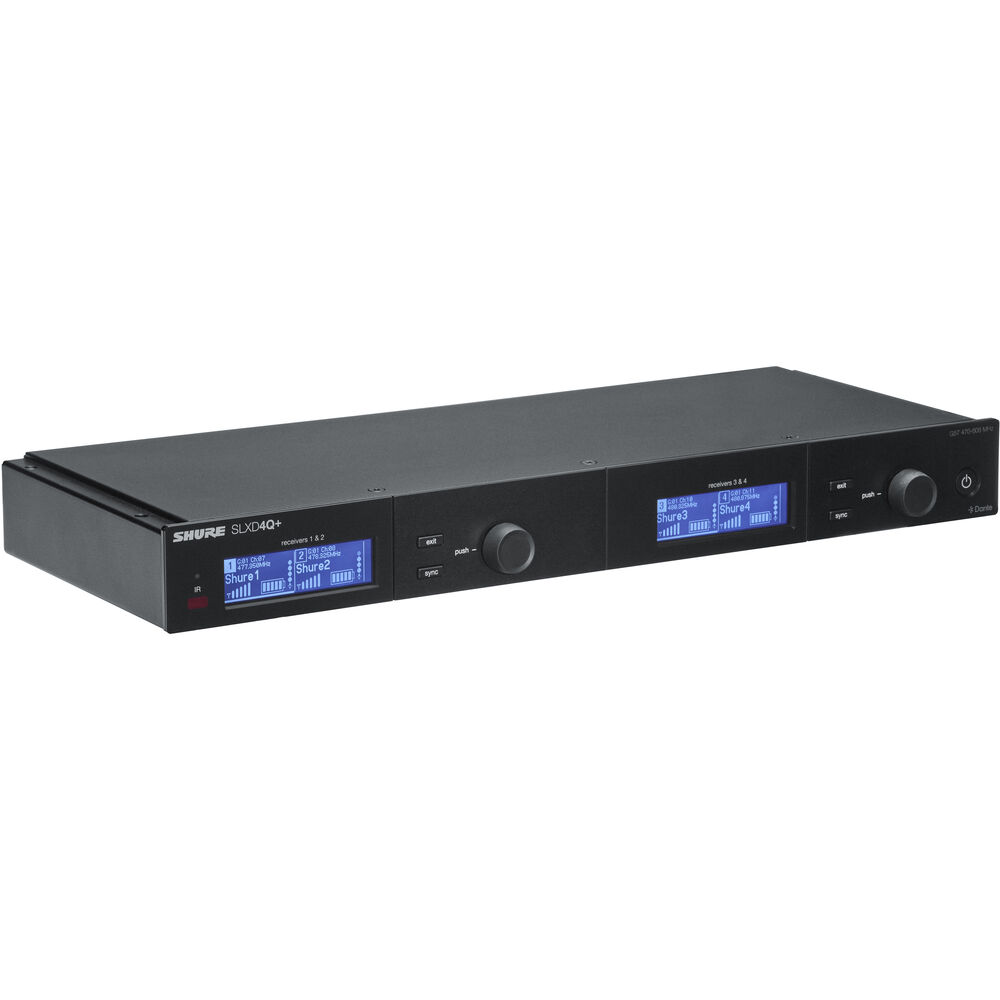

The Shure SLXD4QDAN+ is a professional-grade quad-channel digital wireless receiver engineered for high-performance live sound, broadcast, and installed AV environments. Built on the advanced SLX-D+ platform, it delivers crystal-clear 24-bit digital audio with exceptional dynamic range, ensuring consistent and accurate sound reproduction across all four channels.
Designed for modern networked audio systems, the SLXD4QDAN+ features integrated Dante audio networking, enabling seamless digital audio routing over a single Ethernet connection. This reduces cabling complexity while enhancing flexibility for system integration, monitoring, and recording workflows.
With an expansive tuning range and support for high channel density, the receiver excels in demanding RF environments. ShowLink Ease technology provides intelligent, automated transmitter management, allowing remote control, real-time adjustments, and interference avoidance without physical access to transmitters.
The full-rack, 1U steel chassis houses four independent receiver channels while maintaining a compact footprint. Combined with Wireless Workbench integration, mobile control, and built-in Digital Feedback Reduction, the SLXD4QDAN+ offers a scalable, secure, and efficient solution for professional wireless audio deployments.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Receiver Channels | 4 Independent Channels |
| RF Frequency Range | 470 to 608 MHz (G57 Band) |
| Tuning Bandwidth | Up to 138 MHz |
| Dynamic Range | 118 dB |
| Audio Resolution | 24-bit Digital Audio |
| Latency | 2.8 ms |
| Encryption | AES-256 Secure Transmission |
| Max Operating Range | Up to 100 m (328 ft) |
| RF Channel Capacity | Up to 14 systems per 8 MHz band |
| Frequency Coordination | Automatic Frequency Management |
| ShowLink Technology | Yes, with remote transmitter control |
| Dante Networking | Integrated (2 x RJ45 Ports) |

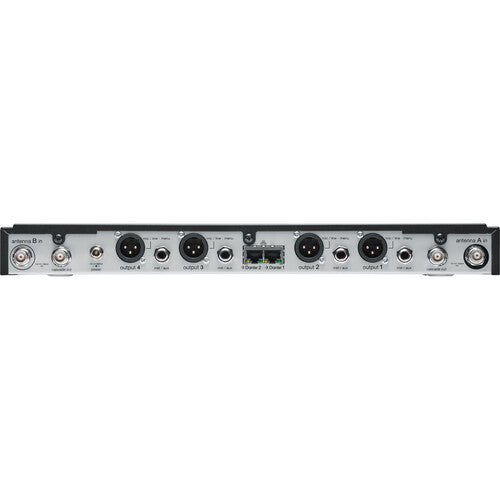

| Audio Outputs | 4 x XLR Balanced, 4 x 1/4" Unbalanced |
| Audio Summing | Supported |
| RF Cascade | Link up to 3 units (12 channels total) |
| Antenna | 2 x Removable 1/4-Wave |
| Frequency Response | 20 Hz to 20 kHz (+1/-2 dB) |
| Gain Range | -18 to +42 dB |
| Display | Backlit LCD |
| Control Software | Wireless Workbench (Desktop & Mobile) |
| Mobile Compatibility | iOS and Android |
| Feedback Control | Integrated Digital Feedback Reduction (DFR) |
| Mounting | 1U Rackmount (Hardware Included) |
| Power Supply | 15 VDC Adapter (Included) |
| Housing | Rugged Steel Chassis |
| Dimensions | 15.5 x 6 x 1.7 inches |
| Weight | 3.9 lb (1.75 kg), without antennas |
| Included Accessories | Rackmount Kit, 2 Antennas, 2 BNC Cables |
| Transmitters Included | No, compatible with SLX-D+ series |
