Description

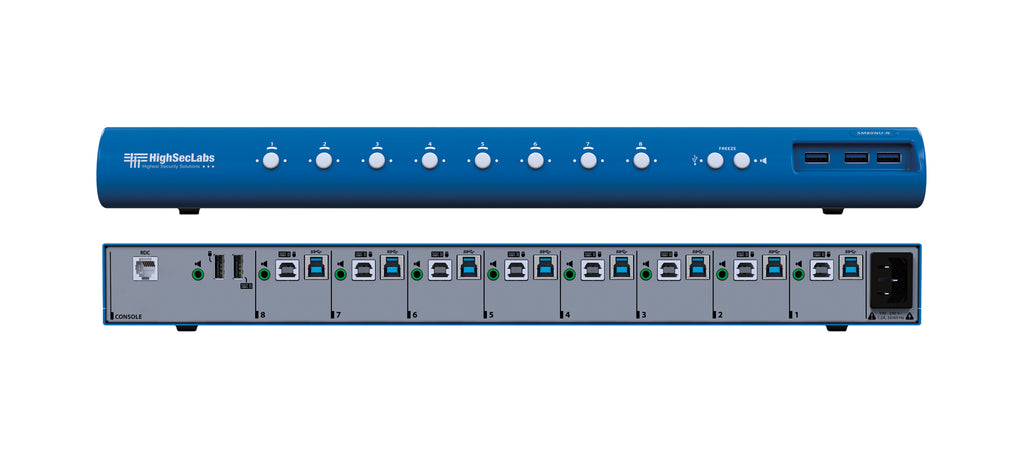

The Kramer SM80NU-N HighSecLabs 8-Port KM Switch delivers secure, seamless control of multiple isolated computers from a single workstation. Designed for high-security, multi-network environments, this advanced KM solution supports 8 computers and enables smooth, cursor-based switching using Virtual Display Technology. Users can glide the mouse across display boundaries to shift control instantly—no hotkeys needed.
With USB 3.0 SuperSpeed ports, the SM80NU-N supports high-bandwidth data transfers and rapid device charging, making it ideal for operators who rely on performance-critical peripherals. The switch also supports copy-and-paste file/text transfer between connected systems (without requiring a network connection), improving workflow efficiency in sensitive workspaces.
Security and reliability come standard with HighSecLabs technology. The device includes isolated USB paths, multi-display alignment options, audio support, and robust certification for professional command-and-control, defense, research, cybersecurity, and government applications.
| Category | Details |
|---|---|
| Product Type | 8-Port HighSecLabs KM Switch |
| Console Ports | 2 × USB-A (keyboard/mouse); 3 × USB-A 3.0; 1 × 3.5mm audio jack; 1 × RJ45 (RDC control) |
| Computer Ports | 8 × USB-B (keyboard/mouse); 8 × USB-B 3.0; 8 × 3.5mm audio jacks |
| USB Features | USB 3.0 SuperSpeed; Express USB high-power charging |
| Switching Method | Virtual Display Technology (cursor-based switching) |
| Additional Features | Multi-display layouts; copy/paste across connected computers; USB port assignment control |
| Power Consumption | 35W max |
| AC Input | 100–240V AC |
| Power Type | Internal |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –20°C to +60°C (–4°F to 140°F) |
| Humidity | 0%–80% RH, non-condensing |
| Supported OS | Windows, Linux, Mac |
| Certifications | CE, RCM, FCC Class B, VCCI, TÜV US, TÜV Canada |
| Product Lifecycle | 10 years |
| Dimensions (W × D × H) | 44.00 × 19.20 × 4.80 cm (17.32" × 7.56" × 1.89") |
| Weight | 2.4 kg (5.3 lbs) approx. |
| Shipping Dimensions | 52.50 × 27.50 × 11.00 cm (20.67" × 10.83" × 4.33") |
| Shipping Weight | 3.1 kg (6.8 lbs) approx. |
