Description

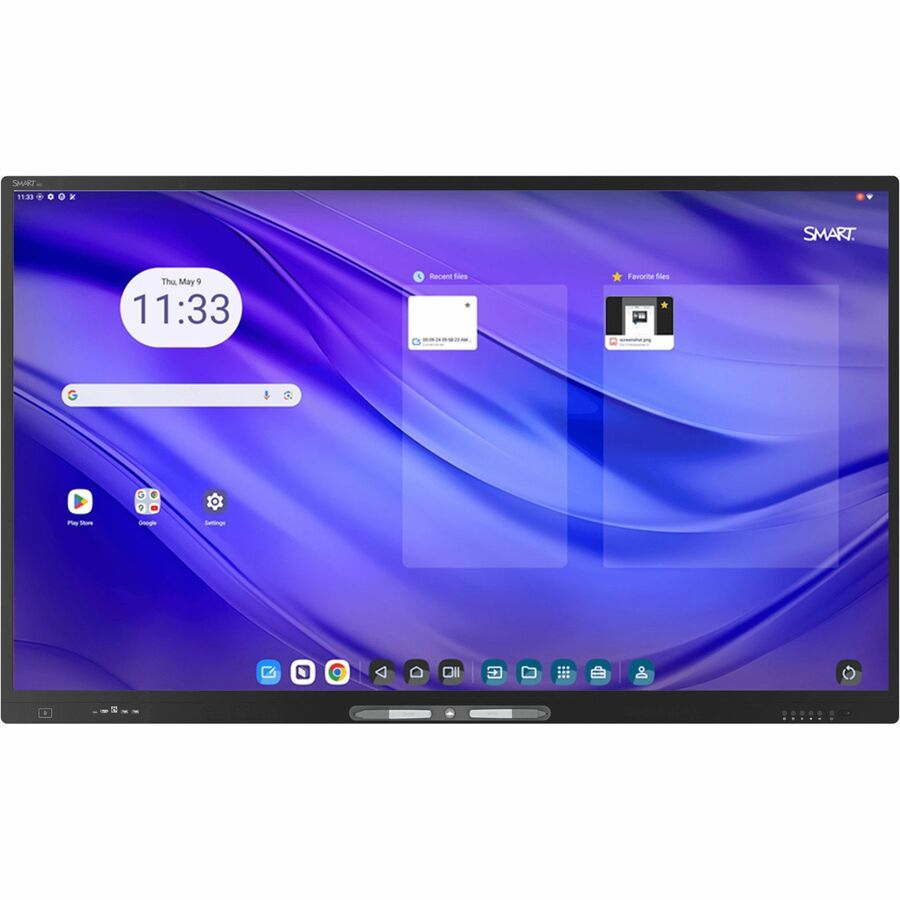

The SMART Board M086-V5 Pro interactive display is a premium collaboration solution designed for enterprise environments, government use, and high-performance meeting spaces. Featuring a large 86-inch 4K UHD display, this TAA-compliant interactive panel delivers exceptional clarity, responsiveness, and reliability for mission-critical collaboration.
Built with SMART’s advanced HyPr Touch™ technology, the M086-V5 Pro provides ultra-precise touch interaction with minimal latency, enabling seamless multi-user collaboration across presentations, whiteboarding, and hybrid meetings. The embedded Android-based iQ platform enhances productivity with integrated whiteboarding, app access, cloud connectivity, and intuitive user personalization.
With robust connectivity options, enterprise-grade security features including NFC authentication, and powerful built-in audio, this display is engineered to support modern workplace demands. Whether deployed in boardrooms, training centers, or secure government facilities, the SMART Board M086-V5 Pro ensures consistent performance, scalability, and ease of use.
| Feature | Specification |
|---|---|
| Display Size | 86 inches |
| Resolution | 4K UHD (3840 × 2160) |
| Brightness | 400 cd/m² |
| Refresh Rate | 60 Hz |
| Display Response Time | ≤ 8 ms |
| Viewing Angle | 178° |
| Backlight Type | LED |
| Touch Technology | HyPr Touch™ with Advanced IR |
| Touch Response Time | ≤ 5 ms |
| Touch Accuracy | 1 mm precision |
| Multi-Touch Capability | Up to 40 touch points (Windows), 32 (Android), 20 (Mac), 10 (Chrome OS) |
| Glass | Heat-tempered, anti-glare, bonded |
| Operating System | Android 13 (upgradeable) |
| CPU | Octa-core processor |
| Memory | 8 GB DDR4 |
| Storage | 64 GB (expandable up to 576 GB) |
| Audio | Dual 20 W integrated speakers |
| Connectivity | Wi-Fi 6E, Bluetooth 5.2, Dual RJ45 LAN |
| Ports | HDMI 2.1, USB-C, USB-A, USB-B, VGA, RS-232, microSD |
| NFC | Integrated reader/writer with multi-protocol support |
| OPS Slot | Supported for optional PC module |
| Power Requirements | 100–240V AC |
| Power Consumption | Typical: 149 W |
| Mounting | VESA 800 × 600 mm |
| Included Accessories | Pens (2), remote control, cables, Wi-Fi antennas |
| Compliance | ENERGY STAR®, CE, FCC, UL and global certifications |
| Environment | Operating temperature: 5°C to 35°C |
