Description

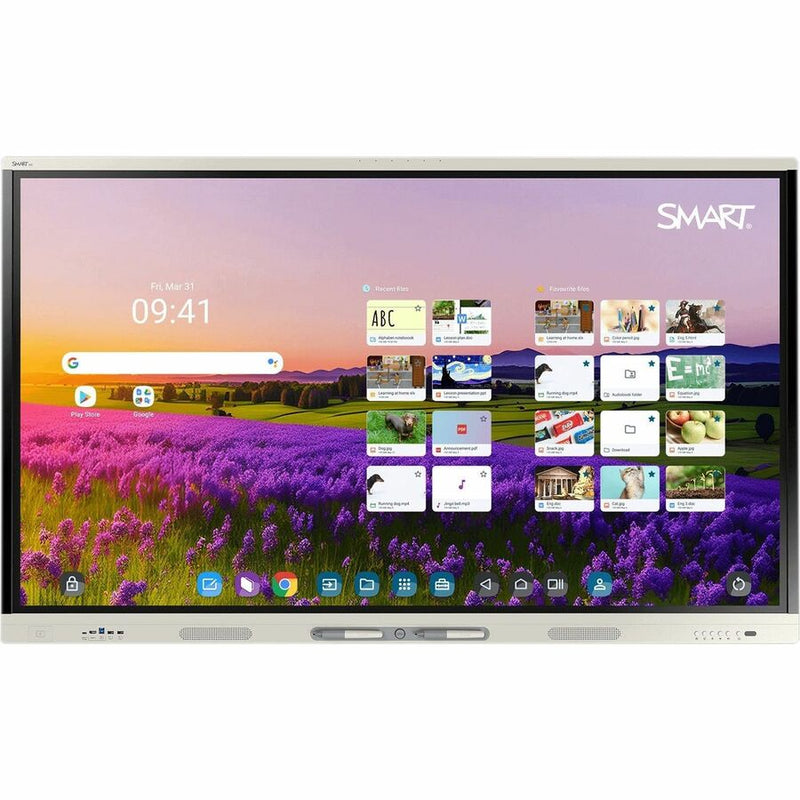

The SMART Board MX086-V5 Interactive Display with iQ is a powerful 86-inch 4K UHD collaboration solution designed for modern classrooms and business environments. Engineered for reliability and ease of use, this display delivers exceptional visual clarity, responsive touch performance, and seamless connectivity to support engaging presentations, interactive lessons, and dynamic teamwork.
Featuring HyPr Touch™ with Advanced IR technology, the MX086-V5 enables ultra-precise interaction with up to 50 simultaneous touch points, allowing multiple users to collaborate effortlessly. The embedded Android™ 13 operating system with iQ provides instant access to digital whiteboarding, screen sharing, web browsing, and cloud-based applications without requiring an external PC.
With built-in NFC authentication, integrated microphones with echo cancellation, and powerful dual speakers, this display enhances both in-room and hybrid collaboration experiences. Designed for flexibility, it supports OPS PC modules, USB-C connectivity with power delivery, and a wide range of input/output options, making it ideal for enterprise and education deployments.
| Specification | Details |
|---|---|
| Display Size | 86-inch LED-backlit LCD |
| Resolution | 4K UHD (3840 × 2160) |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² |
| Refresh Rate | 60 Hz |
| Response Time | ≤ 8 ms |
| Viewing Angle | 178° |
| Touch Technology | HyPr Touch™ with Advanced IR |
| Touch Points | Up to 50 simultaneous touch points |
| Touch Accuracy | 1 mm precision |
| Touch Response Time | ≤ 5 ms |
| Operating System | Android 13 (upgradeable to Android 15) |
| Processor | Octa-core CPU |
| Memory | 8 GB DDR4 |
| Storage | 64 GB (expandable up to 576 GB) |
| Built-in Features | Digital whiteboard, browser, screen sharing, app support |
| Audio | Dual 20 W speakers with 6-microphone array and echo cancellation |
| Connectivity | Wi-Fi 6E, Bluetooth 5.2, dual LAN (RJ45) |
| NFC | Integrated RFID NFC reader/writer |
| Ports | HDMI 2.1, USB-C (up to 65W PD), USB-A, USB-B, VGA, RS-232, LAN |
| OPS Support | Compatible with SMART PCM modules |
| Sensors | Ambient light, proximity, infrared |
| Glass | Heat-tempered, anti-glare, anti-fingerprint, bonded glass |
| Mounting | VESA 800 × 600 mm |
| Power Requirement | 100–240V AC |
| Typical Power Consumption | 149 W |
| Included Accessories | 2 pens, remote control, Wi-Fi antennas, USB cables, power cable |
| Warranty | Standard SMART warranty (region-dependent) |
