Description

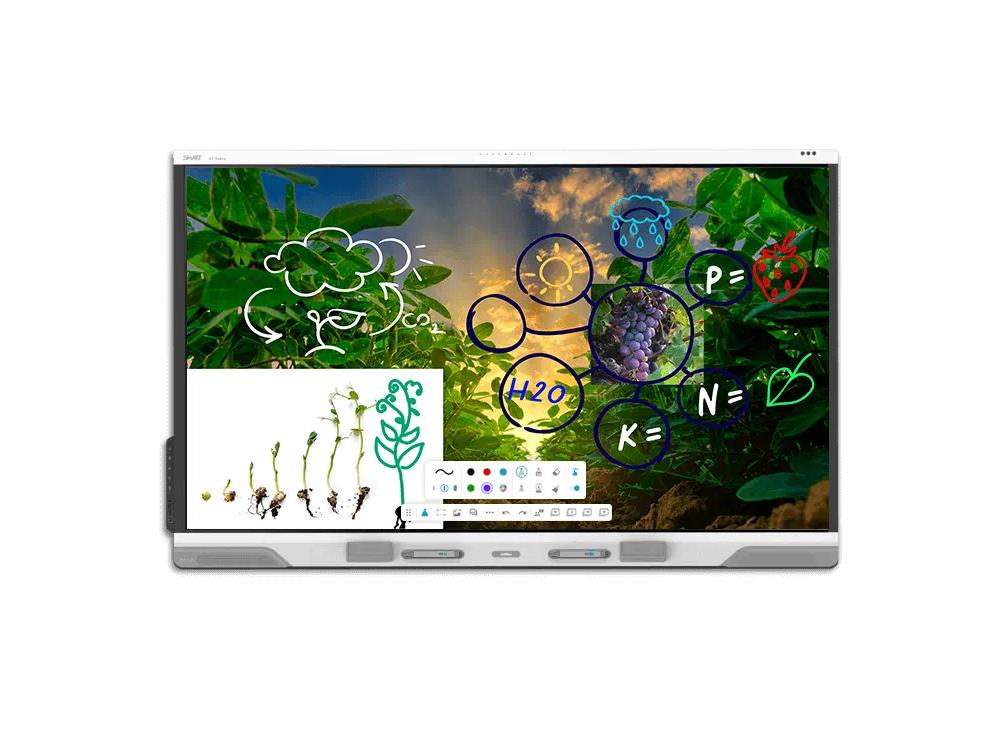

The SMART Board RX286-7L 86-inch Interactive Display with iQ is engineered for high-performance collaboration in classrooms and enterprise environments. Featuring stunning 4K UHD resolution and 490 cd/m² brightness, this large-format display delivers exceptional clarity, vibrant visuals, and wide-angle visibility for engaging presentations and interactive sessions.
Powered by the iQ embedded Android 13 operating system (upgradeable to Android 15), the RX286-7L enables seamless access to digital whiteboarding, web browsing, screen sharing, and cloud-based workflows without the need for external devices. With full Google Play Store integration and support for third-party applications, users can customize their experience to fit any workflow or teaching style.
The advanced HyPr Touch™ technology with Advanced IR ensures ultra-responsive and precise interaction, supporting up to 50 simultaneous touch points with ≤ 4 ms response time. Features like Object Awareness™, Pen ID™, and palm rejection create a natural and intuitive writing experience.
Designed for modern collaboration spaces, the display includes integrated environmental sensors that monitor room conditions such as temperature, humidity, CO₂, VOCs, and ambient light. A powerful audio system with dual 20 W speakers, a 15 W subwoofer, and an 8-microphone array ensures crystal-clear communication for hybrid meetings and remote learning.
Connectivity is robust and flexible with HDMI 2.1, USB-C with power delivery, OPS slot support, and Wi-Fi 6E. The optically bonded, anti-glare, heat-tempered glass enhances durability and visibility, while NFC login and magnetic tool holders streamline daily use. Backed by a comprehensive 7-year warranty, the RX286-7L delivers long-term reliability and peace of mind.
| Specification | Details |
|---|---|
| Display Size | 86-inch |
| Resolution | 4K UHD (3840 × 2160) |
| Brightness | 490 cd/m² |
| Refresh Rate | 60 Hz |
| Response Time | ≤ 8 ms |
| Viewing Angle | 178° |
| Glass Surface | Optically bonded, anti-glare, anti-fingerprint, heat-tempered |
| Touch Technology | HyPr Touch™ with Advanced IR |
| Touch Points | Up to 50 simultaneous touch points |
| Touch Response Time | ≤ 4 ms |
| Accuracy | 1 mm |
| Operating System | Android 13 (upgradeable to Android 15) |
| Processor | Octa-core CPU |
| Memory | 8 GB DDR4 |
| Storage | 64 GB (expandable up to 576 GB) |
| Built-in Features | Whiteboard, browser, screen sharing, cloud access, app library |
| Google Integration | Google Play Store and Google services support |
| Audio | Dual 20 W speakers and 15 W subwoofer |
| Microphones | 8-microphone array with echo cancellation |
| Sensors | Ambient light, proximity, temperature, humidity, CO₂, VOC, PM2.5 |
| Connectivity | HDMI 2.1, USB-C, USB-A, USB-B, VGA, RJ45, RS-232 |
| Wireless | Wi-Fi 6E, Bluetooth 5.2 |
| NFC | Integrated RFID NFC reader/writer |
| OPS Support | Yes (SMART PCM modules) |
| Power Requirements | 100V–240V AC, 50–60 Hz |
| Mounting | VESA 800 × 600 mm |
| Included Accessories | Stylus (x2), erasers (x2), remote, cables, Wi-Fi antennas |
| Frame Color | White |
| Warranty | 7-Year Manufacturer Warranty |
