Description

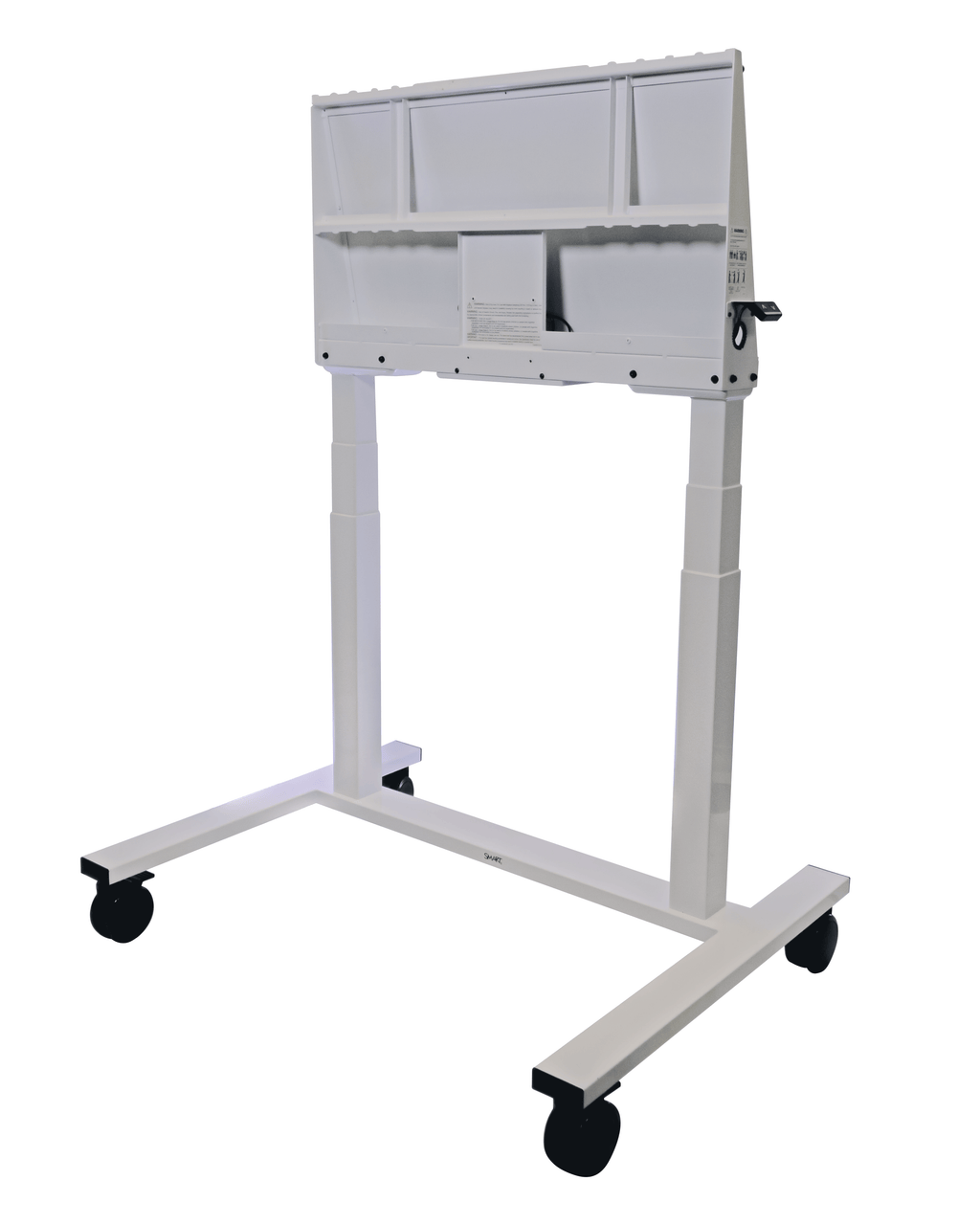

The SMART WSE-510-W Electric Height-Adjustable Wall Stand is engineered to enhance accessibility, flexibility, and safety in modern collaborative environments. Designed specifically for SMART Board interactive displays, this robust wall-mounted solution delivers smooth, powered height adjustment, enabling users of all heights and abilities to interact comfortably.
With a durable steel frame and TÜV-certified drive system, the stand supports large-format displays up to 86 inches while maintaining stability and reliability in high-use environments such as classrooms, conference rooms, and training spaces. Its integrated safety features, including obstruction detection with bounce-back response and automatic locking controls, ensure secure operation at all times.
Built to meet ADA compliance standards, the WSE-510-W promotes inclusive engagement while offering versatile VESA compatibility for seamless installation. This wall stand is the ideal solution for organizations seeking a professional, space-saving mounting system with intelligent height adjustment capabilities.
| Specification | Details |
|---|---|
| Product Type | Electric Height-Adjustable Wall Stand |
| Color | White |
| Compatibility | SMART Board RX, GX, MX, M Pro, NX, QX Pro, 6000S (V3) Series |
| Maximum Display Size | Up to 86 inches (218 cm) diagonal |
| Maximum Display Width | Up to 80 inches (203 cm) |
| Maximum Display Weight | Up to 220 lb (100 kg) |
| Maximum Lift Capacity | Up to 254 lb (115 kg) including accessories |
| Height Adjustment Range | 26 inches (65 cm) powered adjustment |
| Minimum Height | 43 inches (109 cm) |
| Maximum Height | 69 inches (174 cm) |
| Mounting Compatibility | VESA patterns: 400x400 to 800x600 (M8) |
| Frame Construction | Heavy-duty steel frame |
| Safety Features | Obstruction detection with bounce-back, automatic locking controller |
| Compliance | ADA compliant |
| Certifications | FCC, ISED, UL, CE, UKCA |
| Environmental Compliance | RoHS, REACH, WEEE, TSCA, Packaging standards |
| Power Requirements | 120V AC (NA) / 230V AC (EU) |
| Standby Power Consumption | Less than 0.7 W |
| Duty Cycle | 10% (2 minutes operation, 18 minutes rest) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | Up to 90% non-condensing |
| Included Accessories | Transfer cable, power strip |
| Optional Accessories | Laptop shelf, camera bracket |
| Stand Weight | 64 lb (29 kg) |
| Shipping Weight | 75 lb (34 kg) |
| Warranty | 5-Year SMART Warranty |
