Description

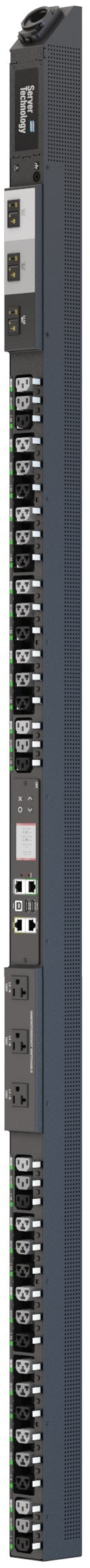

The Server Technology PRO4X C4T36RA-YCBE2FE3 Smart POPS PDU delivers advanced power distribution, intelligent monitoring, and secure connectivity for modern data centers. Built on the Xerus™ network interface platform, this PDU provides remote access to power status, outlet-level current monitoring, and branch circuit protection.
Featuring HDOT Cx outlets—a UL-tested hybrid supporting both C13 and C19 plugs—this PDU ensures maximum flexibility and future-proof deployment. The RamLock™ outlet locking mechanism prevents accidental disconnects, while RGB LED indicators provide real-time outlet state and power threshold visibility.
With Per Inlet Power Sensing (PIPS®) and Per Outlet Power Sensing (POPS®), operators gain billing-grade accuracy for energy, power factor, crest factor, and harmonics. Hot-swappable controllers, waveform capture, multi-unit linking, and environmental monitoring integration enhance reliability and efficiency.
Certified for 60 °C high-temperature environments, the PRO4X PDU is designed for scalability, uptime, and simplified management in mission-critical infrastructure.
| Category | Details |
|---|---|
| Brand | Server Technology (Legrand) |
| Product Line | PRO4X Smart POPS PDU |
| Model / SKU | C4T36RA-YCBE2FE3 |
| Outlets | (12) IEC 60320/C13 ≤12A @208V, (24) HDOT Cx ≤16A @208V, (3) NEMA 5-20R utility outlets |
| Input Voltage | 208 V AC |
| Input Plug | NEMA L21-30P |
| Input Current (Rated) | 24 A |
| Input Power Capacity | 8.6 kW |
| Frequency | 50/60 Hz |
| Monitoring | PIPS® (inlet) and POPS® (outlet) sensing with ±0.2–1% accuracy |
| Networking / Interfaces | Dual Ethernet (10/100/1000 Mbps), USB-A/B, Sensor Port, PDU Link, Optional Wi-Fi |
| Protocols Supported | HTTP/HTTPS, SNMPv2c/v3, SSH, Telnet, Syslog, LDAP(S), RADIUS, TACACS+, FTP/SFTP |
| Security | TLS 1.2, LDAPv3/LDAPS, external authentication & authorization |
| Display | Multi-color LCD with local alerts & alarms |
| Features | RamLock locking outlets, RGB LED outlet indicators, waveform capture, alternating-phase outlets, 45° angled infeed, hot-swappable controller |
| Environmental Monitoring | Supports up to 12 daisy-chained DX2 SmartSensors (temperature, humidity, water, airflow, etc.) |
| Physical Dimensions | 70.0 in x 2.2 in x 2.5 in (1778 mm x 56 mm x 64 mm) |
| Operating Temp | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temp | –30 °C to 80 °C (–22 °F to 176 °F) |
| Compliance & Safety | UL 62368-1, CSA C22.2 No. 62368-1, FCC Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited (parts & labor); extended support available |
| Color Options | Black paint with choice of overlay labels: red, blue, green, orange, yellow, white |
