Description

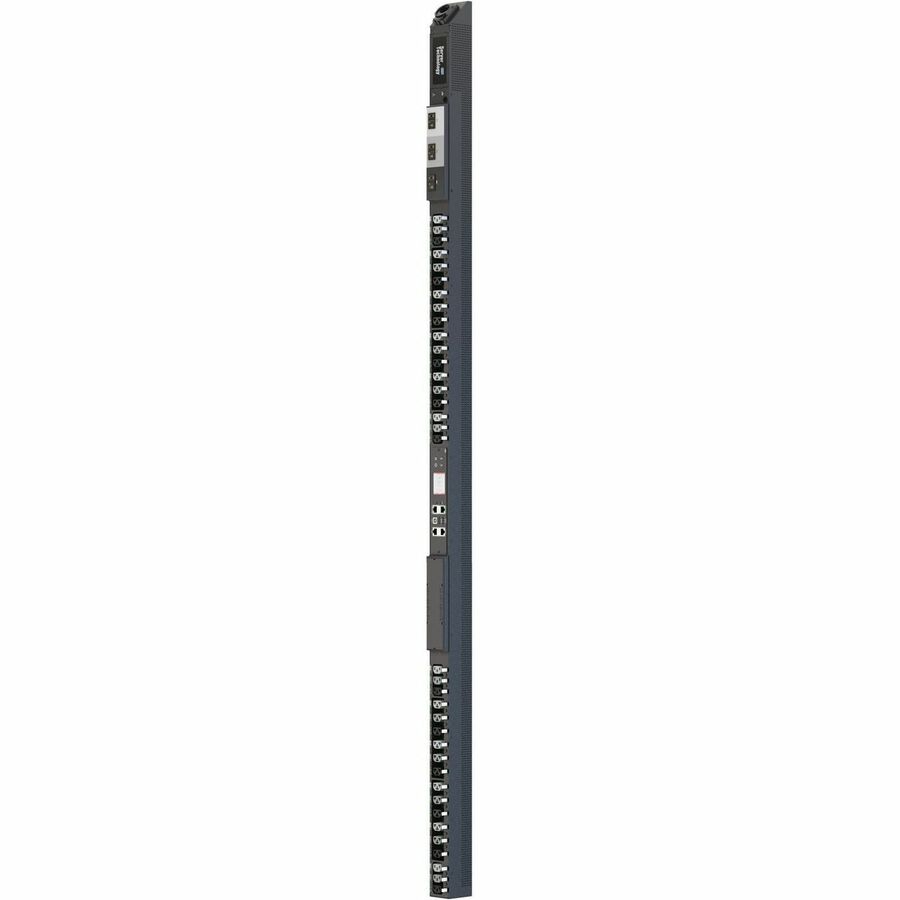

The Server Technology PRO4X C4S36RA-0ABE2FE2 Smart PDU is engineered to deliver intelligent power distribution, advanced monitoring, and robust security for modern data centers. Built on the cutting-edge Xerus network interface platform, this PDU enables remote access to power status, per-inlet power sensing, branch current monitoring, and automated environmental alerts.
Featuring HDOT Cx outlets that support both C13 and C19 plugs, the C4S36RA ensures maximum flexibility and future-proof compatibility. Its RamLock self-locking outlets prevent accidental disconnects, while RGB LED indicators provide real-time outlet status. With multi-unit linking, hot-swappable controllers, alternating-phase outlets, and compliance with stringent UL/IEC standards, this PDU guarantees operational efficiency, uptime, and scalability in mission-critical environments.
| Category | Details |
|---|---|
| Brand | Server Technology (Legrand) |
| Product Line | PRO4X Smart PDU |
| Model / SKU | C4S36RA-0ABE2FE2 |
| Outlets | 36 total – (12) IEC C13, (24) HDOT Cx (C13/C19 hybrid) |
| Inlet Type | IEC C20, 100–240V |
| Input Voltage | 208V |
| Input Current (Rated) | 16A (20A max) |
| Power Capacity | 3.3 kW |
| Frequency | 50/60 Hz |
| Features | HDOT Cx outlets, RamLock locking mechanism, multi-unit linking (up to 16), alternating-phase outlets, hot-swappable controller, RGB LED outlet indicators |
| Monitoring | PIPS® Per Inlet Power Sensing (Current, Voltage, Power, Crest Factor, Power Factor, Energy), waveform capture |
| Environmental Sensors | Supports up to 12 DX2 SmartSensors (temperature, humidity, airflow, water, differential pressure, etc.) |
| Communications & Security | Dual Ethernet (10/100/1000 Mbps), optional Wi-Fi, SNMP v2/v3, HTTP/HTTPS, SSH, Telnet, Syslog, LDAP(S), RADIUS, TACACS+, 256-bit AES encryption |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CE, RoHS, IEC/EN 62368-1, UKCA |
| Physical Dimensions | 70.0 in (1778 mm) H × 2.2 in (56 mm) W × 2.5 in (64 mm) D |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Storage Temp. | -30°C to 80°C (-22°F to 176°F) |
| Warranty | 2-Year Limited Parts & Labor (extended options available) |
