Description

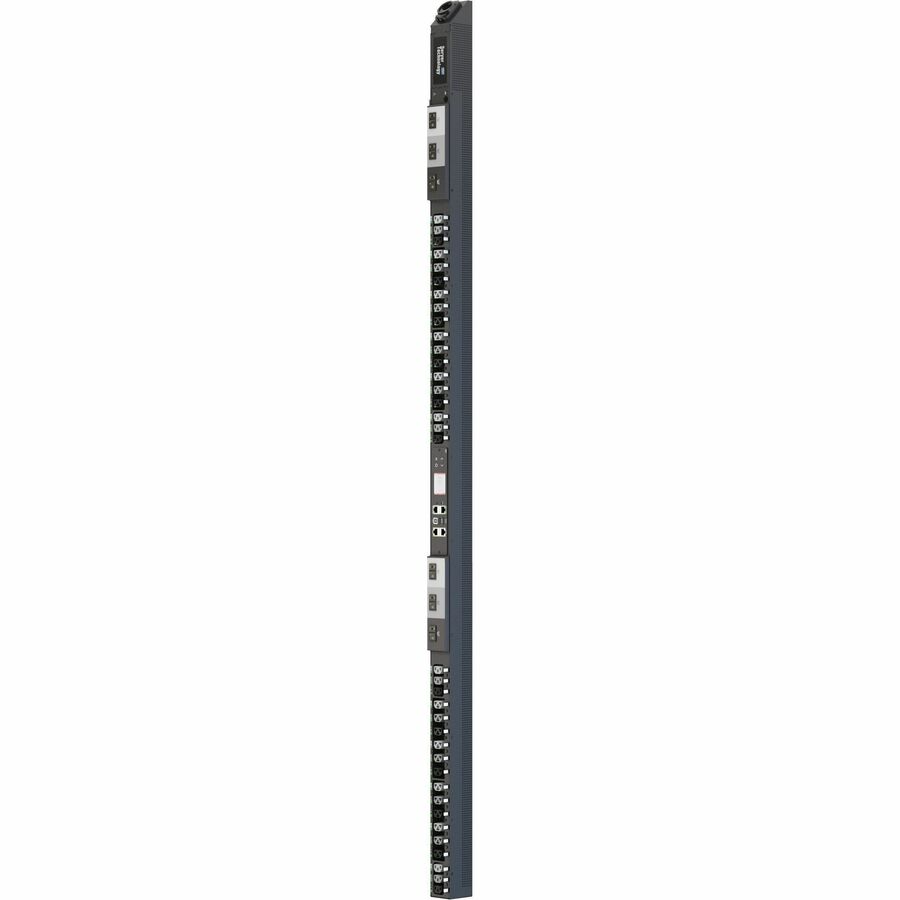

The Server Technology PRO4X C4S36RA-DFBD2FE1 Smart PDU delivers advanced power distribution and monitoring designed for modern data centers. Powered by the Xerus™ network interface platform, this PDU provides secure remote access, input and branch current monitoring, and per-outlet control.
Equipped with RamLock™ self-locking outlets and HDOT Cx outlets (hybrid C13/C19), it ensures compatibility and cable retention for both C14 and C20 plugs. Multi-unit linking supports daisy chaining up to 16 PDUs under one IP address, while integrated environmental monitoring and SNMP traps offer real-time alerts.
With features like hot-swappable controllers, RGB LED outlet indicators, alternating-phase outlets, and waveform capture, this PDU simplifies load balancing and improves uptime reliability. Built for high-performance environments, it is rated for 60°C operating conditions, meeting UL/IEC safety standards, and supports flexible mounting with color-coded options.
This model is ideal for enterprise data centers needing secure, efficient, and future-ready power distribution.
| Category | Details |
|---|---|
| Manufacturer | Server Technology (Legrand) |
| Product Line | PRO4X Smart PDU |
| Model / SKU | C4S36RA-DFBD2FE1 |
| Outlets | (12) x IEC 60320/C13 (≤12A @208V L-L, 15A peak)(24) x HDOT Cx hybrid C13/C19 (≤16A @208V L-L, 20A peak) |
| Input Voltage | 208V, 50/60 Hz |
| Input Plug | CS8365 3P+G, 50A |
| Input Current Rated | 40A (50A max) |
| Power Capacity | 14.4 kW |
| Key Features | Xerus™ network interface, HDOT Cx hybrid outlets, RamLock™ locking system, RGB LED outlet indicators, waveform capture, PIPS® per-inlet power sensing, hot-swappable controller, alternating-phase outlets, environmental monitoring (up to 12 sensors), multi-unit linking (up to 16 PDUs), branch circuit protection (UL 489) |
| Network & Security | Dual Ethernet 10/100/1000 Mbps, Optional Wi-Fi, USB ports, Web GUI & CLI, SNMP v2/v3, LDAP/LDAPS, RADIUS, TACACS+, HTTPS/SSH/Telnet |
| Physical Dimensions | 70.0 in H x 2.2 in W x 2.5 in D (1778mm x 56mm x 64mm) |
| Environmental | Operating: 32°F–140°F (0°C–60°C), Storage: -22°F–176°F (-30°C–80°C), RH: 5–90% non-condensing |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | 2-year limited warranty (extended options available) |
| Optional Accessories | Wi-Fi dongle, smart sensors (temperature, humidity, airflow, leak detection, etc.), smart locks, asset management strips |
