Description

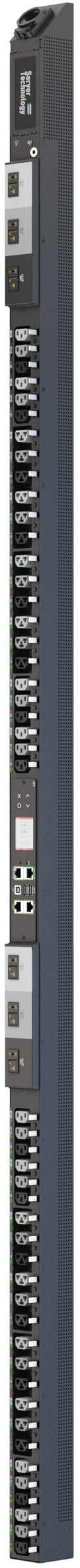

The Server Technology PRO4X C4S48RA-DQBD2FD3 Smart PDU is a next-generation power distribution solution built on the advanced Xerus™ network interface platform. Designed for high-density data centers, it provides remote access to power, input and branch current monitoring, and advanced network security features including 256-bit AES encryption, SSH, SSL, and HTTPS support.
Equipped with RamLock™ locking outlets and award-winning HDOT Cx outlets, this PDU supports both C13 and C19 configurations, ensuring superior plug retention and flexible deployment. Additional features include multi-unit linking for cascading up to 16 PDUs, per-inlet power sensing (PIPS®), and environmental monitoring with support for up to 12 daisy-chained SmartSensors.
The angled infeed design improves accessibility, while alternating-phase outlets simplify load balancing and optimize airflow. With its hot-swappable controller, RGB LED outlet indicators, waveform capture, and multi-color LCD display, this PDU delivers maximum visibility and reliability in mission-critical environments.
Engineered for 60°C high-temperature ratings and available in multiple color-coded options, the C4S48RA-DQBD2FD3 ensures dependable performance, simplified management, and secure power distribution for modern data centers.
| Category | Details |
|---|---|
| Brand | Server Technology |
| Product Line | PRO4X Series |
| Model / SKU | C4S48RA-DQBD2FD3 |
| Outlets | 48 total: (24) IEC 60320/C13 ≤ 12A @208V (15A Peak), (24) HDOT Cx ≤ 16A @208V (20A Peak) |
| Input Voltage | 208V |
| Input Plug | 208V Delta 60A IEC 60309 3P+G 9Hr |
| Input Current | 60A (Rated 48A) |
| Power Capacity | 17.3 kW |
| Monitoring | PIPS® (Per Inlet Power Sensing), waveform capture, branch circuit protection |
| Security & Protocols | HTTPS, SSHv2, Telnet, SNMPv2c/v3, LDAP/LDAPS, RADIUS, TACACS+, IPv4/IPv6 |
| Controller | Hot-swappable controller with LCD display |
| Indicators | RGB LED outlet status indicators |
| Multi-Unit Linking | Up to 16 PDUs (USB/Ethernet cascading) |
| Environmental Support | Up to 12 DX2-series SmartSensors (temperature, humidity, airflow, water leak, etc.) |
| Physical Dimensions | 80.0 in x 2.2 in x 2.5 in (2032 mm x 56 mm x 64 mm) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL 62368-1, CSA C22.2 No. 62368-1, FCC Part 15 Class A, CAN ICES-003 Class A |
| Warranty | Standard 2-year limited, extended options available |
| Color Options | Black with optional label colors (Red, Blue, Green, Yellow, White, Orange) |
