Description

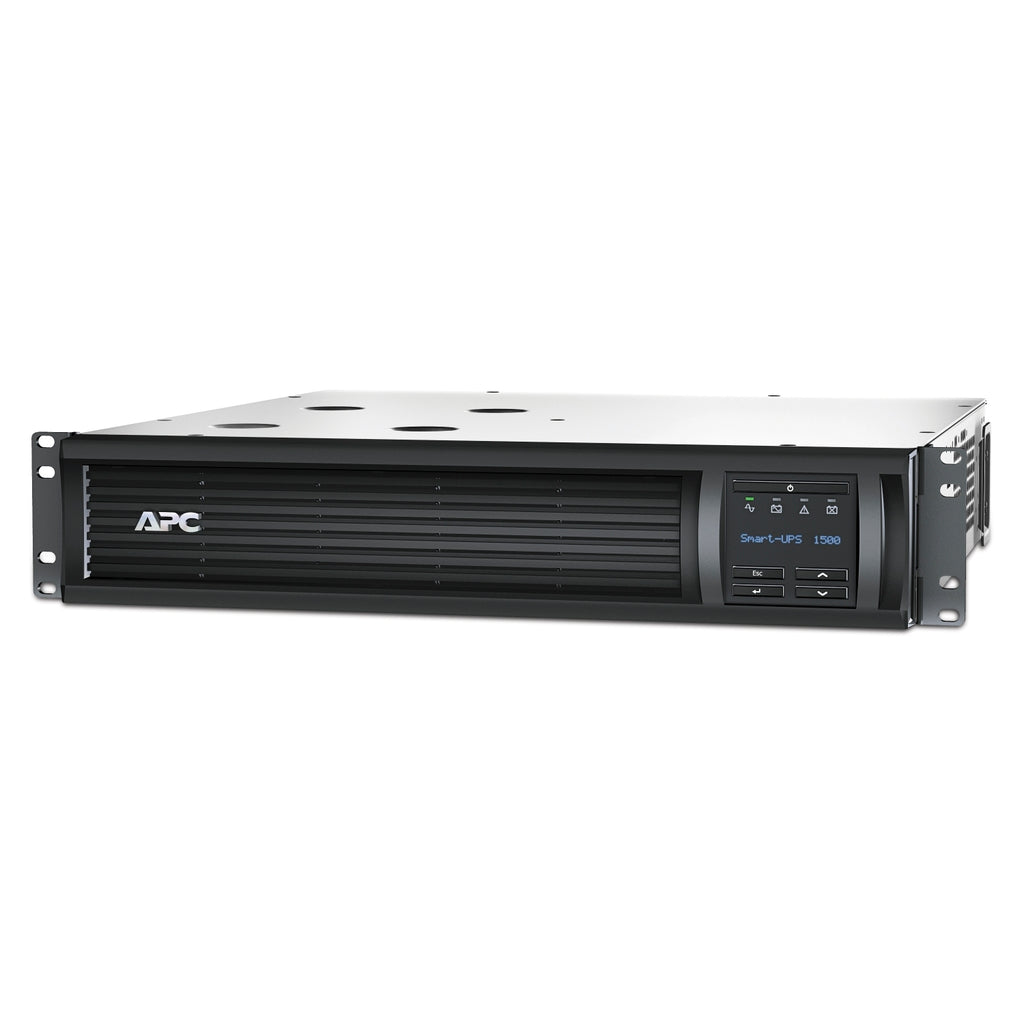

The APC Smart-UPS SMT1500R2X122 delivers reliable line-interactive power protection for network and server environments. With 1500VA/1000W capacity, this 2U rackmount UPS ensures continuous operation for connected equipment during power interruptions. It features an LCD control panel, Automatic Voltage Regulation (AVR), and pure sine wave output, safeguarding sensitive electronics from surges and fluctuations. Designed for flexibility and manageability, it includes USB and RS-232 ports, SmartSlot expandability, and six NEMA 5-15R outlets. The NEMA L5-15P twist-lock plug ensures secure connection, while hot-swappable lead-acid batteries allow easy maintenance. Certified for CSA and compliant with RoHS and REACh standards, this UPS combines performance, sustainability, and efficiency for critical IT operations.
| Category | Details |
|---|---|
| Brand | APC (by Schneider Electric) |
| Model | SMT1500R2X122 |
| Type | Line-Interactive Uninterruptible Power Supply (UPS) |
| Form Factor | Rackmount 2U |
| Power Capacity | 1500VA / 1000W |
| Input Voltage | 120V AC |
| Input Plug Type | NEMA L5-15P (Twist-lock) |
| Output Voltage | 120V AC |
| Output Connections | 6 × NEMA 5-15R |
| Waveform Type | Pure Sine Wave |
| Topology | Line-Interactive |
| Frequency | 50/60Hz ±3Hz (auto-sensing) |
| Transfer Time | Typical 4ms, Max 8ms |
| Battery Type | Lead-Acid, Hot-Swappable |
| Replacement Battery | APCRBC133 |
| Recharge Time | 3 hours typical |
| Battery Life | 4–6 years |
| Noise Level | 46 dBA |
| Heat Dissipation | 90 BTU/hr |
| Efficiency | 75–154V adjustable; 82–144V typical |
| Communication Ports | USB, RS-232, SmartSlot |
| Control Interface | Multi-function LCD with status and control |
| Surge Protection | 459 Joules, multi-pole noise filtering |
| Certifications | CSA, RoHS (with exemptions), REACh |
| Environmental Compliance | Recyclable packaging, user-replaceable battery, WEEE label |
| Operating Temperature | 0–40°C (32–104°F) |
| Operating Humidity | 0–95% (non-condensing) |
| Altitude (Operation) | 0–10,000 ft |
| Dimensions (W × D × H) | 17.01 × 18.00 × 3.50 in (432 × 457 × 89 mm) |
| Net Weight | 63.14 lb (28.64 kg) |
| Package Weight | 70.35 lb (31.91 kg) |
| Included Accessories | Rack rails, RS-232 cable, USB cable, installation guide, documentation CD |
| Equipment Protection Policy | Lifetime, up to $150,000 |
| Color | Black |
| GTIN | 731304294061 |
| Sustainability Highlights | Energy-efficient design, recyclable packaging, circularity initiative compliance |
