Description

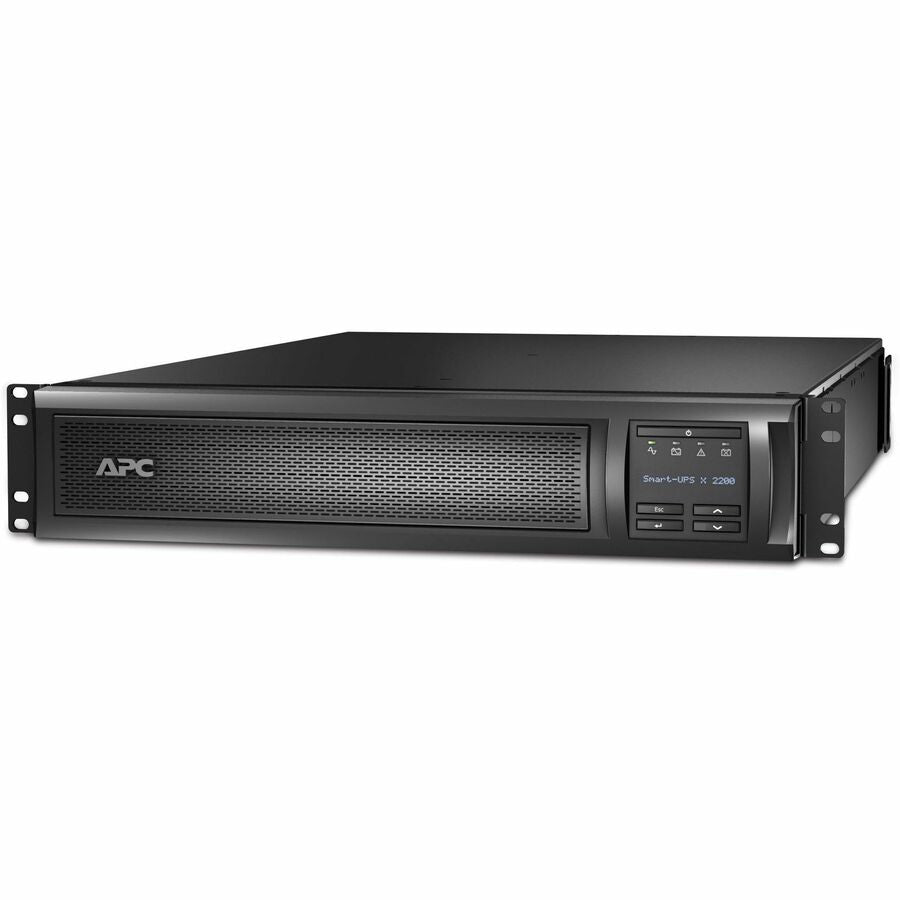

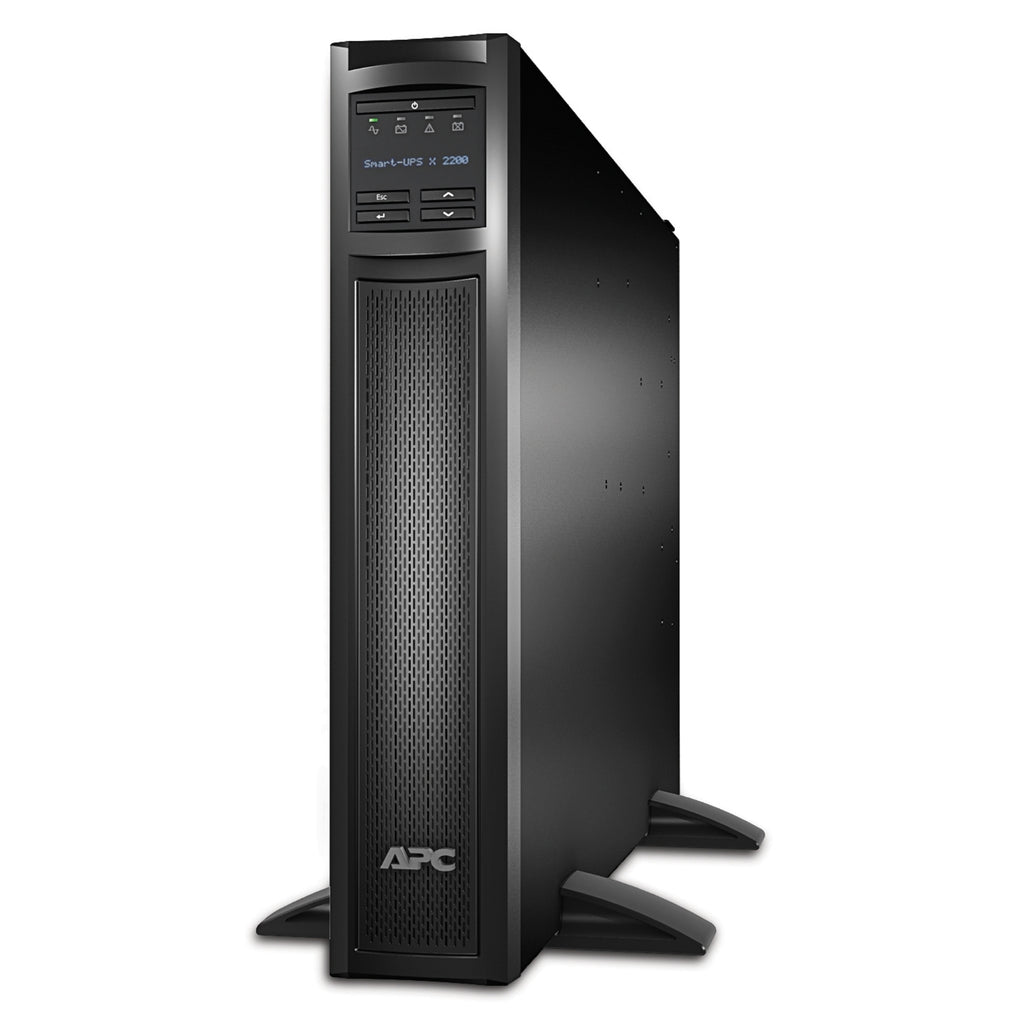

The APC Smart-UPS SMX2200RMLV2U is a high-performance 2200VA/1980W line-interactive UPS designed to protect servers, switches, routers, and other critical network devices. Its 2U rack/tower convertible form factor supports flexible installation, while the pure sine wave output ensures compatibility with sensitive electronics. This model includes 6x NEMA 5-15R and 2x NEMA 5-20R outlets, powered by a replaceable lead-acid battery. Features include user-selectable low voltage (100V–127V), a SmartSlot for network management cards, extended runtime support, and graceful shutdown via PowerChute software. Ideal for maintaining uptime and business continuity in enterprise IT environments.
| Category | Details |
|---|---|
| Model Number | SMX2200RMLV2U |
| Topology | Line Interactive |
| Capacity | 2200VA / 1980W |
| Form Factor | Rack/tower convertible (2U) |
| Input Voltage | 100V–127V |
| Input Plug Type | NEMA L5-30P |
| Output Voltage | 120V (Selectable: 100V/110V/127V) |

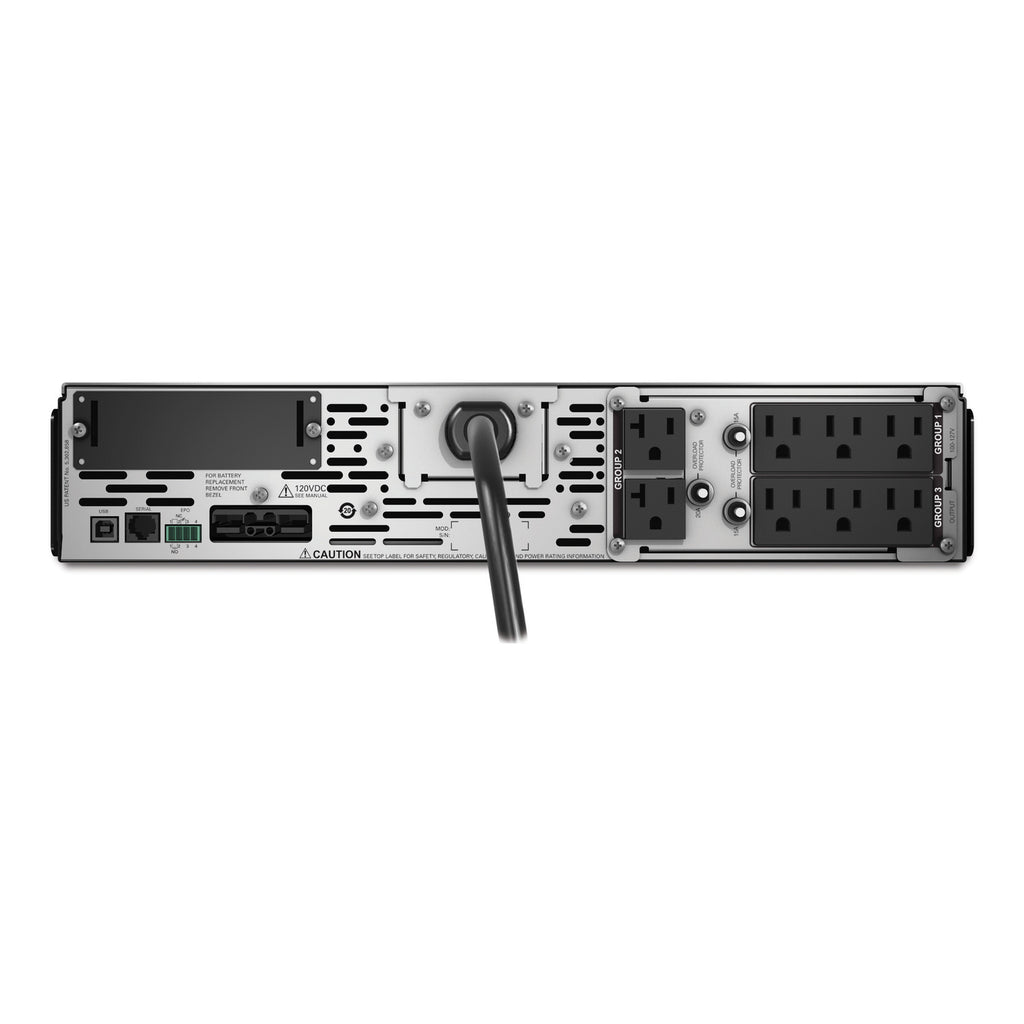

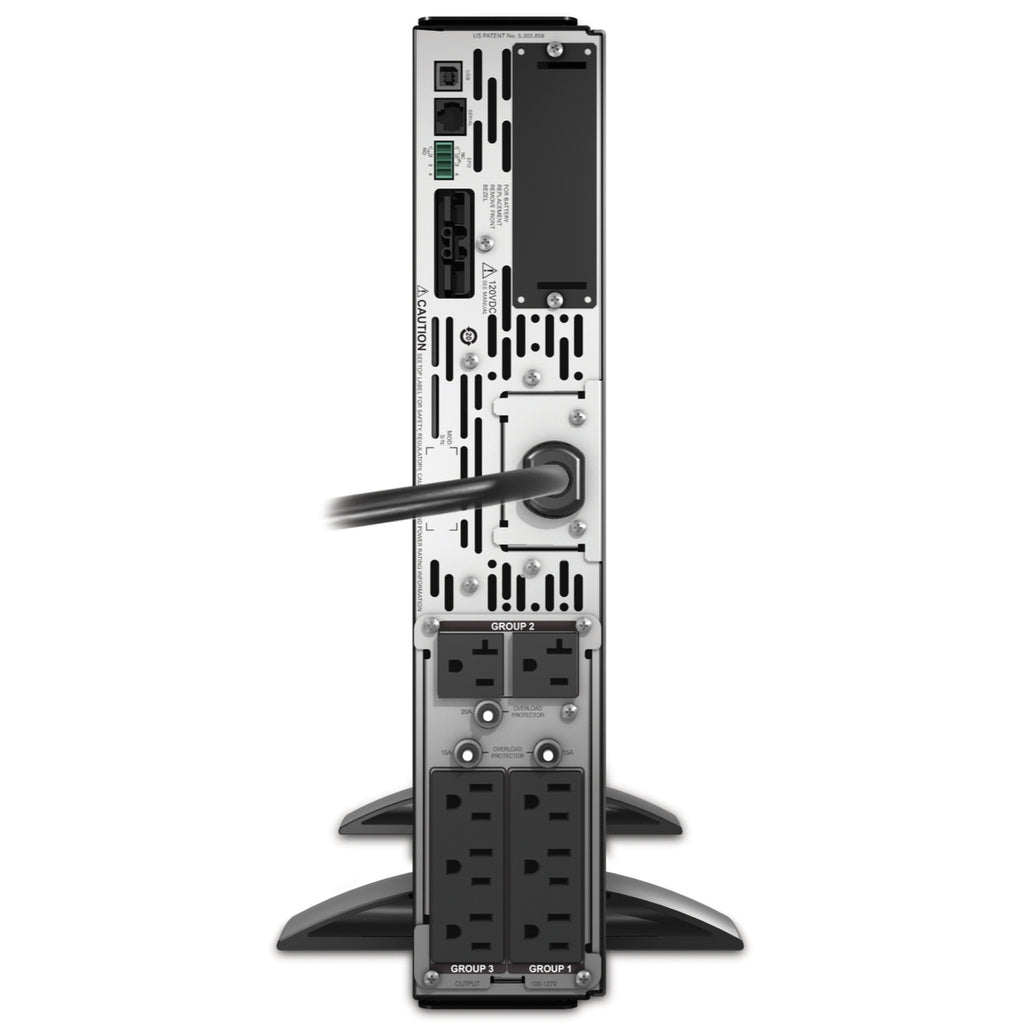

| Outlets | 6x NEMA 5-15R, 2x NEMA 5-20R |
| Waveform Output | Pure Sine Wave |
| Battery Type | Lead-acid, user-replaceable (APCRBC117) |
| Recharge Time | 3 hours |

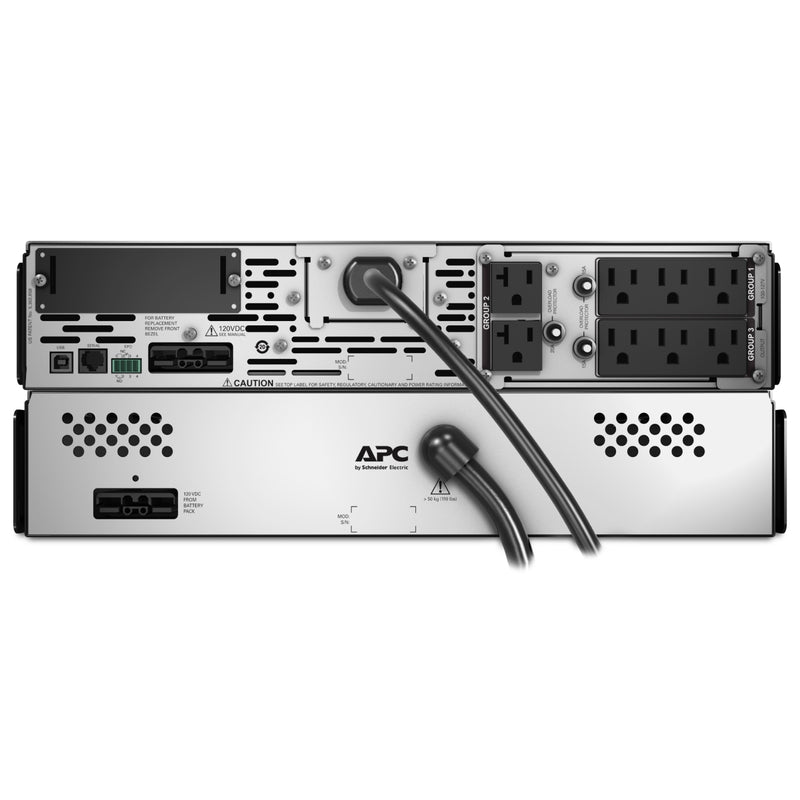

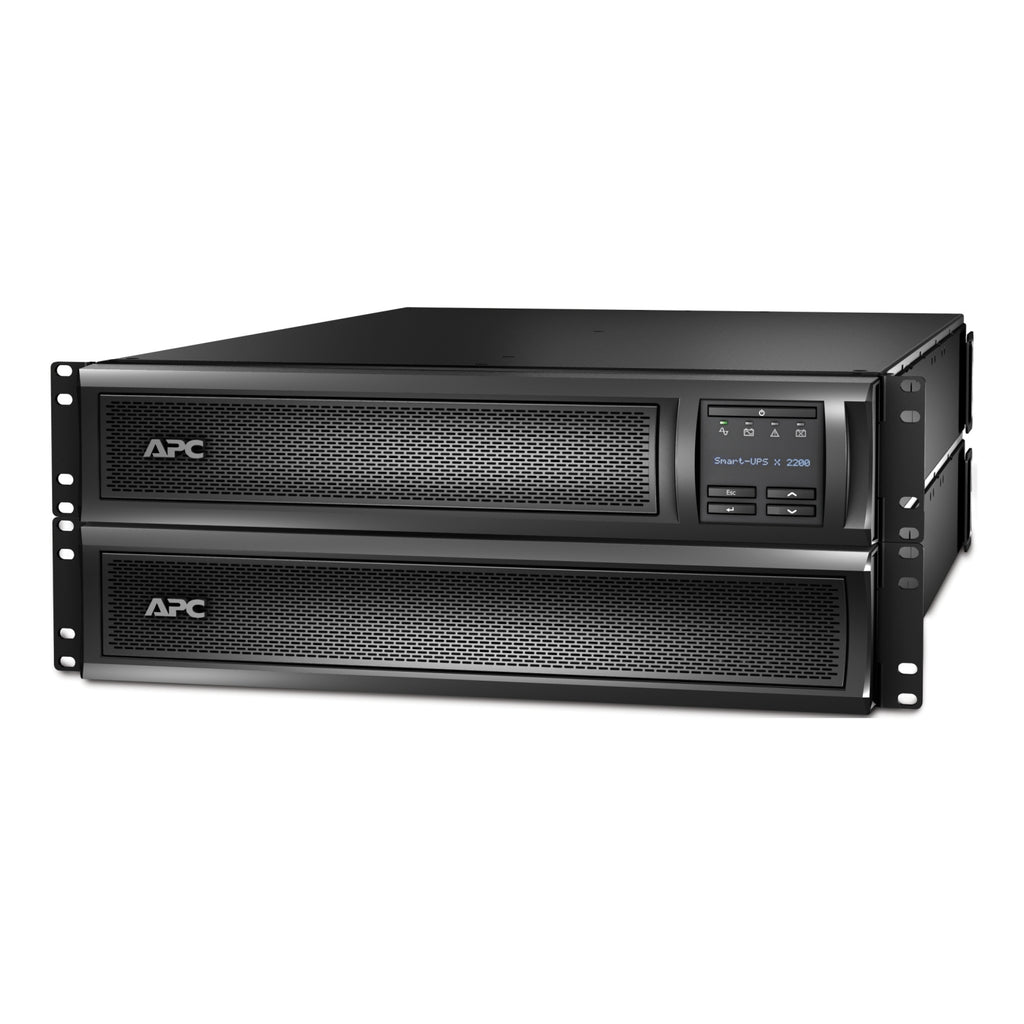

| Expandable Runtime | Yes (up to 10 external battery packs - SMX120RMBP2U) |
| Runtime at Full Load | 9 minutes 45 seconds (at 1980W) |
| Display | LCD panel with status/control options |
| Network Management Slot | 1 SmartSlot |
| Emergency Power Off (EPO) | Yes |
| Communication Ports | USB, Serial |
| Surge Protection | 540 Joules |
| Warranty | 3 years UPS / 2 years battery |

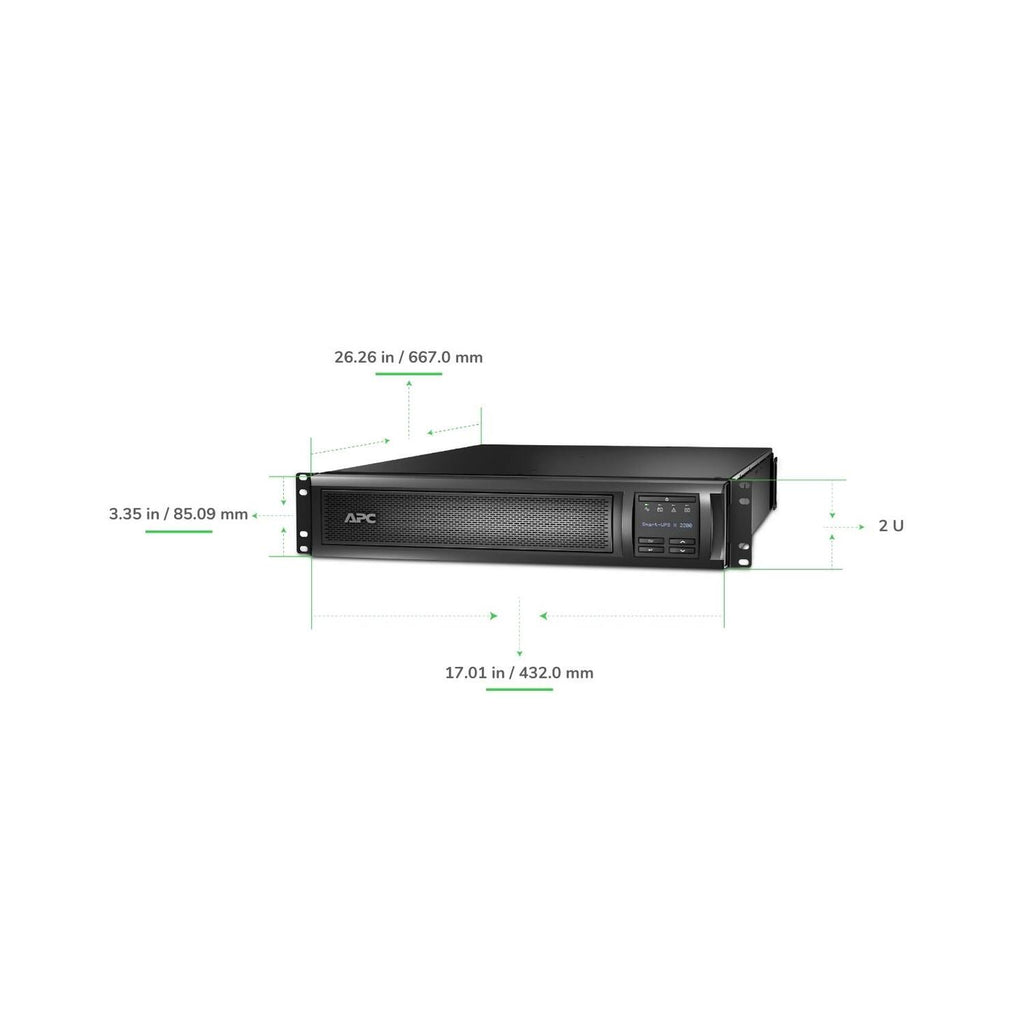

| Dimensions (H x W x D) | 3.35 x 17.00 x 26.26 in (8.5 x 43.18 x 66.7 cm) |
| Weight | 84.77 lbs (38.45 kg) |
| Environmental | 0–40°C operating temp, 0–95% humidity, 55 dBA noise level |
| Certifications | BSMI, CSA, NOM, TÜV, VCCI Class A |
