Description

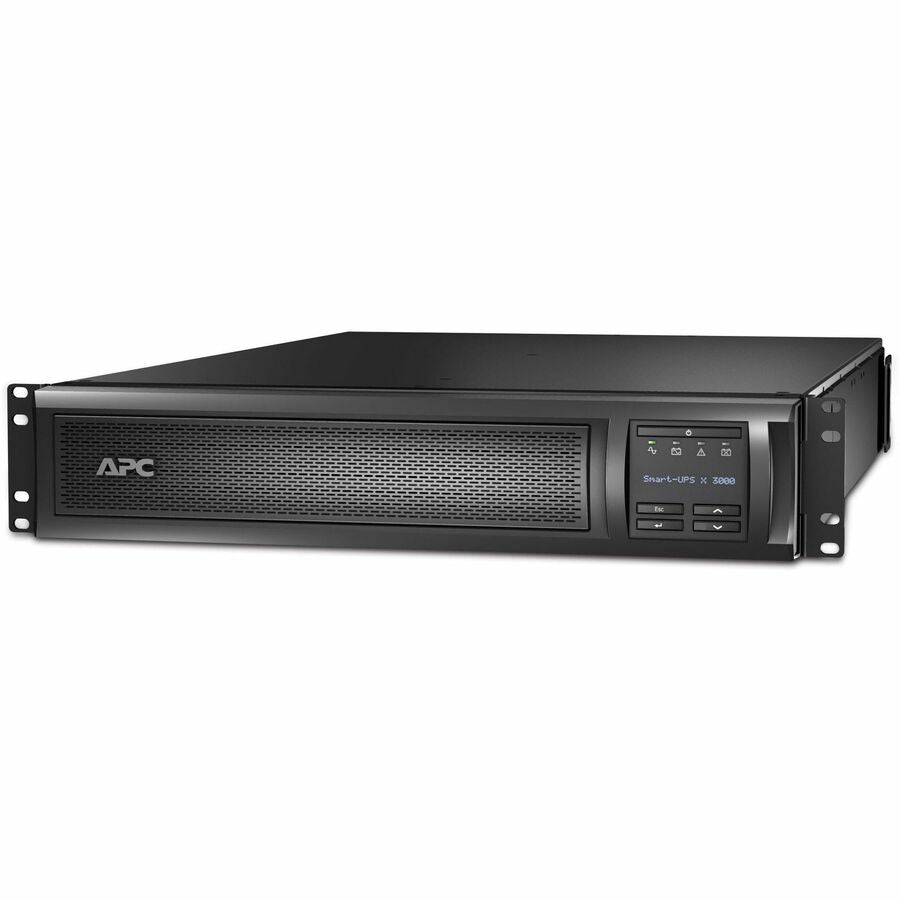

Ensure uptime and power continuity for your critical IT infrastructure with the APC Smart-UPS X SMX3000RMLV2UNC. This 2880VA/2700W line interactive UPS delivers pure sine wave output in a space-saving 2U rack/tower convertible design. Equipped with 7 NEMA outlets, including L5-30R, and a pre-installed Network Management Card, it enables real-time monitoring and remote management. It supports up to 10 external battery packs for extended runtime and includes rail kit, temperature sensor, and secure shutdown software. Compatible with replacement battery APCRBC117.
| Feature | Details |
|---|---|
| Model | SMX3000RMLV2UNC |
| Topology | Line Interactive |

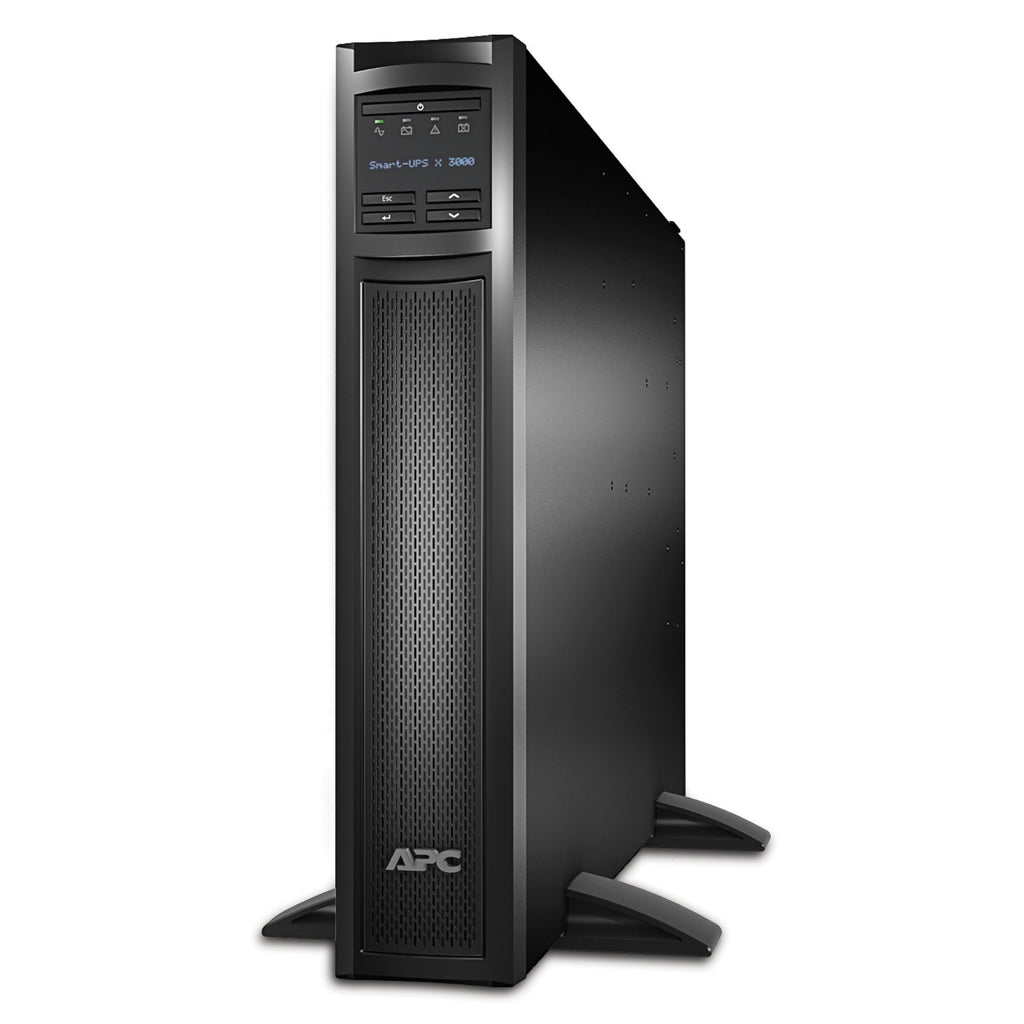

| Form Factor | Rack/Tower Convertible (2U) |
| Output Power | 2880VA / 2700W |
| Output Voltage | 100V / 110V / 120V / 127V |
| Input Voltage | 100V to 127V |
| Input Plug Type | NEMA L5-30P |

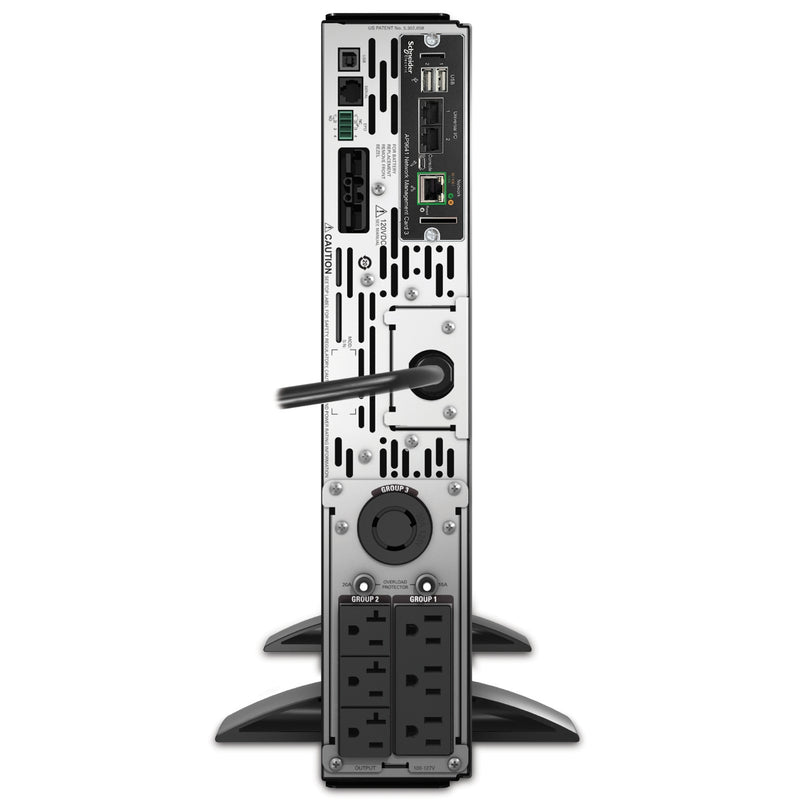

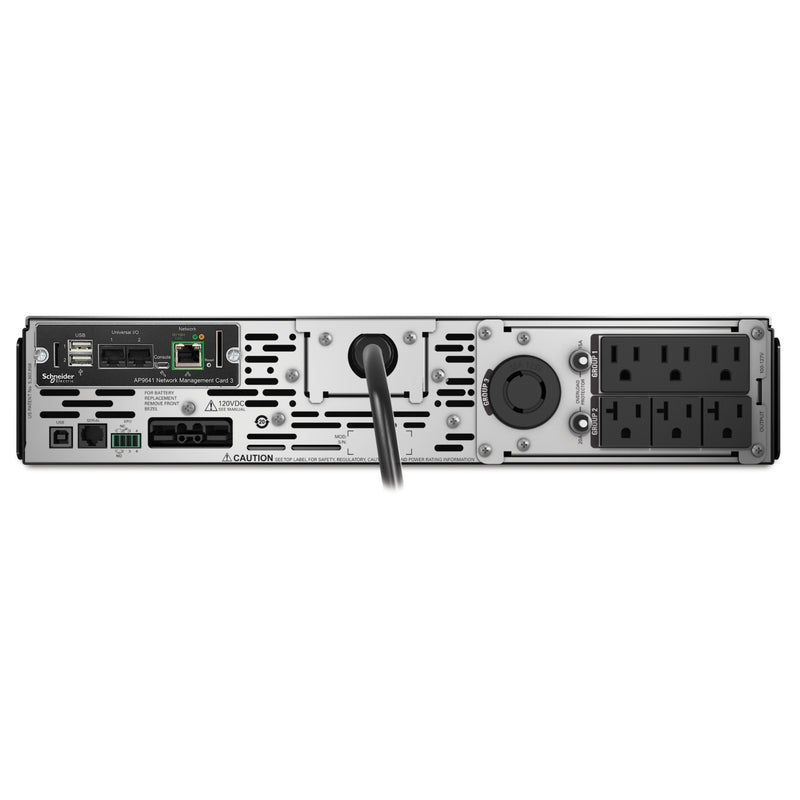

| Output Connections | 3x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-30R |
| Battery Type | Lead-acid (User-replaceable) |
| Replacement Battery | APCRBC117 |

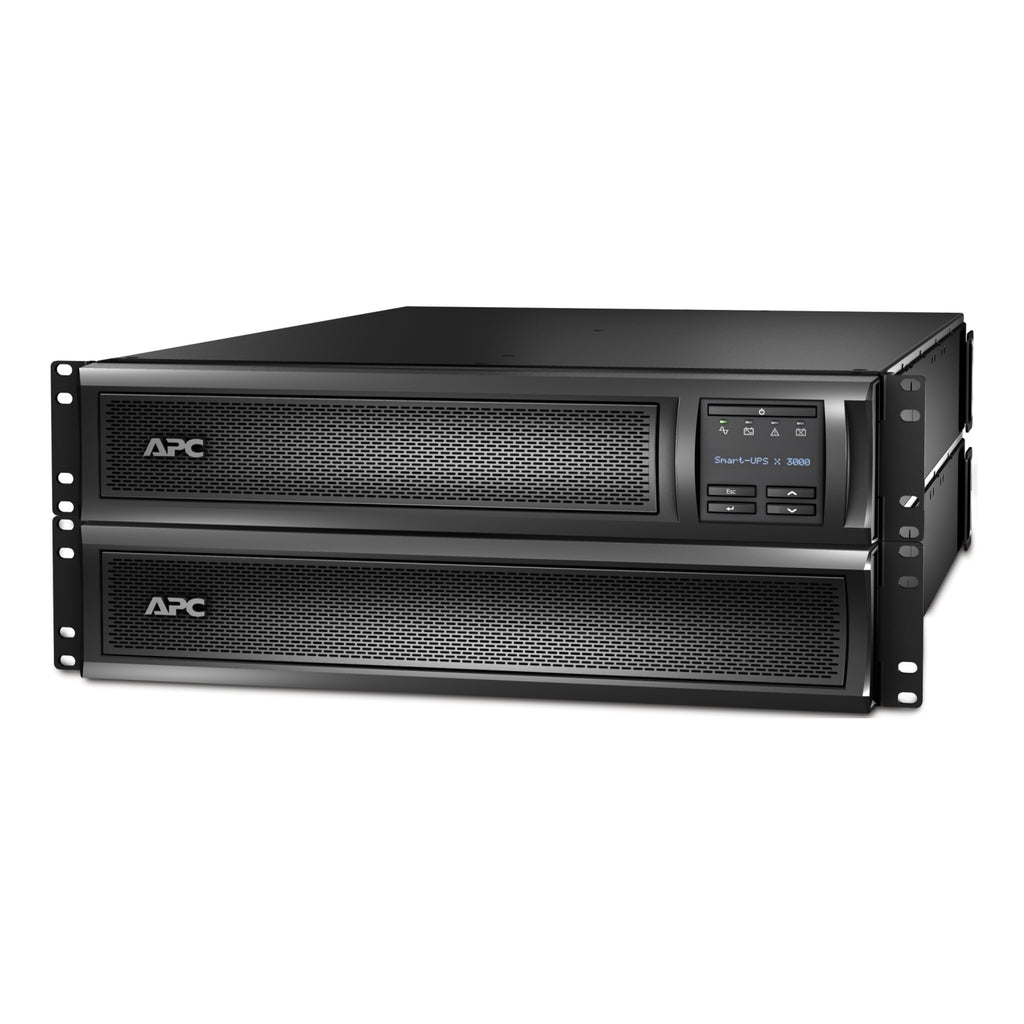

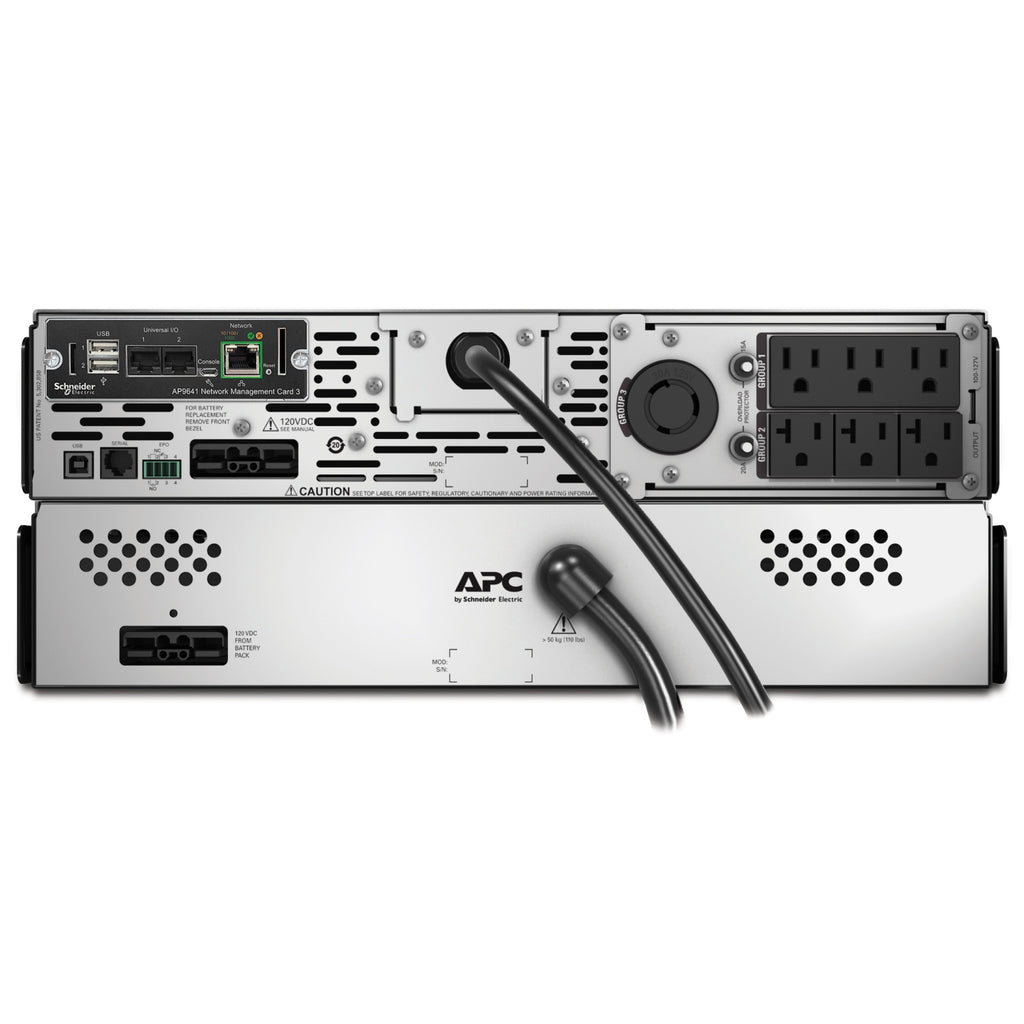

| Extended Runtime Support | Yes (up to 10 battery packs: SMX120RMBP2U) |
| Runtime at Full Load | Approx. 6 min 15 sec (at 2700W) |
| Management Interface | Pre-installed Network Management Card 3 (with EPO & LCD) |
| Mounting Kit | Included (rack rails + tower feet) |
| Temperature Sensor | APC AP9335T included |
| Waveform Type | Pure Sine Wave |
| Communication Ports | USB, Serial, SmartSlot |
| Surge Protection | 540 Joules |
| Certifications | BSMI, CSA, NOM, TÜV, VCCI |
| Warranty | 3 years UPS / 2 years battery |

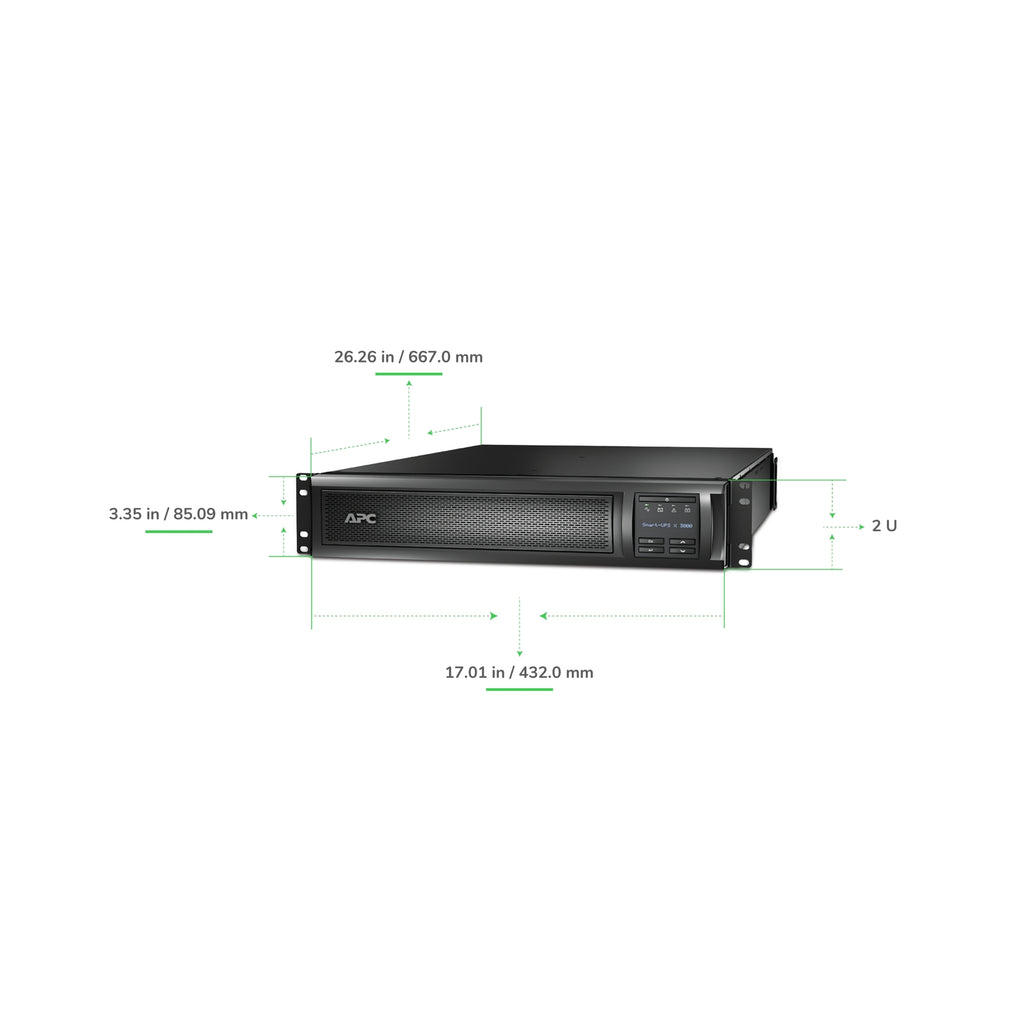

| Dimensions (HxWxD) | 3.35 x 17.01 x 26.26 in |
| Weight | 84.77 lbs (38.45 kg) |
