Description
The APC Smart-UPS SMT2200R2X106 is a 2200VA line-interactive 2U rackmount UPS designed for critical electronics in server rooms, network closets, VoIP systems, and POS environments. It provides 1920W of pure sine wave power with Automatic Voltage Regulation and features a SmartSlot for optional remote management. With NEMA L5-20P input and 8 output receptacles (6x NEMA 5-15R, 2x NEMA 5-20R), it ensures reliable power protection. The LCD interface, USB and serial connectivity, and support for PowerChute Business Edition enable graceful system shutdowns. Compatible with APC RBC43 replacement battery.
| Category | Details |
|---|---|
| Model | SMT2200R2X106 |
| UPS Type | Line Interactive |
| Form Factor | 2U Rackmount |
| Output Power Capacity | 2200VA / 1920W |

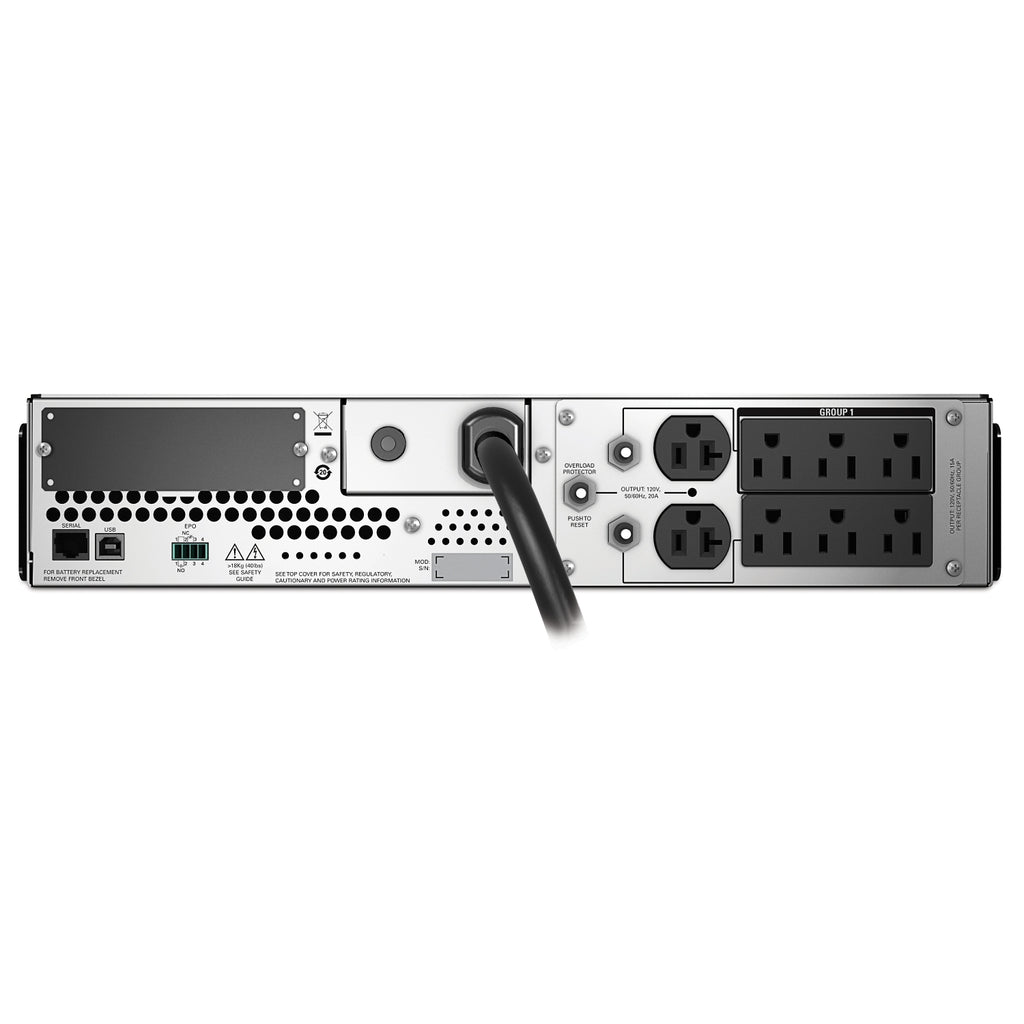

| Output Connections | 6x NEMA 5-15R, 2x NEMA 5-20R |
| Input Connection | NEMA L5-20P |
| Input Voltage Range | 75–154V (adjustable), 82–143V nominal |
| Output Voltage | 120V |
| Waveform | Pure Sine Wave |
| Battery Type | Lead-acid (RBC43 compatible) |
| Replacement Battery | APC RBC43 (48V, 10Ah) |
| Battery Recharge Time | Approx. 3 hours |
| Runtime (Full Load) | ~5 minutes at 1920W |

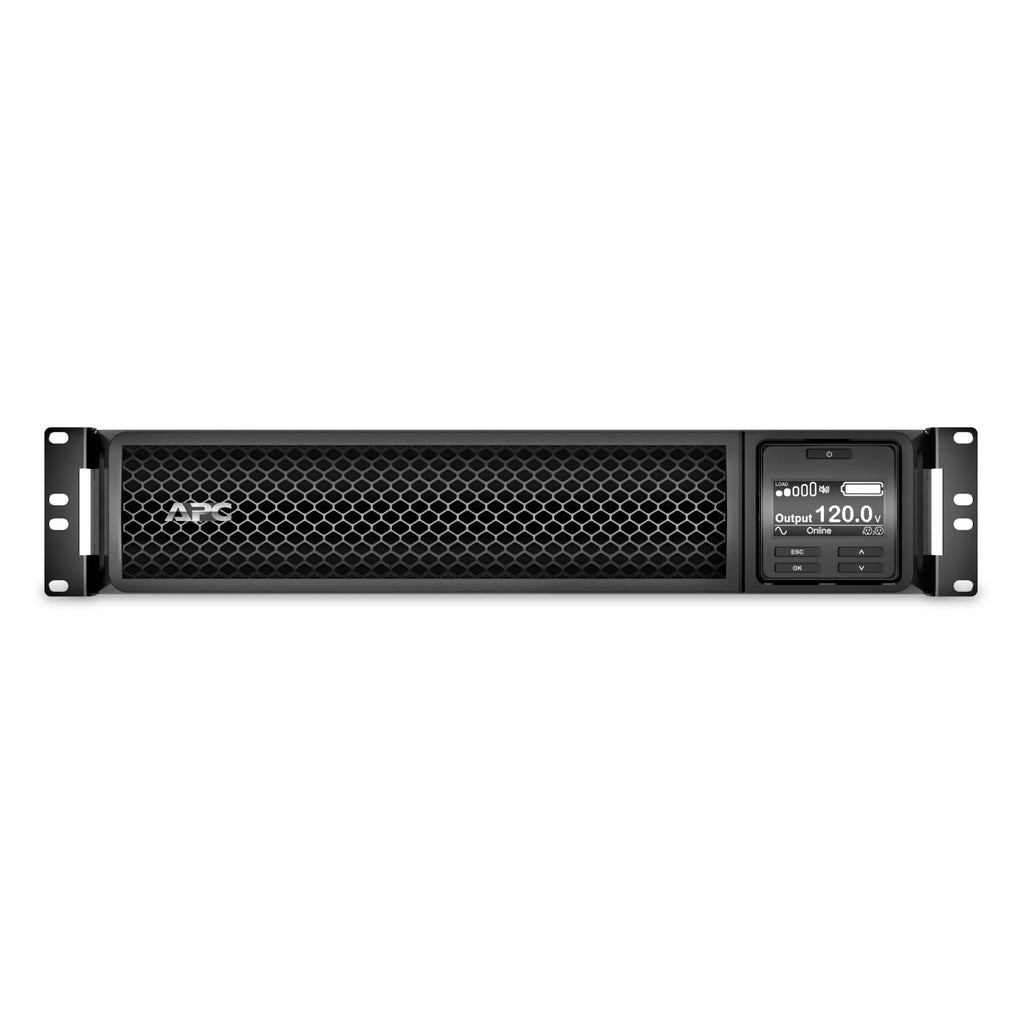

| Display | Multi-function LCD |
| Communications | USB, Serial, SmartSlot |
| Management Software | PowerChute Business Edition |
| Surge Protection Rating | 530 Joules |
| Certifications | CSA, UL Listed |
| Mounting | Includes rack brackets and rails |
| Dimensions (HxWxD) | 3.39 x 18.90 x 26.89 in (8.6 x 48 x 68.3 cm) |
| Weight | 93.28 lb (42.31 kg) |
| Warranty | 3 years UPS, 2 years battery |
| Included Accessories | Software CD, Rack mounting hardware, USB & Serial cables |
