Description

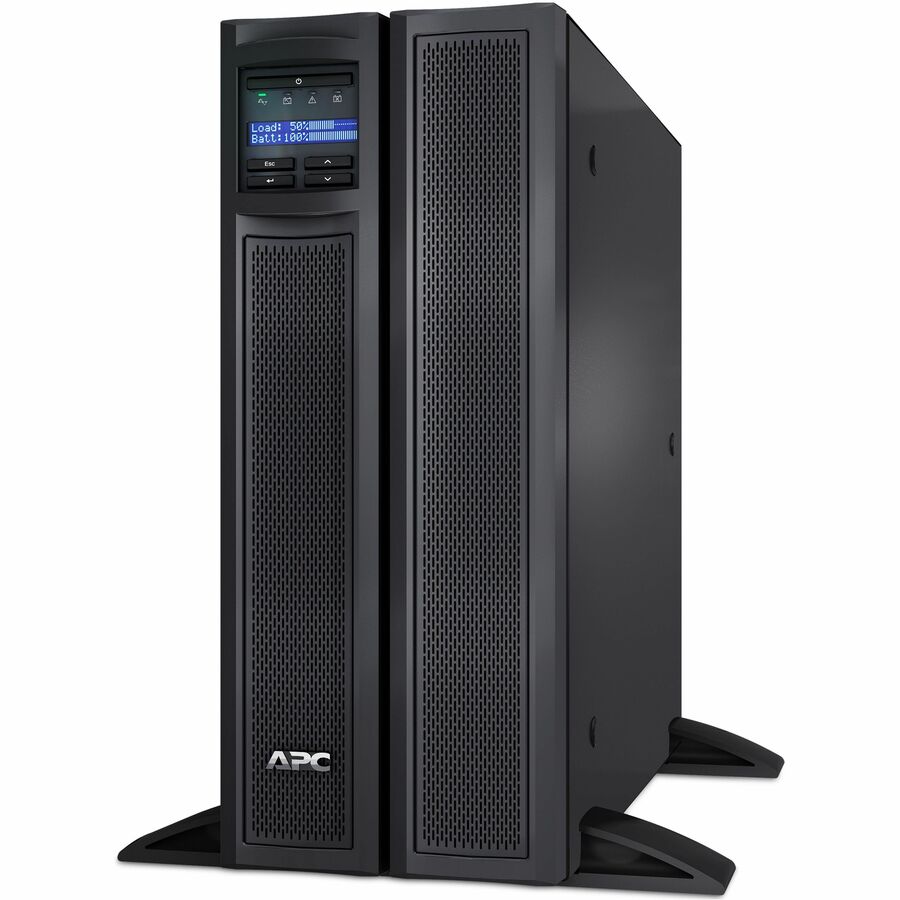

The APC Smart-UPS SMX2000LV is a 1920VA/1800W line interactive UPS designed to protect critical IT equipment and ensure business continuity during outages. This 4U rack/tower convertible UPS delivers pure sine wave output and features a SmartSlot for optional network management. Equipped with 6x NEMA 5-15R, 3x NEMA 5-20R, and 1x NEMA L5-20R outlets, it supports multiple loads with flexible power distribution. It offers extended runtime support with up to 10 SMX120BP external battery packs. The UPS includes advanced features like EPO, PowerChute Serial Shutdown, and intelligent LCD display. Compatible with replacement battery APCRBC143.
| Attribute | Details |
|---|---|
| Model | APC SMX2000LV |
| Topology | Line Interactive |
| Form Factor | 4U Rack/Tower Convertible |
| Output Power Capacity | 1920 VA / 1800 W |
| Input Voltage Range | 100V – 127V |
| Input Connection | NEMA 5-20P |
| Output Connections | 6x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-20R |
| Waveform Type | Pure Sine Wave |
| Communication Interface | SmartSlot, USB, Serial |
| LCD Display | Multi-function LCD status and control console |
| Hot-Swappable Batteries | Yes |
| Battery Type | Lead-Acid |
| Replacement Battery | APCRBC143 |
| Extendable Runtime | Yes, up to 10x SMX120BP battery packs |
| Typical Recharge Time | 3 hours |
| Mounting Accessories Included | Rack-mount brackets, tower stabilizer feet |
| Emergency Power Off (EPO) | Yes |
| Surge Protection | 540 Joules |
| Audible Noise Level | 55 dBA |
| Operating Temp. Range | 0°C to 40°C (32°F to 104°F) |
| Dimensions (H x W x D) | 17.01 x 7.01 x 19.02 in (43.2 x 17.8 x 48.3 cm) |
| Weight | 85.19 lbs (38.64 kg) |
| Warranty | 3 years on UPS, 2 years on battery |
| Included Accessories | Software CD, USB cable, serial cable, installation guide |
| Certifications | BSMI, CSA, NOM, TÜV, VCCI Class A |
| Equipment Protection Policy | $150,000 Lifetime |
