Description

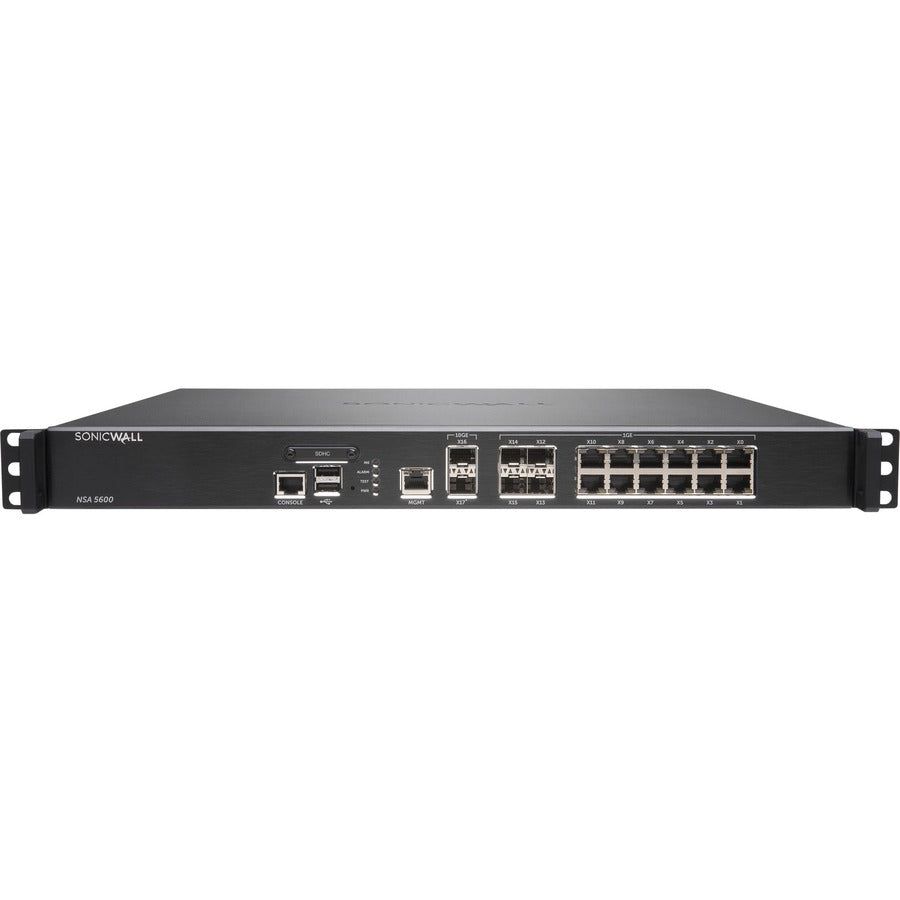

The SonicWall NSa 5600 delivers industry-leading next-generation firewall (NGFW) protection with multi-core hardware architecture and advanced threat prevention. Designed for mid-sized to large enterprises, the NSa 5600 combines high performance, reliability, and comprehensive security services. Featuring SonicWall’s patented Reassembly-Free Deep Packet Inspection (RFDPI) technology, it inspects every byte of every packet without impacting performance.
This model includes 1-Year TotalSecure services, providing a full suite of advanced security tools such as intrusion prevention, anti-malware, application control, URL filtering, and Capture ATP sandboxing to stop zero-day threats. With 10GbE connectivity, high availability features, VoIP support, and SSL/TLS inspection, the NSa 5600 ensures robust security for demanding enterprise networks. Its rack-mountable 1U design makes deployment simple and space-efficient.
| Category | Details |
|---|---|
| SKU | 01-SSC-1095 |
| Product Type | Network Security/Firewall Appliance |
| Bundled Services | 1-Year TotalSecure (restricted license) |
| Form Factor | 1U, rack-mountable |
| Dimensions (W x D x H) | 48.5 cm x 43 cm x 4.5 cm |
| Weight | 6.15 kg (shipping: 9.43 kg) |
| Interfaces | 2 x 10GBase-X SFP+, 4 x 1000Base-X SFP, 12 x 1GbE RJ-45, 2 x USB, 1 x Mgmt RJ-45, 1 x Console RJ-45 |
| Throughput | Firewall: 9 Gbps; DPI: 1.6 Gbps; IPS: 3 Gbps; Application: 3 Gbps; Anti-malware: 1.7 Gbps; SSL: 800 Mbps; VPN: 4.5 Gbps |
| Connections | SPI: 1,500,000; DPI: 1,000,000; VPN Tunnels: 4000; VLANs: 400; SSO Users: 60,000 |
| VPN Support | IPSec, SSL VPN (2 users included), site-to-site up to 4000 tunnels |
| Security Features | Intrusion Prevention, Anti-malware, Anti-spam, URL Filtering, Stateful Packet Inspection (SPI), DoS/DDoS Prevention, Capture ATP sandboxing |
| Encryption Support | DES, 3DES, AES (128/192/256-bit), SHA-1, MD5 |
| Routing Protocols | OSPF, RIP v1/v2, BGP, Static, Policy-based routing |
| VoIP Support | SIP, H.323 (v1–v5) with bandwidth management |
| Management | SNMP 2/3, CLI, HTTP/HTTPS |
| OS | SonicOS 6.5 |
| Power | Internal PSU, 250W provided, 90.9W operational consumption |
| Certifications | FCC, UL, TUV, RoHS, WEEE, VCCI, CE, and more |
| MTBF | 15.4 years |
| Operating Conditions | 0–40 °C; 10–90% humidity (non-condensing) |
