Description

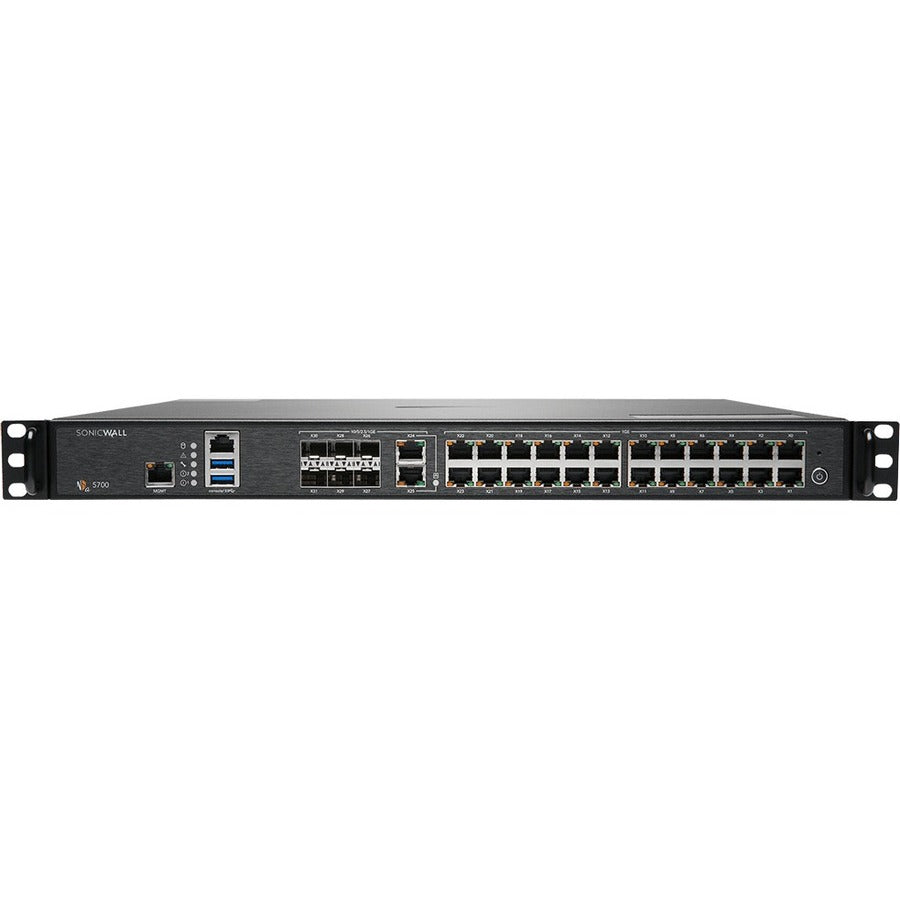

The SonicWall NSa 5700 High Availability Firewall (02-SSC-1715) is a next-generation firewall appliance designed for medium to large enterprises that require uncompromising network protection and reliability. Built on SonicOS 7.0, the NSa 5700 delivers up to 28 Gbps firewall throughput and 15 Gbps threat prevention throughput, ensuring secure, high-performance connectivity.
This High Availability (HA) unit is engineered for redundancy, minimizing downtime by synchronizing with a primary NSa 5700 for seamless failover. With support for multiple 40 GbE and 10 GbE ports, 256 GB built-in storage, and expandable storage up to 1 TB, it provides the performance and scalability needed to protect demanding enterprise environments.
Advanced capabilities such as DPI-SSL inspection (7 Gbps), SD-WAN, VPN support (up to 6,000 site-to-site tunnels), and full integration with SonicWall Capture ATP, RTDMI™, and Content Filtering Service ensure comprehensive protection against zero-day threats, ransomware, and encrypted attacks.
| Specification | Details |
|---|---|
| Product Type | High Availability Firewall |
| SKU / Part Number | 02-SSC-1715 |
| Model | SonicWall NSa 5700 |
| Recommended For | Large Enterprises |
| Firewall Throughput | Up to 28 Gbps |
| Threat Prevention Throughput | Up to 15 Gbps |
| DPI-SSL Throughput | 7 Gbps |
| VPN Throughput | 15 Gbps |
| Concurrent Connections (Max SPI) | 5,000,000 |
| DPI-SSL Connections (Max) | 350,000 |
| Interfaces | 6x 10G/5G/2.5G/1G SFP+, 2x 10G/5G/2.5G/1G Cu, 24x 1G Cu, Mgmt, Console |
| Storage | 128 GB built-in, expandable to 1 TB |
| Form Factor | 1U Rackmount |
| Power Supply | 350W, redundant supported |
| High Availability | Active/Passive with stateful synchronization |
| Certifications | ICSA Enterprise Firewall, ICSA Antivirus, IPv6/USGv6 |
