Description

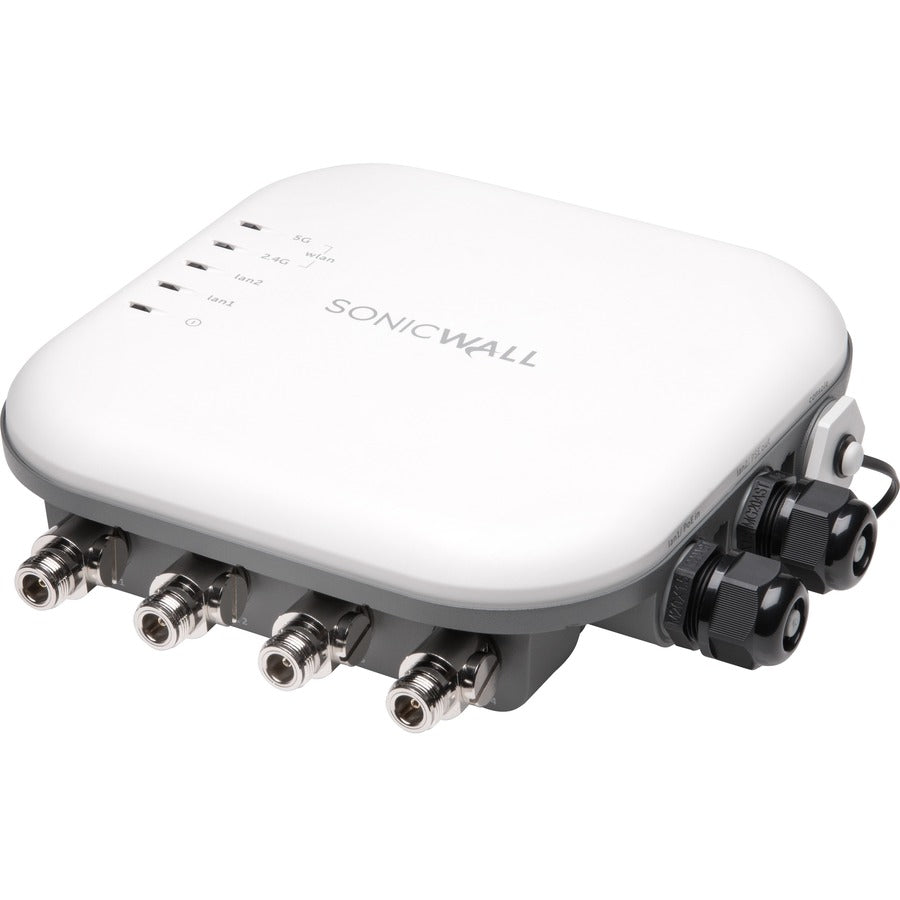

The SonicWall SonicWave 432o is a ruggedized outdoor wireless access point designed to deliver secure, high-speed Wi-Fi across challenging environments. With support for 802.11ac Wave 2 (Wi-Fi 5) and dual-band frequencies (2.4 GHz and 5 GHz), it provides seamless connectivity and superior performance for demanding business networks.
Equipped with 3 years of Advanced Secure Cloud WiFi Management and Support, the SonicWave 432o ensures centralized control, enhanced security, and reduced IT overhead. It supports advanced wireless features including 4x4 MU-MIMO, beamforming, band steering, dedicated scanning radio, and Airtime Fairness for optimal user experience.
Built for reliability, the SonicWave 432o features an IP-rated outdoor design, supports up to 1,024 concurrent clients, and integrates with enterprise authentication methods such as RADIUS and Active Directory. With flexible PoE+ support, multiple mounting options, and strong compliance certifications, this access point is ideal for businesses seeking secure, enterprise-grade outdoor wireless coverage.
| Category | Details |
|---|---|
| Product Type | Wireless Access Point |
| Model | SonicWall SonicWave 432o |
| SKU | 02-SSC-2678 |
| Form Factor | External, Outdoor, Ruggedized |
| Bundled Services | 3 Years Advanced Secure Cloud WiFi Management & Support |
| Wi-Fi Standard | 802.11ac Wave 2 (Wi-Fi 5) |
| Frequency Bands | 2.4 GHz, 5 GHz |
| Max Data Transfer Rate | 1.7334 Gbps |
| Antenna | 8 External Detachable |
| Max Clients Supported | 1,024 |
| Virtual Access Points | 8 |
| Networking Protocols | IEEE 802.11a/b/g/n/ac Wave 2, 802.11i, 802.11r, 802.11v, 802.11w, 802.11k, 802.3at, 802.3bz |
| Authentication | RADIUS, Active Directory |
| Encryption | WEP (64/128/152-bit), WPA, WPA2, AES, TKIP, SSL |
| Special Features | MU-MIMO (4x4), Beamforming, Band Steering, Captive Portal, Airtime Fairness, Dedicated 3rd Scanning Radio, SSO Support, RFDPI, BLE Technology |
| Interfaces | 1 x 2.5 GBase-T (PoE+) RJ-45, 1 x 1000Base-T RJ-45, 1 x Console RJ-45 |
| Power Consumption | 21.2W (PoE+ Supported) |
| Dimensions (W x D x H) | 24.1 cm x 23.6 cm x 6.1 cm |
| Weight | 2.2 kg (Net), 4.7 kg (Shipping) |
| Operating Temperature | -40 °C to 60 °C |
| Humidity | 10 – 95% (Non-Condensing) |
| Included Accessories | Wall/Ceiling Mounting Kit |
| Certifications | FCC Class B, UL, TUV GS, BSMI, cUL, CB, RoHS, ICES, WEEE, ANATEL, TELEC, VCCI, NCC, China RoHS, MSIP, CoC, ACMA RCM |
| Color | White |
| Packaged Quantity | 1 |
