Description

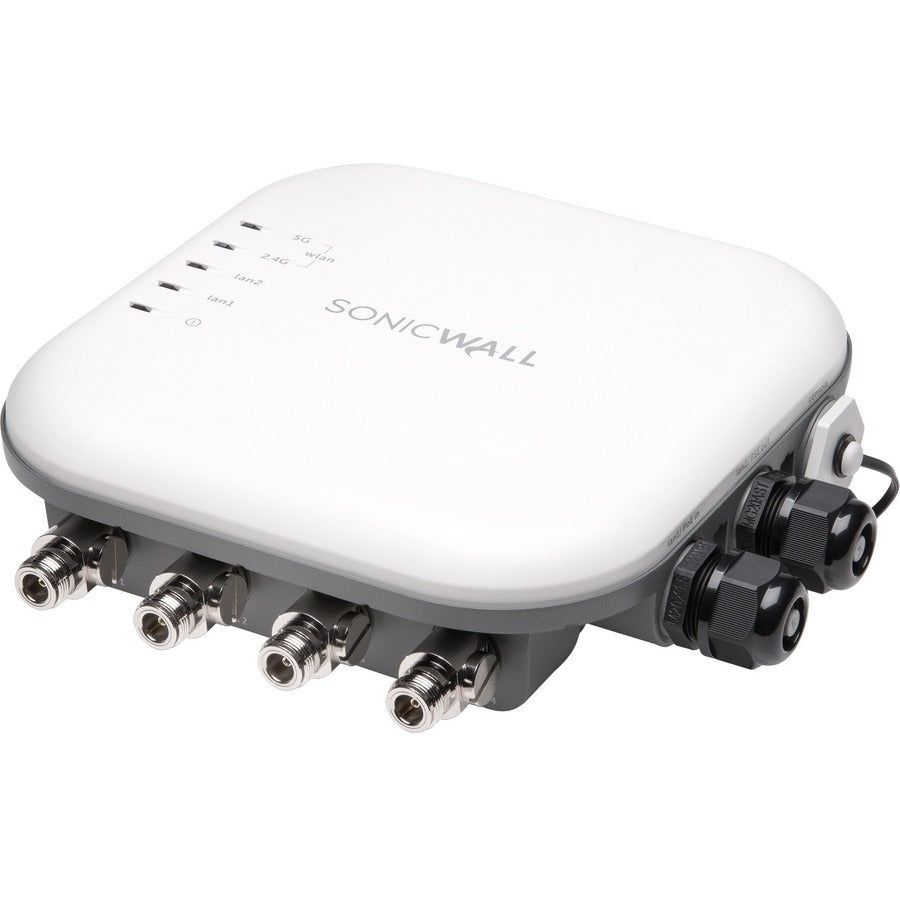

The SonicWall SonicWave 432o is a high-performance outdoor wireless access point designed to deliver reliable and secure connectivity. Powered by 802.11ac Wave 2 (Wi-Fi 5) technology, it supports dual-band 2.4 GHz and 5 GHz frequencies with speeds up to 1.73 Gbps. Featuring 4x4 MU-MIMO, beamforming, and Airtime Fairness, it ensures optimized performance for dense environments with up to 1,024 concurrent clients.
This ruggedized access point is engineered for challenging outdoor conditions with a wide operating temperature range (-40°C to 60°C) and weather-resistant design. With Advanced Secure Cloud WiFi Management and Support (1 Year), IT administrators gain centralized control, monitoring, and security features for streamlined network management.
Equipped with PoE+ support, dual Ethernet ports, detachable antennas, and comprehensive security protocols (WPA/WPA2, AES encryption, RFDPI), the SonicWave 432o ensures seamless deployment and enterprise-grade protection. Ideal for campuses, public venues, and distributed enterprise networks requiring robust, secure wireless access.
| Category | Details |
|---|---|
| Device Type | Wireless Access Point |
| Form Factor | External, Outdoor Ruggedized |
| Networking Standard | IEEE 802.11a/b/g/n/ac Wave 2 (Wi-Fi 5) |
| Data Transfer Rate | Up to 1.7334 Gbps |
| Frequency Bands | 2.4 GHz, 5 GHz |
| MIMO Technology | 4x4 MU-MIMO |
| Max Clients | 1,024 |
| Virtual Access Points | 8 |
| Interfaces | 1 x 2.5GBase-T (PoE+) RJ-45, 1 x 1000Base-T RJ-45, 1 x Console RJ-45 |
| PoE Support | PoE+ (802.3at) |
| Power Consumption | 21.2 W (operational) |
| Antenna | 8 detachable external antennas |
| Features | Beamforming, Airtime Fairness, Captive Portal, Multiple SSID, SSO, BLE Beacons, RFDPI Security |
| Authentication | RADIUS, Active Directory |
| Encryption | AES, WPA/WPA2, WEP (64/128/152-bit), TKIP, SSL |
| Bundled Services | 1-Year Advanced Secure Cloud WiFi Management and Support |
| Compliant Standards | FCC, UL, TUV GS, RoHS, WEEE, VCCI, TELEC, ACMA RCM, MSIP, NCC, ANATEL, CB |
| Included Accessories | Wall/Ceiling Mounting Kit |
| Dimensions (W x D x H) | 24.1 cm x 23.6 cm x 6.1 cm |
| Weight | 2.2 kg (Shipping: 4.7 kg) |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 10% - 95% (non-condensing) |
| Color | White |
