Description

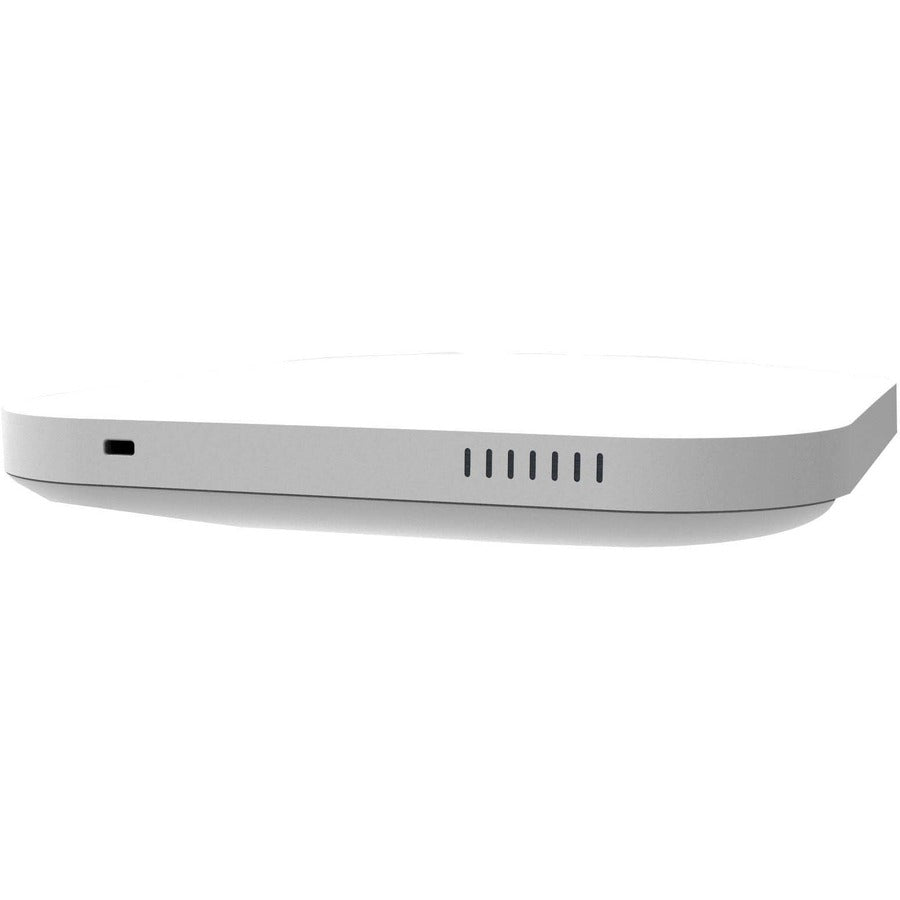

The SonicWall SonicWave 641 Wireless Access Point delivers enterprise-grade Wi-Fi 6 performance and robust security for modern business environments. With multi-gigabit 802.3at PoE+ support and 4x4 MU-MIMO technology, this access point ensures reliable high-speed connectivity across high-density deployments.
Designed with advanced wireless security, the SonicWave 641 features a dedicated scanning radio for rogue AP detection, intrusion prevention, and wireless packet capture, safeguarding networks against evolving threats. Enhanced features such as beamforming, Target Wake Time, and advanced power management improve user experience and device battery life.
Managed through SonicWall’s Wireless Network Manager or next-generation firewalls, the SonicWave 641 enables simplified cloud-based monitoring, zero-touch deployment, and seamless scalability. With support for up to 256 clients per radio, the device combines performance, security, and manageability in one streamlined solution.
| Category | Details |
|---|---|
| Model / SKU | SonicWave 641 / 03-SSC-0460 |
| Wireless Standard | Wi-Fi 6 (802.11ax), backward compatible |
| Radios | 4 (2.4GHz 11ax 4x4, 5GHz 11ax 4x4, dedicated scanning radio, BLE/BT 5.0) |
| Max Data Rate | Up to 4.804 Gbps |
| MIMO Technology | 4x4 MU-MIMO (uplink & downlink) |
| Antennas | 8 internal |
| Wired Interfaces | 1 x 2.5GbE RJ-45 (PoE+), 1 x USB 3.0, 1 x Micro-USB console |
| Power Requirement | 802.3at PoE+ |
| Max Power Consumption | 23W |
| Security Features | Rogue AP detection, WPA2/WPA3, AES, IPSec, wireless IDS/IPS, RF monitoring, packet capture |
| Authentication | RADIUS, Active Directory, LDAP, SSO, local user, OTP |
| Captive Portal | Click-through, external server, social login (Facebook, Google, Twitter, LinkedIn) |
| Management | SonicWall Wireless Network Manager, SonicWall Firewalls, SonicExpress App |
| Zero-Touch Deployment | Supported (via SonicExpress mobile app) |
| Virtual Access Points | Up to 8 per device |
| Connected Clients | Up to 256 per radio (recommended 150) |
| Dimensions (cm) | 20 x 20 x 3.7 |
| Weight | 0.85 kg (unit), 1.2 kg (shipping) |
| Mounting | Ceiling mounting kit included |
| Operating Temp | 0°C to 40°C |
| Compliance & Safety | FCC, CE, RCM, VCCI, TELEC, BSMI, NCC, MSIP, ANATEL, RoHS, UL, EN 60950-1/62368-1 |
| Warranty/Support | 3 Years Advanced Secure Wireless Network Management & Support (INTL) |
