Description

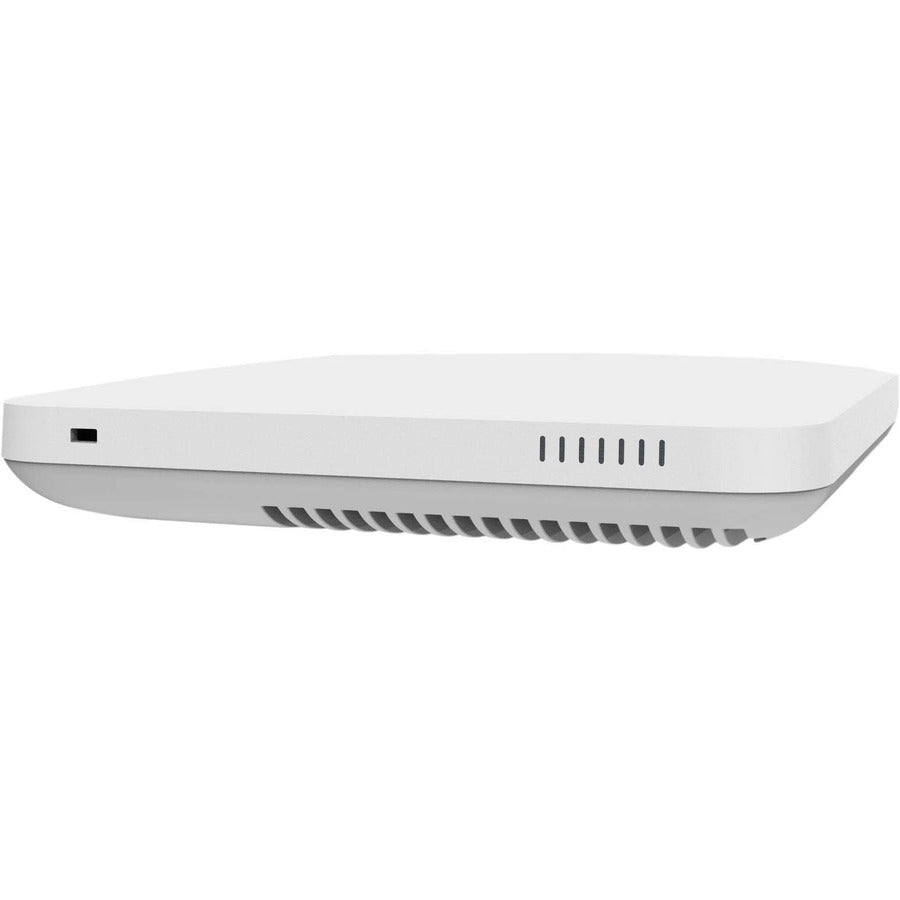

The SonicWall SonicWave 681 is a high-performance Wi-Fi 6 wireless access point built for modern business environments requiring reliable, secure, and scalable connectivity. Supporting up to 256 clients, it delivers fast speeds of up to 4.804 Gbps and uses advanced encryption technologies including AES, SSL, WPA2, and WPA3 to safeguard networks. This model comes bundled with 3 years of Advanced Secure Wireless Network Management and Support for centralized cloud-based administration, Zero-Touch Deployment, and Integrated Switch Management. The included 802.3bt Gigabit PoE injector simplifies installation. Its ruggedized, plenum-rated design ensures safe and durable use in professional environments, making it ideal for high-density deployments.
| Category | Details |
|---|---|
| Device Type | Wireless Access Point |
| Model / SKU | SonicWall SonicWave 681 / 03-SSC-0464 |
| Bundled Services | 3 Years Advanced Secure Wireless Network Management and Support |
| Included Accessory | SonicWall 802.3bt Gigabit PoE Injector + Ceiling Mount Kit |
| Design | Indoor, Ruggedized, Plenum-rated |
| Dimensions (W x D x H) | 8.4 x 8.4 x 1.5 in |
| Weight | 2.43 lbs (unit) / 3.28 lbs (shipping) |
| Form Factor | Ceiling-mountable |
| Connectivity | Wireless, 1 x 5GBase-T (PoE, RJ-45), 1 x console (micro-USB), 1 x USB 3.0 |
| Data Transfer Rate | Up to 4.804 Gbps |
| Supported Protocols | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), Bluetooth 5.0 LE, IPSec |
| Antennas | 12 internal |
| Capacity | Up to 256 clients (recommended 150), 8 Virtual Access Points |
| Features | Zero-Touch Deployment, 4x4 MU-MIMO, Beamforming, Band Steering, Airtime Fairness, Captive Portal, Rogue AP Detection, WIDS/WIPS, Wireless Mesh |
| Security | AES, SSL, WPA2, WPA3; RADIUS & Active Directory authentication |
| Indicators | Power, LAN, 2.4GHz, 5GHz, Secure, BLE, WWAN |
| Operating Temp | 32 °F to 104 °F |
| Operating Humidity | 10 – 95% (non-condensing) |
| Compliant Standards | IEEE 802.11i/e/k/r/v/w, IEEE 802.3bz/bt, Wi-Fi CERTIFIED, UL, FCC, CE, RoHS |
| Power | PoE++ supported, PoE injector included |
| Warranty | 1-Year Limited Manufacturer Warranty |
