Description

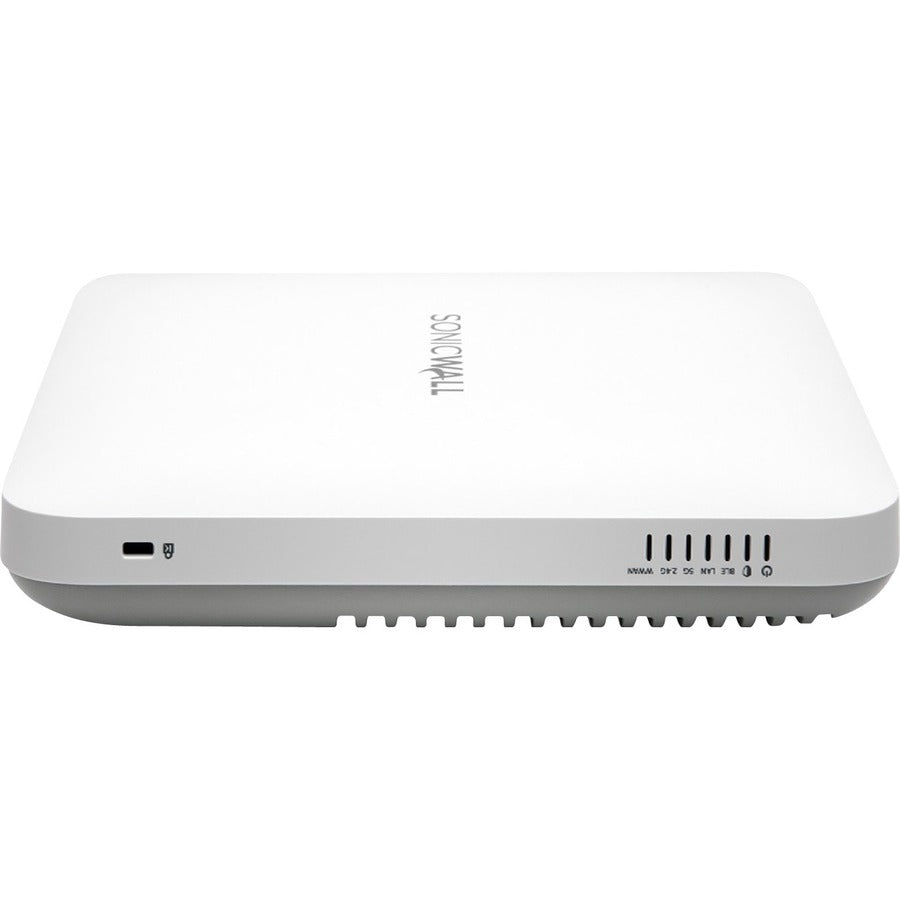

The SonicWall SonicWave 681 wireless access point delivers next-generation connectivity with advanced Wi-Fi 6 technology, ensuring fast, reliable, and secure wireless performance for modern business environments. Designed to handle up to 256 simultaneous clients, this cloud-managed access point supports high-density deployments with features like 4x4 MU-MIMO, beamforming, band steering, and Airtime Fairness.
Security is built-in with AES, SSL, WPA2, and WPA3 encryption, along with RADIUS and Active Directory authentication support. Enhanced network protection is provided by Wireless Intrusion Detection and Prevention Systems (WIDS/WIPS), rogue AP detection, and Zero-Touch Deployment for simplified setup.
The SonicWave 681 includes a SonicWall 802.3bt Gigabit PoE injector, making it deployment-ready out of the box. Its ruggedized, plenum-rated design ensures reliability for indoor installations. With integrated switch management, cloud ACL, and advanced visualization tools such as WiFi Planner and floor plan view, this access point provides both security and convenience for enterprise-grade wireless networking.
| Category | Details |
|---|---|
| Device Type | Wireless access point |
| Bundled Services | 1 Year Secure Wireless Network Management and Support |
| Included Accessory | SonicWall 802.3bt Gigabit PoE Injector |
| Form Factor | Ceiling mountable, ruggedized indoor |
| Dimensions (H x W x D) | 1.5 x 8.4 x 8.4 in |
| Weight | 2.43 lbs |
| Connectivity | Wireless (Wi-Fi 6, Bluetooth 5.0 LE), 1 x 5GBase-T (PoE) RJ-45, 1 x micro-USB console, 1 x USB 3.0 |
| Max Data Transfer Rate | 4.804 Gbps |
| Wireless Protocols | 802.11a/b/g/n/ac/ax (Wi-Fi 6), Bluetooth 5.0 LE |
| Antenna | Internal, 12 antennas |
| Client Capacity | Up to 256 (Recommended: 150) |
| Virtual Access Points | Up to 8 |
| Encryption | AES, SSL, WPA2, WPA3 |
| Authentication | RADIUS, Active Directory |
| Cloud-Managed | Yes |
| Key Features | Zero-Touch Deployment, Integrated Switch Management, WIDS/WIPS, Airtime Fairness, Band Steering, Captive Portal, Mesh Support, DFS, beamforming, Kensington lock slot |
| Operating Temperature | 32 °F to 104 °F |
| Humidity (Operating) | 10–95% (non-condensing) |
| Compliance Standards | UL, FCC, CE, VCCI, EN 62368-1, RoHS, WEEE, and more |
| Warranty | Limited 1-year warranty |
