Description

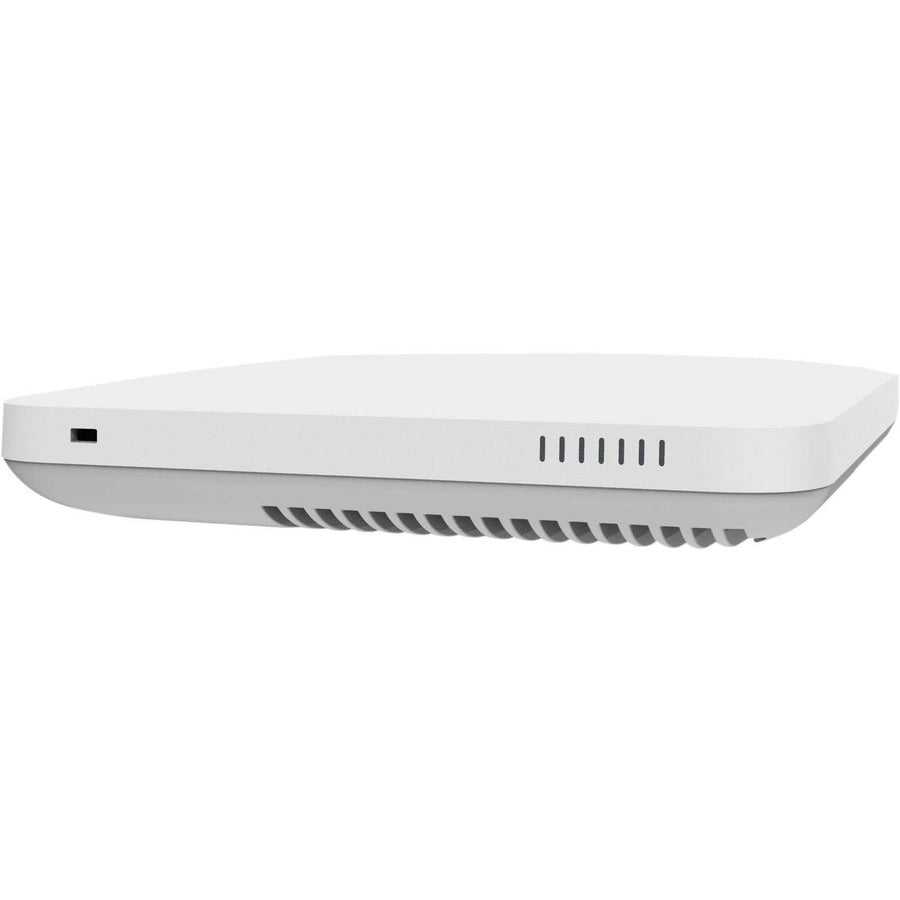

The SonicWall SonicWave 681 wireless access point delivers high-performance Wi-Fi 6 connectivity for modern business environments and high-density deployments. Supporting up to 256 clients, it ensures seamless connectivity with 8x8 MU-MIMO, beamforming, and advanced throughput up to 4.804 Gbps. Built with enterprise-grade security, it features WPA3, AES, SSL encryption, RADIUS/Active Directory authentication, and a dedicated scanning radio for threat detection.
This access point is cloud-managed, providing Zero-Touch Deployment, Integrated Switch Management, and centralized monitoring through SonicWall Wireless Network Manager. Its ruggedized, plenum-rated design ensures safety and durability in demanding environments. With included 3 years of Secure Wireless Network Management and Support, organizations benefit from simplified deployment, continuous updates, and proactive security.
| Category | Details |
|---|---|
| Device Type | Wireless Access Point |
| Bundled Services | 3 Years Secure Wireless Network Management and Support |
| Design | Ruggedized, Indoor, Plenum-rated |
| Form Factor | Ceiling-mountable |
| Dimensions | 8.4 x 8.4 x 1.5 in |
| Weight | 2.43 lbs |
| Networking Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), Bluetooth 5.0 LE |
| Max Data Rate | 4.804 Gbps |
| Client Capacity | Up to 256 (Recommended 150) |
| Virtual APs | Up to 8 |
| Frequency Bands | 2.4 GHz, 5 GHz |
| Antenna | 12 Internal Antennas, 8x8 MU-MIMO |
| Security | AES, SSL, WPA2, WPA3; WIDS/WIPS; Rogue AP Detection |
| Authentication | RADIUS, Active Directory, SSO |
| Cloud-Managed | Yes (Zero-Touch Deployment, Integrated Switch Management) |
| Advanced Features | Beamforming, Band Steering, Airtime Fairness, Captive Portal, Wireless Mesh, OTP, Target Wake Time (TWT), WAN Failover & Load Balancing |
| Interfaces | 1 x 5GBase-T (PoE++) RJ-45, 1 x Console (micro-USB), 1 x USB 3.0 |
| Power | PoE++ Supported |
| IoT Compatible | Yes |
| Environmental | Operating Temp: 32–104 °F; Humidity: 10–95% (non-condensing) |
| Compliance | UL, FCC, CE, RoHS, WEEE, IEC 60950-1/62368-1, Wi-Fi CERTIFIED, others |
| Warranty | 1-Year Limited Manufacturer Warranty |
| Included Accessories | Ceiling Mounting Kit |
