Description

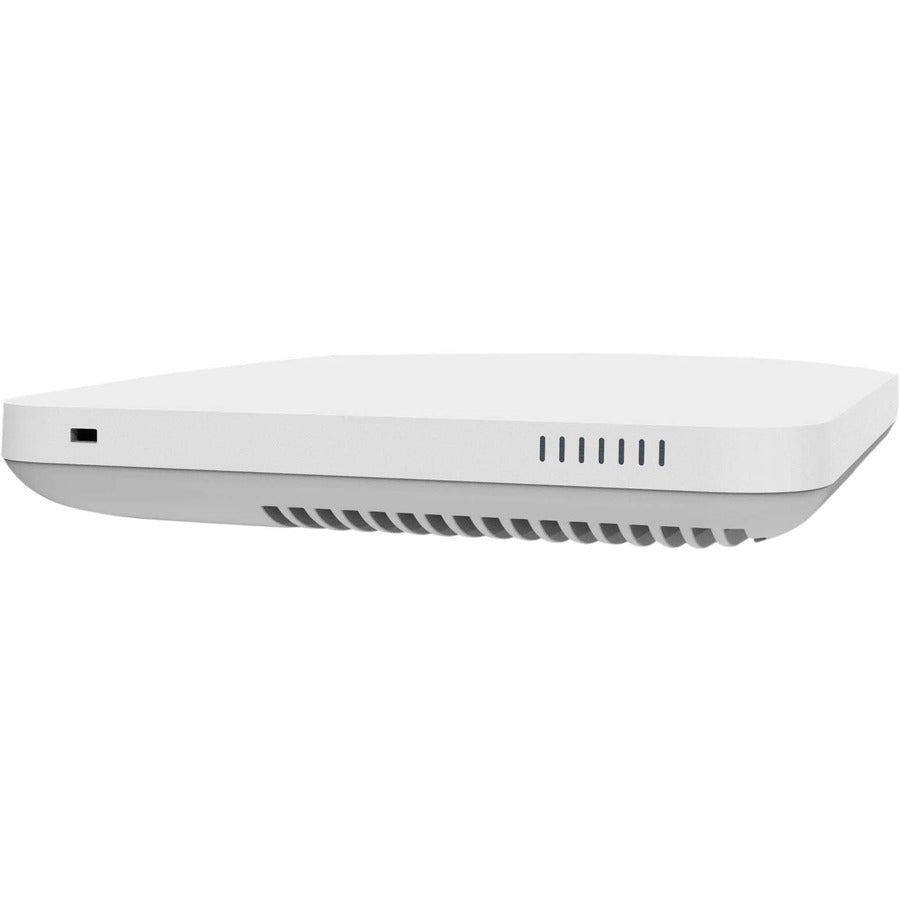

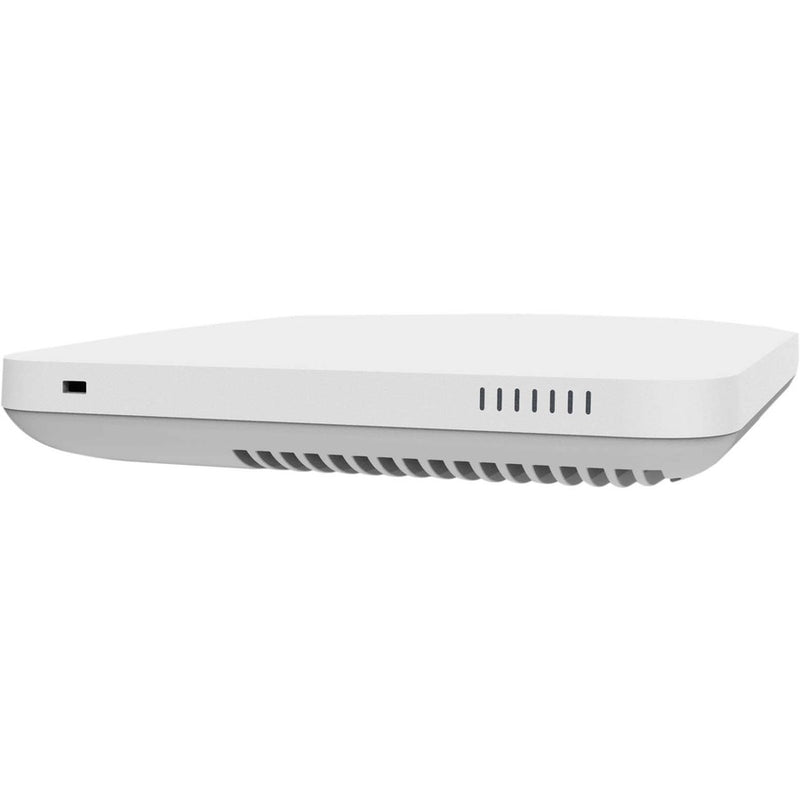

The SonicWall SonicWave 681 is a high-performance Wi-Fi 6 wireless access point designed for modern businesses and professional environments. Supporting up to 256 clients, it delivers fast, reliable, and efficient connectivity with advanced features like MU-MIMO, beamforming, and Airtime Fairness to optimize performance in high-density deployments.
Security is built-in, with support for AES, SSL, WPA2, and WPA3 encryption, along with authentication through RADIUS and Active Directory. Cloud management enables simple setup, monitoring, and optimization, while features like Zero-Touch Deployment, Wireless Intrusion Prevention (WIPS), and rogue AP detection provide robust protection.
The ruggedized, plenum-rated design ensures durability and compliance with safety standards, making the SonicWave 681 ideal for offices, campuses, and enterprise applications. Bundled with 1 year of Secure Wireless Network Management and Support, it provides comprehensive coverage for both performance and security needs.
| Category | Specification |
|---|---|
| Device Type | Wireless Access Point |
| Bundled Services | 1 Year Secure Wireless Network Management and Support |
| Design | Indoor, Ruggedized, Plenum-rated |
| Dimensions (W x D x H) | 8.4 in x 8.4 in x 1.5 in |
| Weight | 2.43 lbs |
| Form Factor | Ceiling-mountable |
| Connectivity | Wireless, Cloud-Managed |
| Max Data Rate | 4.804 Gbps |
| Protocols Supported | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), Bluetooth 5.0 LE |
| Spread Spectrum | OFDM, DSSS, OFDMA |
| Encryption | AES, SSL, WPA2, WPA3 |
| Authentication | RADIUS, Active Directory |
| Frequency Bands | 2.4 GHz, 5 GHz |
| Capacity | Up to 8 Virtual APs; 256 Clients (Recommended 150) |
| Advanced Features | MU-MIMO (4x4), Beamforming, Band Steering, WIDS/WIPS, Airtime Fairness, Captive Portal, WAN Failover, Zero-Touch Deployment, Rogue AP Detection |
| Antennas | 12 Internal |
| Interfaces | 1 x 5GBase-T (PoE++) RJ-45, 1 x Console Micro-USB, 1 x USB 3.0 |
| Power | PoE++ Supported |
| IoT Support | Yes (Bluetooth LE) |
| Included Accessories | Ceiling Mounting Kit |
| Compliance Standards | UL, FCC, EN, TUV, VCCI, RoHS, RED, WEEE, and more |
| Operating Temperature | 32 °F – 104 °F |
| Operating Humidity | 10 – 95% (non-condensing) |
| Warranty | Limited Warranty – 1 Year |
