Description

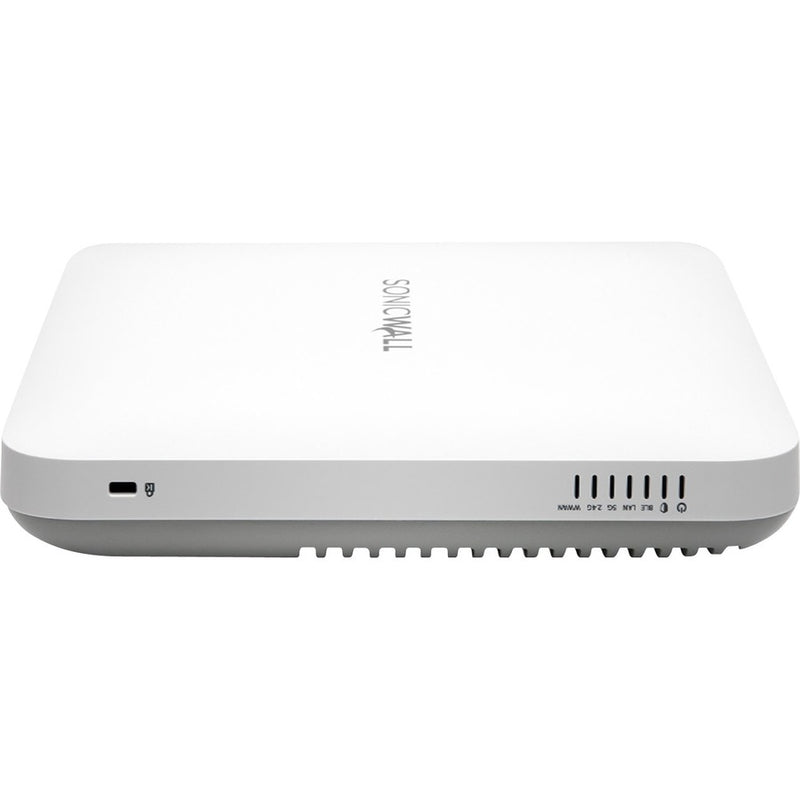

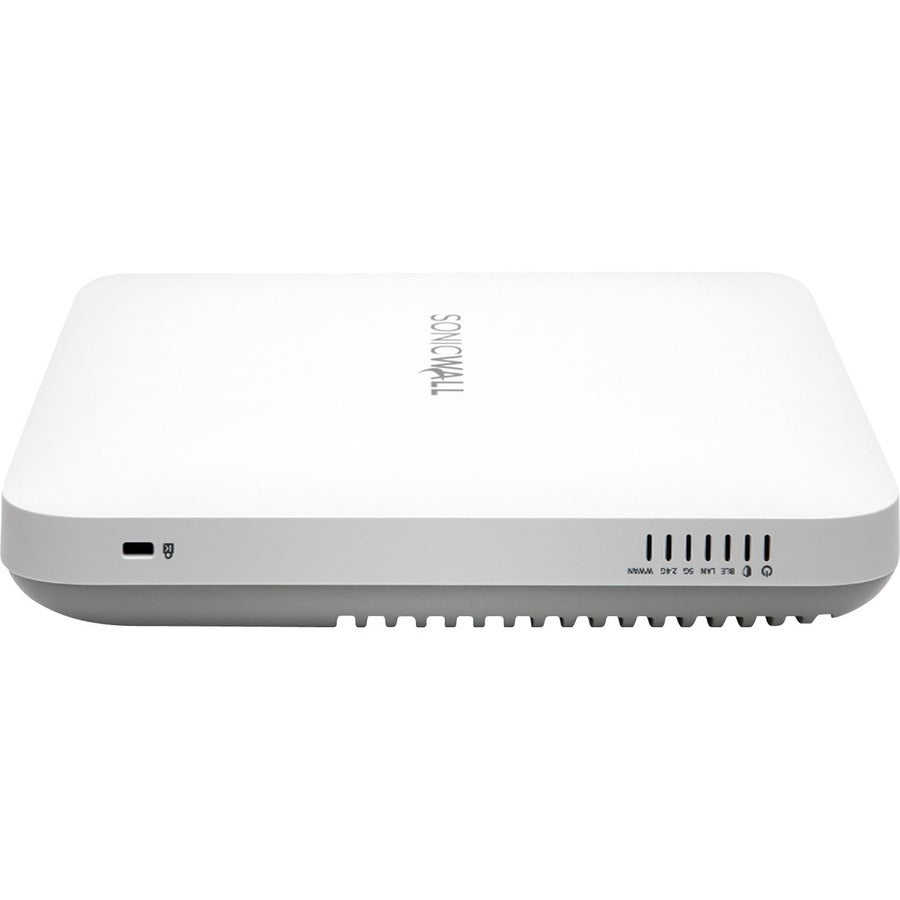

The SonicWall SonicWave 681 (03-SSC-0325) is a high-performance wireless access point designed for ceiling deployment, delivering next-generation Wi-Fi 6 (802.11ax) technology with multi-gigabit performance and robust security. Supporting MU-MIMO 8x8, it can handle up to 256 concurrent clients per radio with a recommended 150 clients for optimal performance. Featuring dual-band operation (2.4 GHz and 5 GHz), BLE/BT 5.0, and dedicated scanning radios, the SonicWave 681 ensures superior coverage, reduced latency, and reliable connectivity in high-density environments.
This model includes Advanced Secure Wireless Network Management and 1-year support, allowing centralized management via SonicWall Wireless Network Manager (WNM) and SonicWall firewalls running SonicOS 7.1.1 and above. With advanced features such as WIDS/WIPS, rogue AP detection, RF spectrum analysis, and Zero-Touch Deployment, the SonicWave 681 is an ideal solution for enterprises seeking secure, cloud-managed Wi-Fi without the need for external controllers.
| Specification | Details |
|---|---|
| Product Type | Wireless Access Point |
| Model | SonicWall SonicWave 681 |
| SKU / Manufacturer Part # | 03-SSC-0325 |
| Deployment | Ceiling mount |
| Radios | 2.4 GHz, 5 GHz, Scanning Radio, BLE/BT 5.0 |
| MIMO | MU-MIMO 8x8 |
| Max / Recommended Clients per Radio | 256 / 150 |
| IEEE Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6, Wave 2) |
| Wired Network Port | 1 x 100/1000/5GbE auto-sensing RJ-45 |
| USB / Console Ports | 1 x USB 3.0, 1 x Micro-USB console |
| Power Options | 12V DC input; 802.3bt Type 3 PoE (Not included – No PoE with this SKU) |
| Antennas | 12 internal antennas |
| Security Features | WPA3, WPA2, WIDS/WIPS, Rogue AP detection, Packet capture |
| Management | SonicWall Wireless Network Manager (WNM), Firewall management (SonicOS 7.1.1+) |
| Max Power Consumption | 34W |
| Dimensions | 21.3 x 21.3 x 3.9 cm |
| Weight | 1.10 kg |
| Included Accessories | Ceiling Mounting Kit |
| Warranty / Support | 1-Year Advanced Secure Wireless Network Management and Support |
