Description

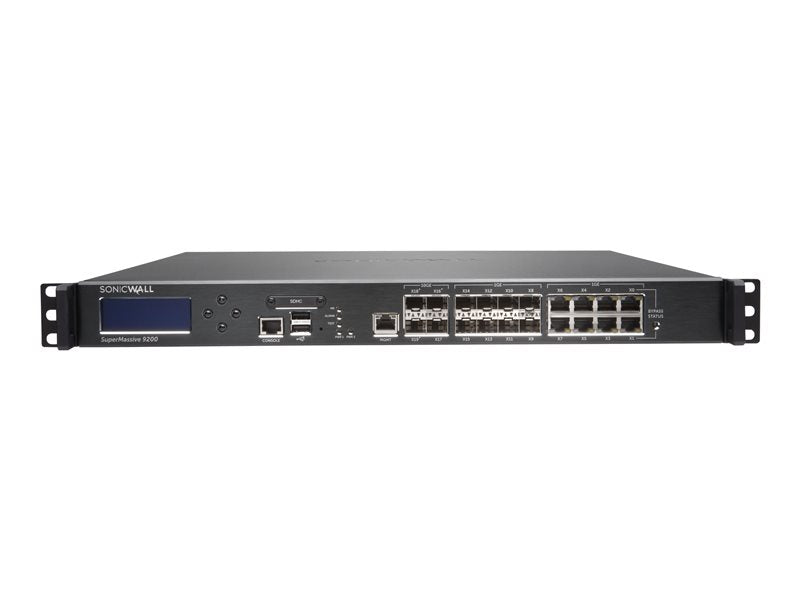

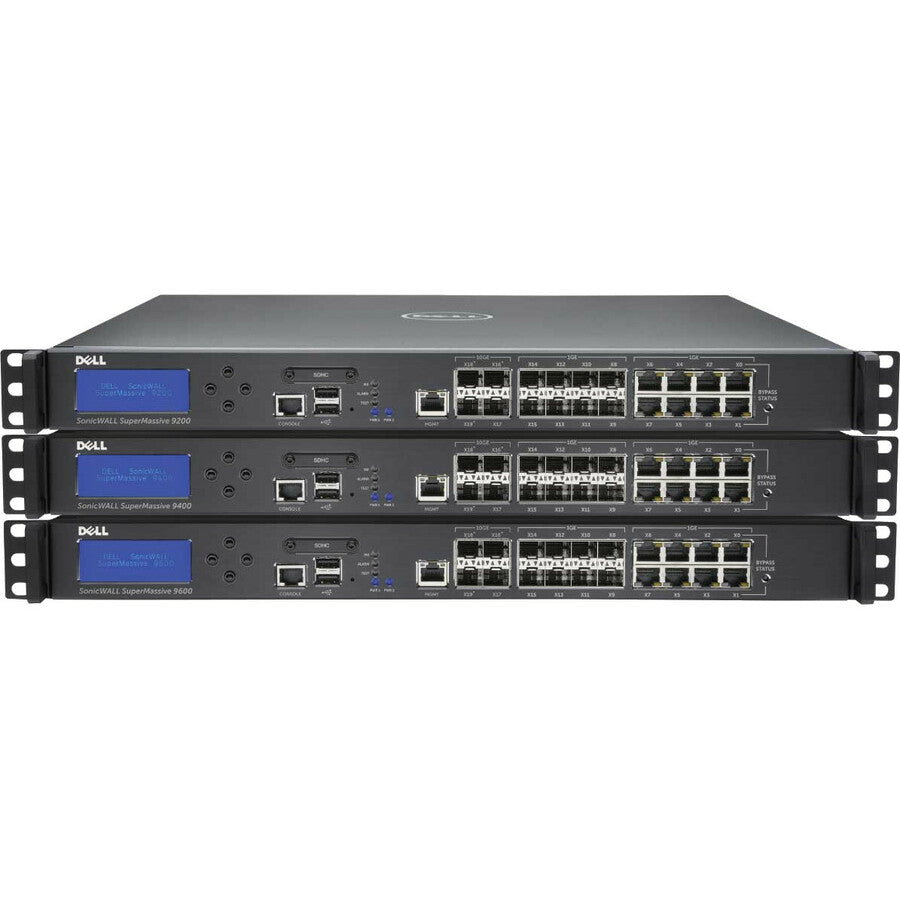

The SonicWall SuperMassive 9200 TotalSecure is a high-performance next-generation firewall (NGFW) built to secure demanding enterprise environments. With 3 years of SonicWall Comprehensive Gateway Security Suite (CGSS) included, it provides layered protection against advanced threats including malware, ransomware, intrusions, and zero-day exploits. Its multi-core architecture delivers up to 15 Gbps of firewall throughput with minimal latency, ensuring deep packet inspection at enterprise scale. Designed in a compact 1U rack-mount form factor, the SuperMassive 9200 combines advanced security, scalability, and energy efficiency to safeguard critical networks without compromising speed or productivity.
| Category | Specification |
|---|---|
| Device Type | Security appliance |
| Bundled Services | 3-Year SonicWall Comprehensive Gateway Security Suite (CGSS) |
| Form Factor | Rack-mountable, 1U |
| Dimensions (W x D x H) | 17 in x 19.1 in x 1.8 in |
| Weight | 18.08 lbs |
| Processor / Memory | 8 GB RAM |
| Connectivity | Wired |
| Data Link Protocols | Gigabit Ethernet, 10 Gigabit Ethernet |
| Supported Protocols | TCP/IP, PPTP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Routing Protocols | OSPF, RIP-1, RIP-2, BGP, static IP, PBR |
| Remote Management | SNMP v2/v3, HTTP, HTTPS, CLI |
| Firewall Throughput | 15 Gbps |
| Application Throughput | 5 Gbps |
| IPS Throughput | 5 Gbps |
| Anti-Malware Throughput | 3.5 Gbps |
| VPN Throughput | 5 Gbps |
| Forwarding (IMIX) | 4.4 Gbps |
| Max Application Cores | 24 |
| VPN Tunnels (Site-to-Site) | 6000 |
| VPN Client Licenses | 2000 |
| SSL VPN Tunnels | 2 |
| Virtual Interfaces (VLANs) | 512 |
| Max Connections | 1,250,000 |
| DPI Connections | 1,000,000 |
| Interfaces | 1 x Mgmt RJ-45, 2 x USB Type-A, 8 x 1GbE RJ-45, 8 x 1GbE SFP, 4 x 10GbE SFP+ |
| Expansion Slot | 1 x expansion slot |
| Built-in Devices | Status LCD |
| Power Supply | Dual hot-plug internal PSUs |
| Power Consumption | 300W |
| OS Provided | SonicOS |
| Compliance | FCC Class A, UL, TUV GS, VCCI, RoHS, WEEE, others |
| Environmental | Operating temp: 32–104 °F; Humidity: 10–90% non-condensing |
