Description

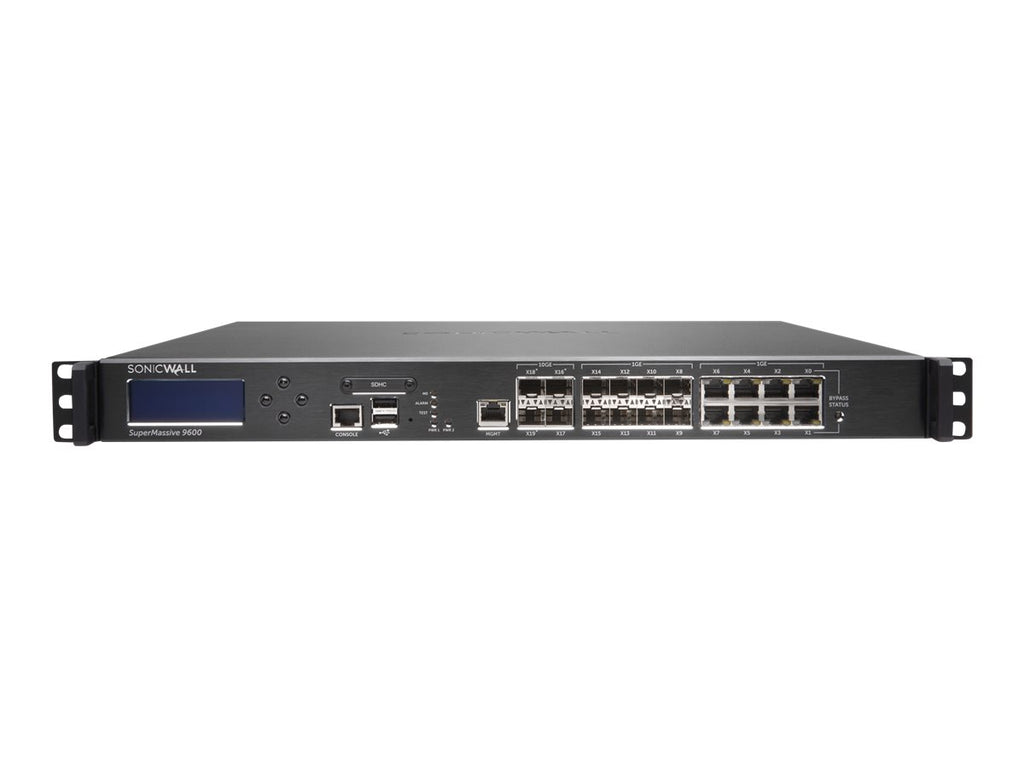

The SonicWall SuperMassive 9600 High Availability Firewall ensures continuous enterprise-grade security by preventing downtime through synchronized firewall redundancy. Built for large enterprises, government, healthcare, education, retail, and service providers, it delivers multi-gigabit protection with near-zero latency. Powered by SonicOS and the patented Reassembly-Free Deep Packet Inspection® (RFDPI) engine, it offers intrusion prevention, malware protection, application control, and TLS/SSL decryption at scale. With rack-mountable 1U design, hot-plug power redundancy, and 10GbE connectivity, the SuperMassive 9600 High Availability option ensures your business remains secure, available, and resilient.
| Category | Specification |
|---|---|
| Product Type | Security Appliance (High Availability) |
| SKU | 01-SSC-1072 |
| License Use | Restricted |
| Form Factor | Rack-mountable, 1U |
| Dimensions | 48.5 cm (D) × 43.3 cm (W) × 4.5 cm (H) |
| Weight | 8.2 kg |
| Interfaces | 1 × 1000Base-T (Mgmt), 8 × 1000Base-T RJ-45, 8 × 1000Base-X SFP, 4 × 10GBase-X SFP+, 2 × USB, 1 × Console RJ-45 |
| Expansion | 1 × Expansion Slot |
| Connectivity | Wired; 10GbE and GbE support |
| VPN Capacity | 10,000 site-to-site tunnels; 2,000 client licenses |
| Performance | Firewall throughput: 20 Gbps; IPS: 11.5 Gbps; VPN: 11.5 Gbps; Anti-malware: 5 Gbps; DPI SSL: 12,000 connections |
| DPI/Connections | 2,000,000 DPI connections; 3,000,000 SPI connections |
| Users Supported | Up to 100,000 SSO users |
| RAM | 32 GB |
| OS | SonicOS |
| Power | Dual hot-plug power supplies; 300 W operational |
| Compliance | FCC, UL, TUV GS, RoHS, WEEE, REACH, KCC, VCCI, MSIP, ANATEL |
| MTBF | 186,451 hours |
| Operating Temp | 15°C – 40°C |
| Humidity | 10–90% (non-condensing) |
| Color | Black |
