Description

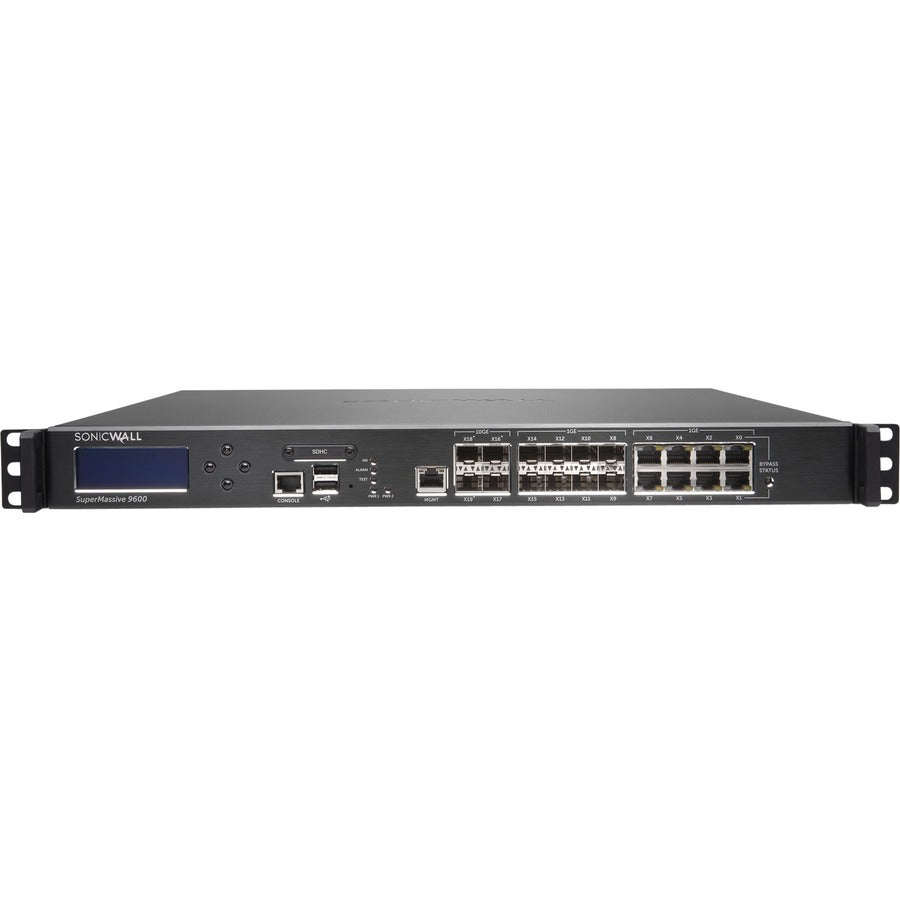

The SonicWall SuperMassive 9600 is a high-performance next-generation firewall (NGFW) designed to deliver deep security for enterprise, government, healthcare, retail, and service provider environments. Powered by SonicOS and Reassembly-Free Deep Packet Inspection® (RFDPI) technology, it provides application control, intrusion prevention, anti-malware, and TLS/SSL inspection at multi-gigabit speeds with minimal latency.
This 1U rack-mountable appliance comes bundled with a 1-year TotalSecure subscription for comprehensive security services. With up to 20 Gbps firewall throughput, 11.5 Gbps IPS throughput, 5 Gbps anti-malware throughput, and advanced traffic analytics, it ensures maximum performance and protection. The SuperMassive 9600 supports enterprise-class scalability with flexible interfaces, high availability, and built-in redundancy, making it ideal for mission-critical networks.
| Category | Specification |
|---|---|
| Product Type | Security appliance |
| Manufacturer | SonicWall |
| Model | SuperMassive 9600 |
| Bundled Services | 1 Year TotalSecure (restricted license) |
| Form Factor | 1U, rack-mountable |
| Dimensions (W x D x H) | 43.3 x 48.5 x 4.5 cm |
| Weight | 8.2 kg (shipping: 13.3 kg) |
| Connectivity | Wired |
| Interfaces | 4 x 10GBase-X SFP+; 8 x 1000Base-X SFP; 8 x 1000Base-T RJ-45; 1 x 1000Base-T (management); 1 x console RJ-45; 2 x USB Type-A |
| Performance | Firewall throughput: 20 Gbps; DPI throughput: 4.5 Gbps; IPS throughput: 11.5 Gbps; Anti-malware throughput: 5 Gbps; SSL throughput: 2 Gbps; VPN throughput: 11.5 Gbps |
| Concurrent Connections | 10,000,000 SPI; 2,000,000 DPI |
| VPN Support | 100,000 site-to-site tunnels; 2,000 IPSec VPN connections (max 10,000); 50 SSL VPN users (max 3,000) |
| Authentication | RADIUS, LDAP, Active Directory, XAUTH |
| Encryption | AES (128/192/256-bit), DES, 3DES, MD5, SHA-1, FIPS 140-2 |
| Compliance | FCC Class A, UL, TUV, ICSA Firewall & AV, RoHS, FIPS 140-2, REACH, VPNC certified |
| Operating System | SonicOS |
| Memory | 32 GB RAM |
| Power Supply | Dual hot-plug, 300W (200W operational) |
| Operating Temp. | 15°C to 40°C |
| Humidity Range | 10–90% non-condensing |
| MTBF | 21.28 years |
