Description
The SonicWall TZ470 is a next-generation firewall (NGFW) designed for small organizations and distributed enterprise branches that require high-performance security and connectivity. Built on SonicOS 7.0, it combines advanced networking and security features with an intuitive interface, delivering streamlined protection and control.
With 8x1GbE and 2x2.5GbE interfaces, the TZ470 provides high-speed connectivity and supports up to 3.5 Gbps firewall inspection throughput. It includes features such as SD-WAN, Zero-Touch Deployment, and single-pane-of-glass management, making it simple to deploy and manage across multiple sites.
This appliance-only SKU does not include security services or subscriptions, but can be easily upgraded with SonicWall’s subscription-based protection suites to deliver comprehensive gateway security, including Capture ATP sandboxing, intrusion prevention, gateway anti-virus, content filtering, and more.
Ideal for SMBs and SD-Branch deployments, the TZ470 offers enterprise-class security in a compact desktop form factor with industry-leading price-to-performance value.
| Feature | Specification |
|---|---|
| Product Type | Next-Generation Firewall (NGFW) |
| Model | SonicWall TZ470 |
| Form Factor | Desktop |
| Operating System | SonicOS 7.0 |

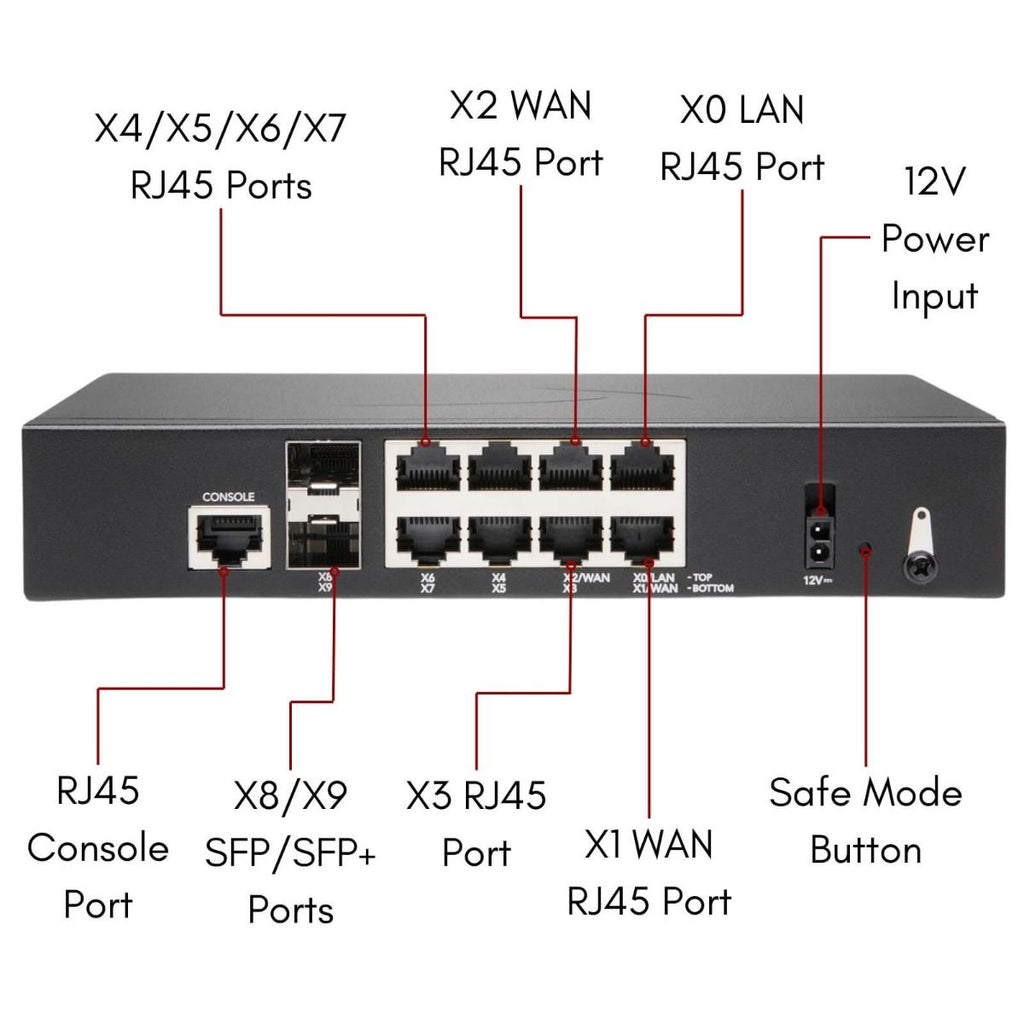

| Interfaces | 8x1GbE, 2x2.5GbE, 2x USB 3.0, 1x Console Port |
| Firewall Inspection Throughput | 3.5 Gbps |
| Threat Prevention Throughput | 1.5 Gbps |
| Application Inspection Throughput | 2 Gbps |
| IPS Throughput | 2 Gbps |
| Anti-Malware Throughput | 1.5 Gbps |
| TLS/SSL Inspection (DPI-SSL) | 600 Mbps |
| VPN Throughput (IPSec) | 1.5 Gbps |
| Max Connections (SPI) | 1,000,000 |
| Max Connections (DPI) | 250,000 |
| Max Connections (DPI SSL) | 35,000 |
| Concurrent VPN Tunnels | 150 |
| SSL VPN Licenses (Max) | 2 (up to 150) |
| Management Options | Network Security Manager, Web UI, CLI, REST APIs, SonicExpress App |
| High Availability | Supported (Active/Standby with stateful sync) |
| Dimensions (H x W x D) | 3.5 x 13.5 x 19 cm (1.38 x 5.3 x 7.5 in) |
| Weight | 0.83 kg / 1.82 lbs |
| Power Supply | External 36W |
| Compliance/Certifications | FCC, CE, RoHS, UL, VCCI, TUV/GS |
