Description

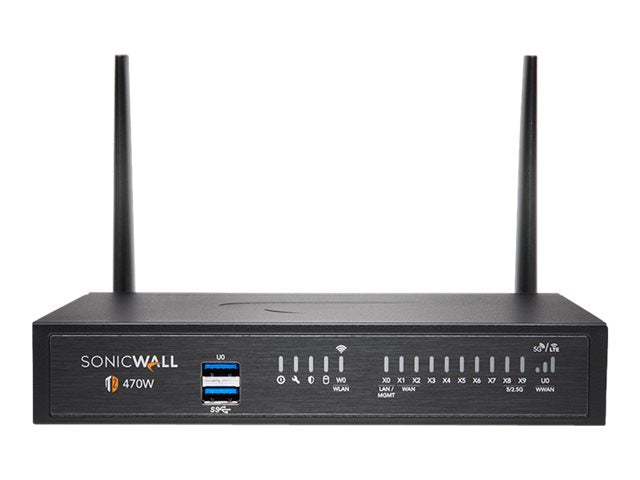

The SonicWall TZ470W Advanced Edition is a high-performance next-generation firewall (NGFW) designed for small to mid-sized organizations and distributed enterprises. With Wi-Fi 5 support, 10/5/2.5/1 GbE interfaces, and SonicWall’s SonicOS 7.0 operating system, the TZ470W delivers enterprise-grade protection in a compact desktop form factor.
It integrates advanced security services including Capture Advanced Threat Protection (ATP) with Real-Time Deep Memory Inspection (RTDMI™), Gateway Anti-Virus, Intrusion Prevention, Application Control, and Content Filtering Service. Built for simplified deployment and centralized management, it supports Zero-Touch Deployment, Secure SD-WAN, and single-pane-of-glass management for switches and access points.
This Advanced Edition includes 1 Year of TotalSecure, combining the appliance with essential security services for comprehensive protection against evolving threats.
| Category | Specification |
|---|---|
| Device Type | Security appliance |
| Edition | Advanced Edition with 1 Year TotalSecure |
| Form Factor | Desktop |
| Wireless Standard | Wi-Fi 5 (802.11ac Wave 2) |
| Interfaces | 6 x 1 GbE RJ-45, 2 x 1 GbE RJ-45 (WAN), 2 x 2.5 GbE SFP+, 2 x USB 3.0, 1 x Console |
| Throughput | Firewall: 3.5 Gbps; Threat Prevention: 1.5 Gbps; Application: 2 Gbps; IPS: 2 Gbps; Anti-Malware: 1.5 Gbps; TLS/SSL Decryption: 600 Mbps; VPN: 1.5 Gbps |
| Connections | 1,000,000 SPI; 250,000 DPI; 35,000 DPI-SSL |
| VPN Support | 150 Site-to-Site Tunnels; 5 IPSec Clients (max 200); 2 SSL VPN (max 150) |
| Management | Zero-Touch Deployment, Secure SD-WAN, SonicExpress App, SNMP/CLI/HTTPS |
| Storage | Built-in and expandable up to 256 GB |
| Security Services | Capture ATP with RTDMI™, Gateway AV, IPS, Application Control, Content Filtering, Anti-Spyware |
| OS Provided | SonicOS 7.0 |
| Power | External adapter, 36 W, redundant option supported |
| Dimensions (W x D x H) | 7.5 x 5.3 x 1.4 in |
| Weight | 30.68 oz (shipping: 3.33 lbs) |
| Compliance | FCC Class B, UL, ICSA Firewall/AV Certified, FIPS 140-2 Level 2, RoHS, WEEE |
| Operating Temp. | 32 – 104 °F |
| Humidity | 5 – 95% non-condensing |
