Description

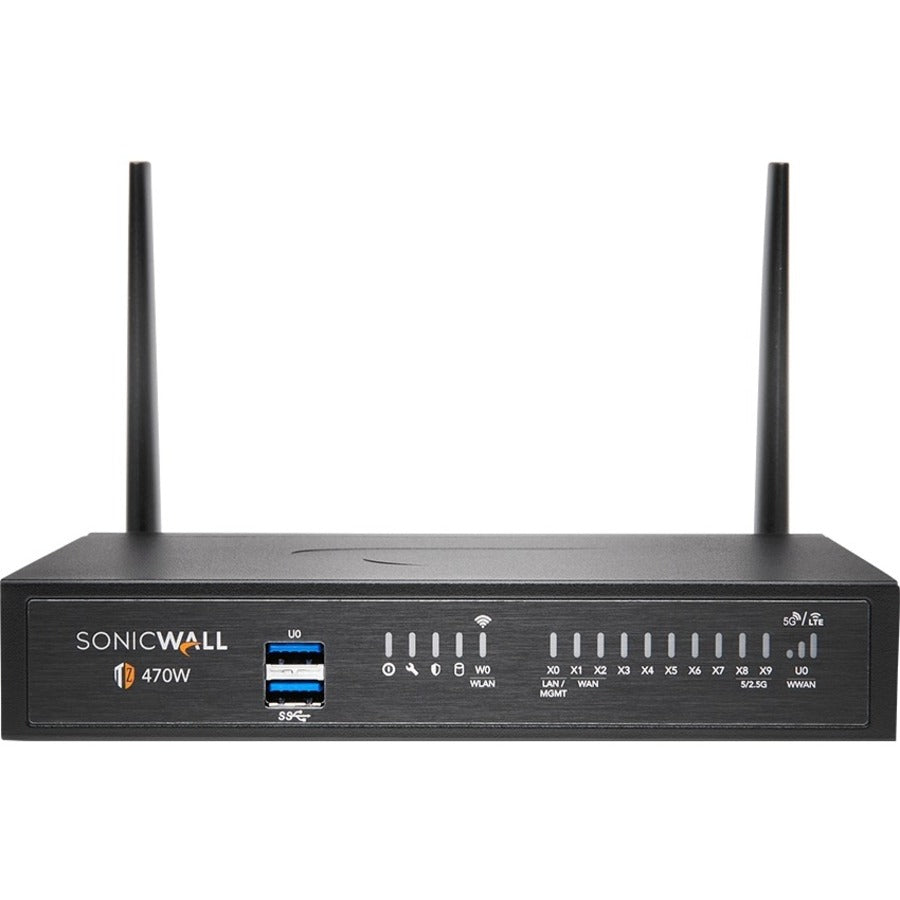

The SonicWall TZ470W Advanced Edition is a next-generation firewall with integrated Wi-Fi 5, purpose-built for small to medium-sized businesses (SMBs) and branch offices that demand enterprise-grade protection without enterprise-level complexity.
Equipped with Zero-Touch Deployment and centralized management, the TZ470W simplifies setup and operations, ensuring minimal overhead for IT teams. Advanced protection is delivered through multi-engine Capture Advanced Threat Protection (ATP) with Real-Time Deep Memory Inspection (RTDMI), enabling defense against zero-day threats, encrypted malware, and sophisticated intrusions.
With firewall throughput of up to 3.5 Gbps and comprehensive support for advanced networking features—including SD-WAN, SSL VPN, and VLAN trunking—the TZ470W provides robust performance. Businesses benefit from seamless scalability, with support for up to 32 manageable access points, 1 million SPI connections, and advanced wireless features such as beamforming, band steering, and airtime fairness.
Designed with both security and efficiency in mind, the SonicWall TZ470W Advanced Edition delivers reliable, high-performance protection to keep your network, data, and reputation secure.
| Specification | Details |
|---|---|
| Product Name | SonicWall TZ470W Advanced Edition |
| SKU | 02-SSC-6811 |
| Form Factor | Desktop, wireless-enabled |
| Wireless Standard | Wi-Fi 5 (802.11ac Wave 2) |
| OS | SonicOS 7.0 |
| Security Services | Capture ATP with RTDMI, Advanced Protection Suite |
| Deployment | Zero-Touch Deployment |
| Management | Centralized, simplified console |
| Firewall Throughput | 3.5 Gbps |
| Threat Prevention Throughput | 1.5 Gbps |
| IPS Throughput | 2 Gbps |
| Application Throughput | 2 Gbps |
| Anti-Malware Throughput | 1.5 Gbps |
| SSL/TLS Decryption Throughput | 600 Mbps |
| VPN Throughput (IPSec) | 1.5 Gbps |
| Max SPI Connections | 1,000,000 |
| Max DPI Connections | 250,000 |
| Max SSL VPN Licenses | 150 |
| Max IPSec VPN Clients | 200 |
| Manageable Access Points | 32 |
| Interfaces | 6 x 1GbE RJ-45, 2 x 1GbE WAN RJ-45, 2 x 2.5GbE SFP+, 2 x USB 3.0, 1 x Console RJ-45 |
| Wireless Bands | 2.4 GHz and 5 GHz |
| Dimensions (W x D x H) | 7.5 x 5.3 x 1.4 in |
| Weight | 30.68 oz |
| Power Consumption | 21.98 W (36 W power adapter) |
| MTBF | 24.1 years |
| Compliance | FCC Class B, UL, ICSA Certified, RoHS, FIPS 140-2 Level 2, Common Criteria |
| Operating Temperature | 32 °F to 104 °F |
| Humidity Range | 5 – 95% (non-condensing) |
