Description

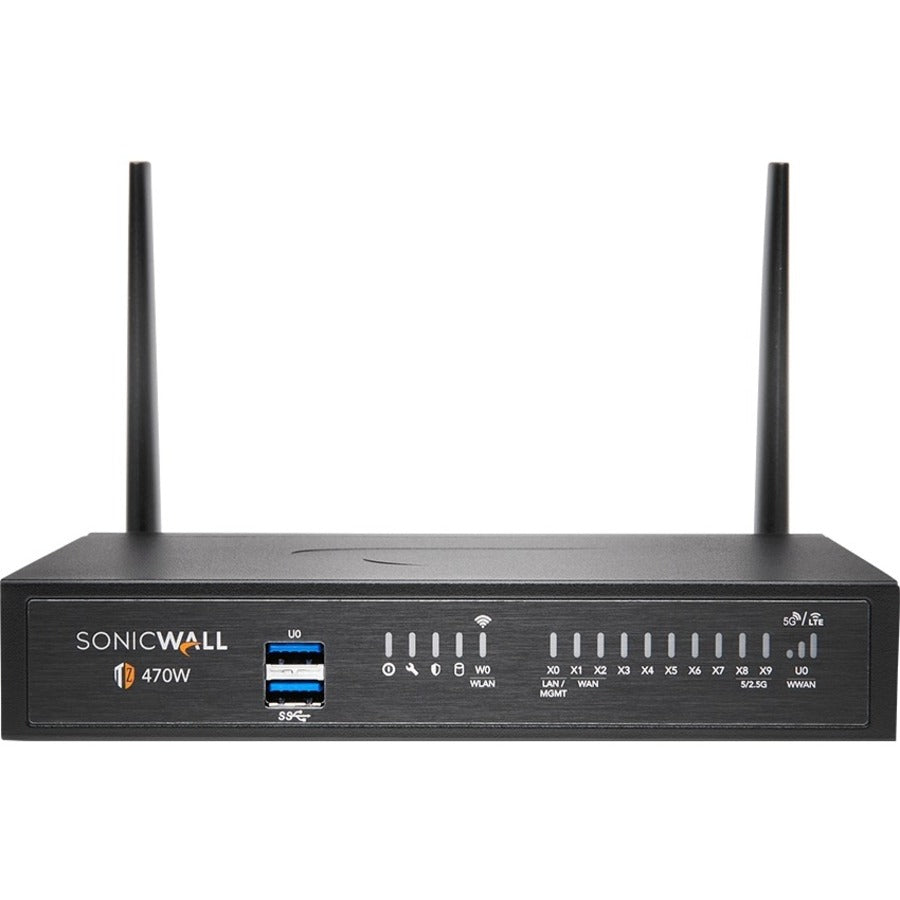

The SonicWall TZ470W Threat Edition is a next-generation firewall (NGFW) designed for small to mid-sized businesses and distributed enterprises. With integrated Wi-Fi 5 and high-performance security features, it provides enterprise-class protection in a compact desktop form factor. Powered by SonicOS 7.0, the TZ470W delivers advanced threat prevention, secure SD-WAN, TLS 1.3 support, and simplified Zero-Touch Deployment for streamlined rollout.
This Threat Edition bundle includes 1 year of TotalSecure services, combining gateway security, intrusion prevention, Capture Advanced Threat Protection (ATP) with Real-Time Deep Memory Inspection (RTDMI), content filtering, and 24x7 support. With up to 3.5 Gbps firewall throughput, multi-gigabit interfaces, and seamless integration with SonicWall Switches, SonicWave Access Points, and Capture Client, the TZ470W ensures reliable, scalable, and comprehensive protection against evolving cyber threats.
| Category | Details |
|---|---|
| Device Type | Network Security/Firewall Appliance |
| Edition | Threat Edition with 1-Year TotalSecure |
| Form Factor | Desktop |
| Wireless Standard | Wi-Fi 5 (802.11ac Wave 2) |
| Interfaces | 6 × 1 GbE RJ-45, 2 × 1 GbE WAN, 2 × 2.5 GbE SFP+, 2 × USB 3.0, 1 × Console |
| Firewall Throughput | 3.5 Gbps |
| Threat Prevention | 1.5 Gbps |
| Application Throughput | 2 Gbps |
| VPN Throughput | 1.5 Gbps (IPSec) |
| SSL/TLS Inspection | 600 Mbps |
| Concurrent Connections | 1,000,000 SPI, 250,000 DPI, 35,000 DPI-SSL |
| VPN Capacity | 150 site-to-site tunnels, 200 IPSec clients, 150 SSL VPN (2 included) |
| Wireless Frequency | 2.4 GHz and 5 GHz |
| Expansion | Built-in and expandable storage; redundant power supported |
| Operating System | SonicOS 7.0 |
| Bundled Security | Gateway AV/AS, IPS, CFS, Capture ATP w/ RTDMI, 24x7 Support (1 year) |
| Dimensions (W×D×H) | 7.5 × 5.3 × 1.4 in |
| Weight | 30.68 oz (shipping: 3.33 lbs) |
| Compliance | FCC, UL, TUV, ICSA, FIPS 140-2 Level 2, RoHS, WEEE, REACH, Common Criteria |
| MTBF | 24.1 years |
| Power | 36W external adapter, 21.98W operational consumption |
| Environmental | Operating temp: 32–104 °F; Humidity: 5–95% (non-condensing) |
